Automatic Transmission/Transaxle: Service and Repair
TRANSAXLE REMOVAL AND INSTALLATIONTools Required:
^ J 28467-A Universal Support Fixture
^ J 28467-89 Universal Support Fixture Adapters
^ J 28712 Drive Axle Boot Protectors
REMOVE OR DISCONNECT
1. Negative (-) battery cable.
2. TV cable adjustment cover and TV cable from accelerator cable at top of transaxle.
3. Shift select cable adjustment nut from end of shift select cable and remove shift select cable from manual select cable joint.
4. One retaining clip and shift select cable from bracket at top of transaxle case.
^ Loosen accelerator cable adjustment nuts.
5. Accelerator cable from bracket at top of transaxle.
6. Two bolts and engine harness bracket from rear of transaxle case.
7. Electrical connectors from vehicle speed sensor (VSS), shift solenoid harness and park/neutral position (PNP) switch.
8. One clip and speedometer cable from speedometer driven gear case.
9. Two clamps, inlet and outlet fluid cooler hoses from cooler pipes.
IMPORTANT
^ Plug the fluid cooler hoses to prevent transaxle cooler leakage.
10. Electrical connections from starter motor.
11. Two bolts and starter motor from transaxle.
12. One upper rear transaxle mount-to-bulkhead bolt.
13. One through bolt and nut from rear transaxle mount.
14. Two upper transaxle-to-engine retaining bolts from transaxle.
15. One bolt and negative (-) battery cable from transaxle case.
^ Install and support engine using a J 28467-A with a J 28467-89.
^ Raise and suitably support vehicle.
^ Place a drain pan or suitable container under transaxle Fluid pan.
16. Transaxle drain plug and drain transaxle fluid.
17. Ten retaining clips right and left splash shields from vehicle.
18. Right and left ball stud nuts and bolts and separate control arms from steering knuckles.
NOTICE: A J 28712 should be installed on any drive axle prior to service procedures on or near the drive axle. Failure to observe this can result in boot damage and possible joint failure.
^ Install the J 28712 on the differential-side joints and the wheel-side joints of both drive axles.
19. Right and left drive axle assemblies from vehicle.

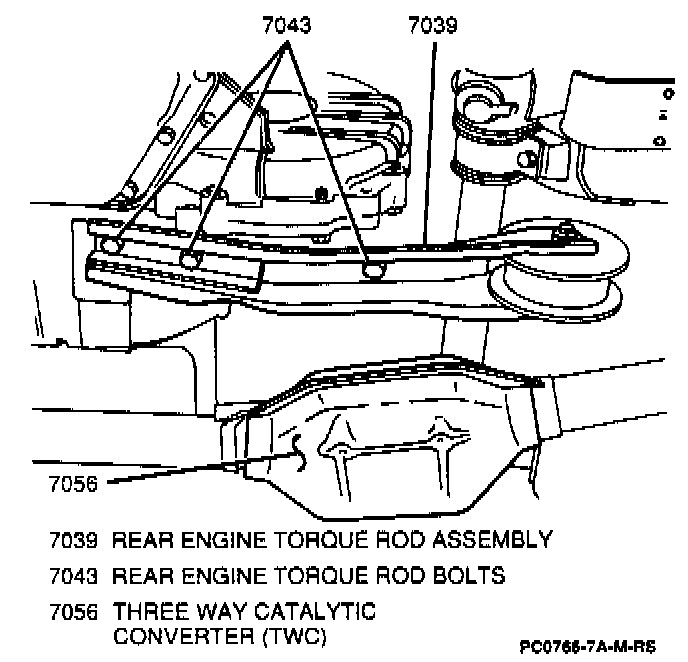

20. Three bolts and rear engine torque rod from transaxle case.
21. Two bolts and flywheel cover from transaxle case housing.
22. Six flywheel-to-torque converter bolts from flywheel. To lock flywheel, engage a standard flat-blade screwdriver with the flywheel ring gear through the slot provided at the under side of the transaxle case housing.
23. Muffler mounting from rear engine mount bracket exhaust hanger.
24. One lower rear engine mount-to-bulkhead bolt and rear engine mount from vehicle.
25. Two nuts, two bolts and rear engine mount bracket from transaxle.
^ Lower vehicle.
^ Lower engine slightly at the J 28467-A.
^ Raise and suitably support vehicle.
^ Support transaxle with a suitable hydraulic jack.

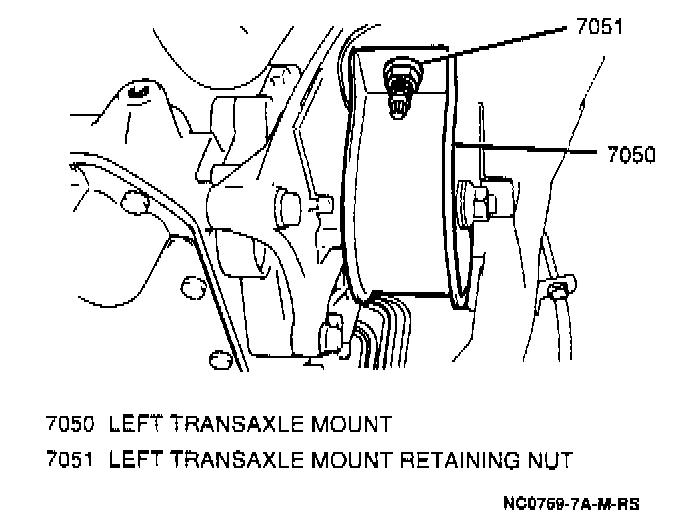

26. Two retaining nuts from left transaxle mount.
27. Two bolts and left transaxle mount and bracket from transaxle.
28. One lower engine-to-transaxle retaining bolt.
29. Transaxle from engine by carefully moving transaxle away from engine toward the left side of the engine compartment and very slowly lowering the transmission jack making sure no obstructions exist.
INSPECT
^ For inspection and overhaul procedures.
NOTICE: Transaxle fluid cooler flushing must be performed when a transaxle is removed for service. The flushing procedure should be performed after the installation of the overhauled or replacement assembly. Failure to flush the system may cause damage to the system and its components.
IMPORTANT
^ Before installing the transaxle assembly, these steps and precautions must be followed:
A. Apply grease around the cup at the center of the torque converter. This will ensure ease of assembly.

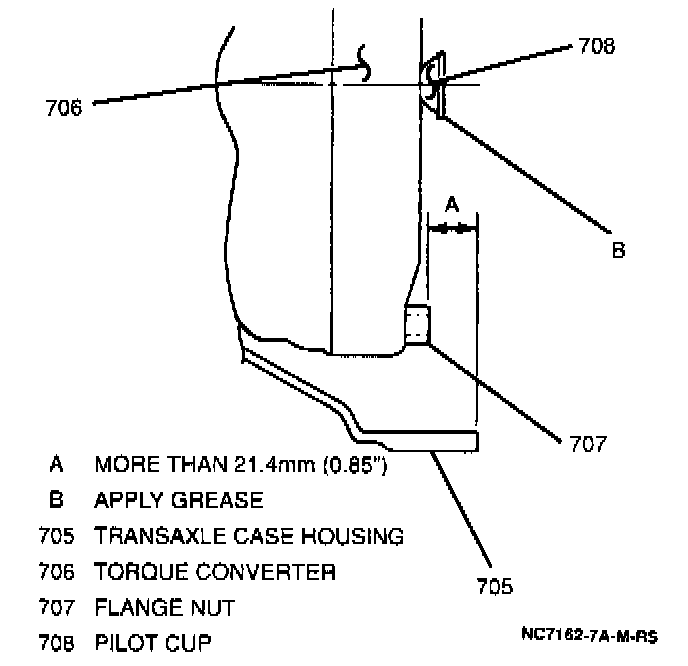

B. Measure the distance (A) shown in above figure. The distance should be more than 21.4 mm (0.85-inch). If it is less than 21.4 mm (0.85-inch), the torque converter is improperly installed. Remove the torque converter and make sure to properly seat the torque converter onto the input shaft.
INSTALL OR CONNECT
Tools Required:
^ J 28467-A Universal Support Fixture
^ J 28467-89 Universal Support Fixture Adapters
^ J 28712 Drive Axle Boot Protectors
1. Transaxle to engine block by carefully raising the transaxle using a suitable hydraulic jack and making sure no obstructions exist.
2. One lower engine-to-transaxle retaining bolt.
Tighten
^ Lower engine-to-transaxle retaining bolt to 55 N.m (40 lb.ft.).
3. Left transaxle mount and bracket to transaxle; secure with two bolts.
Tighten
^ Left transaxle mount bracket bolts to 55 N.m (40 lb.ft.).
4. Two retaining nuts to left transaxle mount.
Tighten
^ Left transaxle mount retaining nuts to 55 N.m (40 lb.ft.).
^ Remove hydraulic jack from under transaxle.
^ Lower vehicle.
^ Raise engine at the J 28467-A.
^ Raise and suitably support vehicle.
5. Rear engine mount bracket to transaxle; secure with two bolts and two nuts.
Tighten
^ Rear engine mount bracket bolts and nuts to 55 N.m (40 lb.ft.).
6. Rear engine mount to bulkhead; secure with one lower rear engine mount-to-bulkhead bolt.
Tighten
^ Lower rear engine mount-to-bulkhead bolt to 55 N.m (40 lb.ft.).
7. Muffler mounting to rear engine mount bracket exhaust hanger.
8. Six flywheel-to-torque converter bolts. To lock flywheel, engage a standard flat-blade screwdriver with the flywheel ring gear through the slot provided at the underside of the transaxle case housing.
Tighten
^ Flywheel-to-torque converter bolts to 19 N.m (14 lb.ft.).
9. Flywheel cover to transaxle case housing; secure with two bolts.
Tighten
^ Flywheel cover bolts to 10 N.m (89 lb.in.).
10. Rear engine torque rod assembly to transaxle case; secure with three bolts.
Tighten
^ Rear engine torque rod assembly bolts to 55 N.m (40 lb.ft.).
11. Right and left drive axle assemblies into vehicle.
^ Remove the J 28712 from the differential-side joints and wheel-side joints of both drive axles.
12. Right and left control arms to steering knuckles; secure with two ball stud nuts and bolts.
Tighten
^ Ball stud nuts and bolts to 60 N.m (44 lb.ft.).
13. Right and left splash shields to vehicle; secure with ten retaining clips.
14. Transaxle drain plug into transaxle fluid pan.
Tighten
^ Transaxle drain plug to 23 N.m (17 lb.ft.).
^ Lower vehicle.
^ Remove the J 28467-89 and the J 28467-A.
15. Negative (-) battery cable to transaxle case; secure with one bolt.
Tighten
^ Negative battery cable-to-transaxle case bolt to 15 N.m (11 lb.ft.).
16. Two upper transaxle-to-engine retaining bolts..
Tighten
^ Upper transaxle-to-engine retaining bolts to 55 N.m (40 lb.ft.).
17. One through bolt and nut to rear engine mount.
Tighten
^ Rear engine mount through bolt and nut to 55 N.m (40 lb.ft.).
18. One upper rear transaxle mount-to-bulkhead bolt.
Tighten
^ Upper rear transaxle mount-to-bulkhead bolt to 55 N.m (40 lb.ft.).
19. Starter motor to transaxle: secure with two bolts.
Tighten
^ Starter motor retaining bolts to 23 N.m (17 lb.ft.).
20. Electrical connections to starter motor.
21. Inlet and outlet fluid cooler hoses to fluid cooler pipes; secure with two clamps.
22. Speedometer cable into speedometer driven gear case; secure with speedometer driven gear case retaining clip.
23. Electrical connectors to VSS, shift solenoid wiring harness and PNP switch.
24. Engine wiring harness bracket to rear of transaxle case; secure with two bolts.
Tighten
^ Engine wiring harness bracket bolts to 16 N.m (12 lb.ft.).
25. Accelerator cable into bracket at top of transaxle case.
Tighten
^ Accelerator cable adjustment nuts.
26. Shift select cable into bracket at top of transaxle case; secure with one retaining clip.
27. Shift select cable end into manual select cable joint; secure with shift select cable adjustment nut.
ADJUST
^ Shift select cable.
28. TV cable to accelerator cable.
ADJUST
^ TV cable.
29. TV cable adjustment cover.
30. Negative (-) battery cable.
Tighten
^ Negative (-) battery cable-to-negative (-) battery terminal retainer to 15 N.m (11 lb.ft.).
Refill transaxle as necessary:
A. Place vehicle on a level surface.
B. Remove fluid level indicator.
C. Add approximately 1.5 liters (1.6 qts.) of Dexron� II automatic transmission fluid GM P/N 1051855, or equivalent, into fluid filler tube.
D. Install fluid level indicator into fluid filler tube.
E. Apply parking brake and block vehicle wheels.
F. With selector lever in "P" position, start engine. DO NOT race engine.
G. Run engine at idle and move selector lever through each range and return to the "P" position.
H. With engine running at idle, remove fluid level indicator from filler tube and wipe indicator off.
I. Reinsert fluid level indicator into filler tube making sure it is seated in its original position.
J. Remove the indicator and check the fluid level. The level should be between the "FULL HOT" and "LOW HOT" marks. If the level is below the "LOW HOT" mark, add fluid to bring the level to the "FULL HOT" mark. Bringing the fluid level from the "LOW HOT" mark to the "FULL HOT" mark requires 0.3 liters (0.3 qts.) of fluid. Use Dexron� II automatic transmission fluid GM P/N 1051855, or equivalent.
