1993
>>
Prizm L4-1600cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Grommets
>>
P302
P302

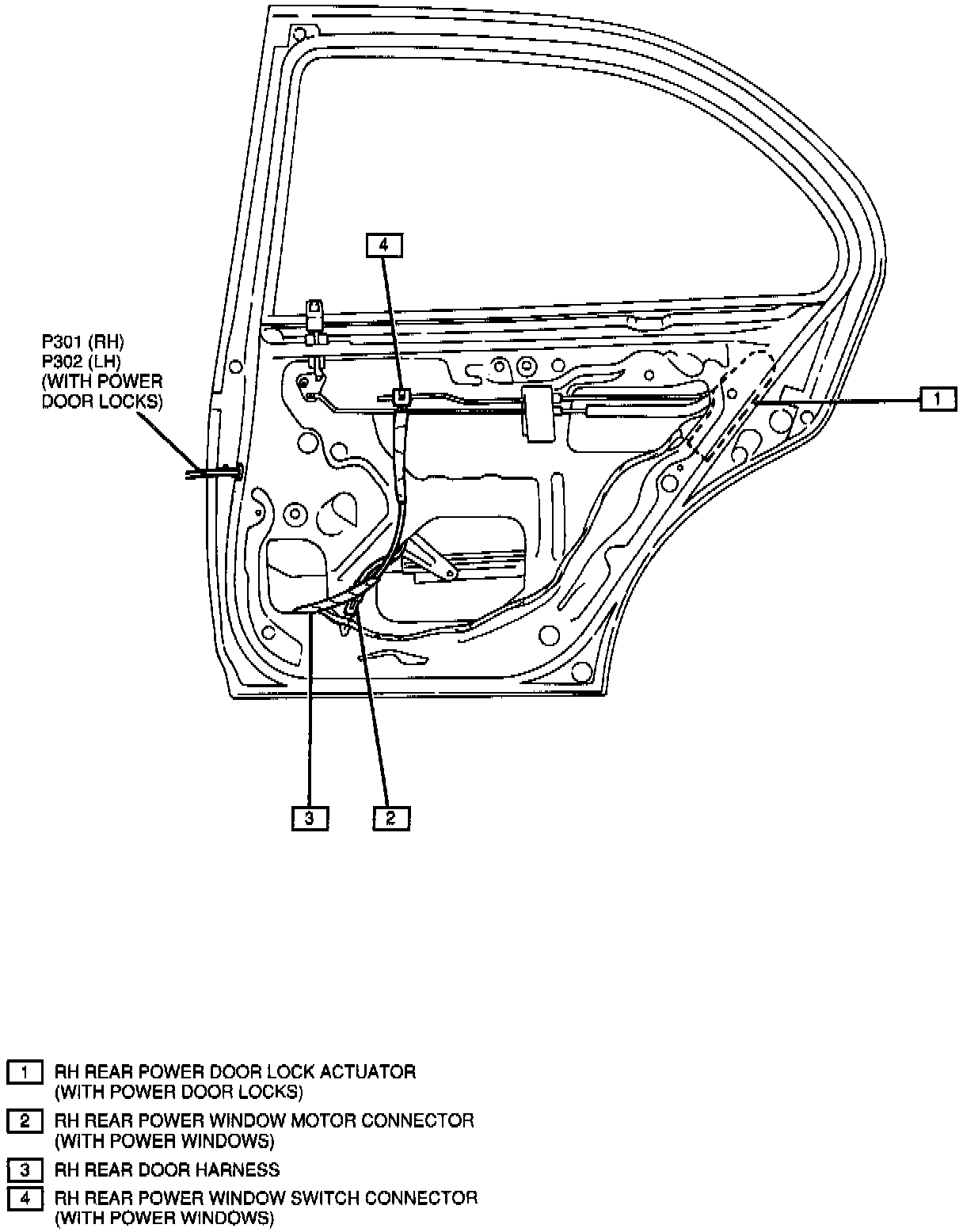

Figure A - RH Rear Door Wiring (LH Rear Door Wiring Similar):
