Operation CHARM
: Car repair manuals for everyone.
Home
>>
Geo
>>
1994
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>

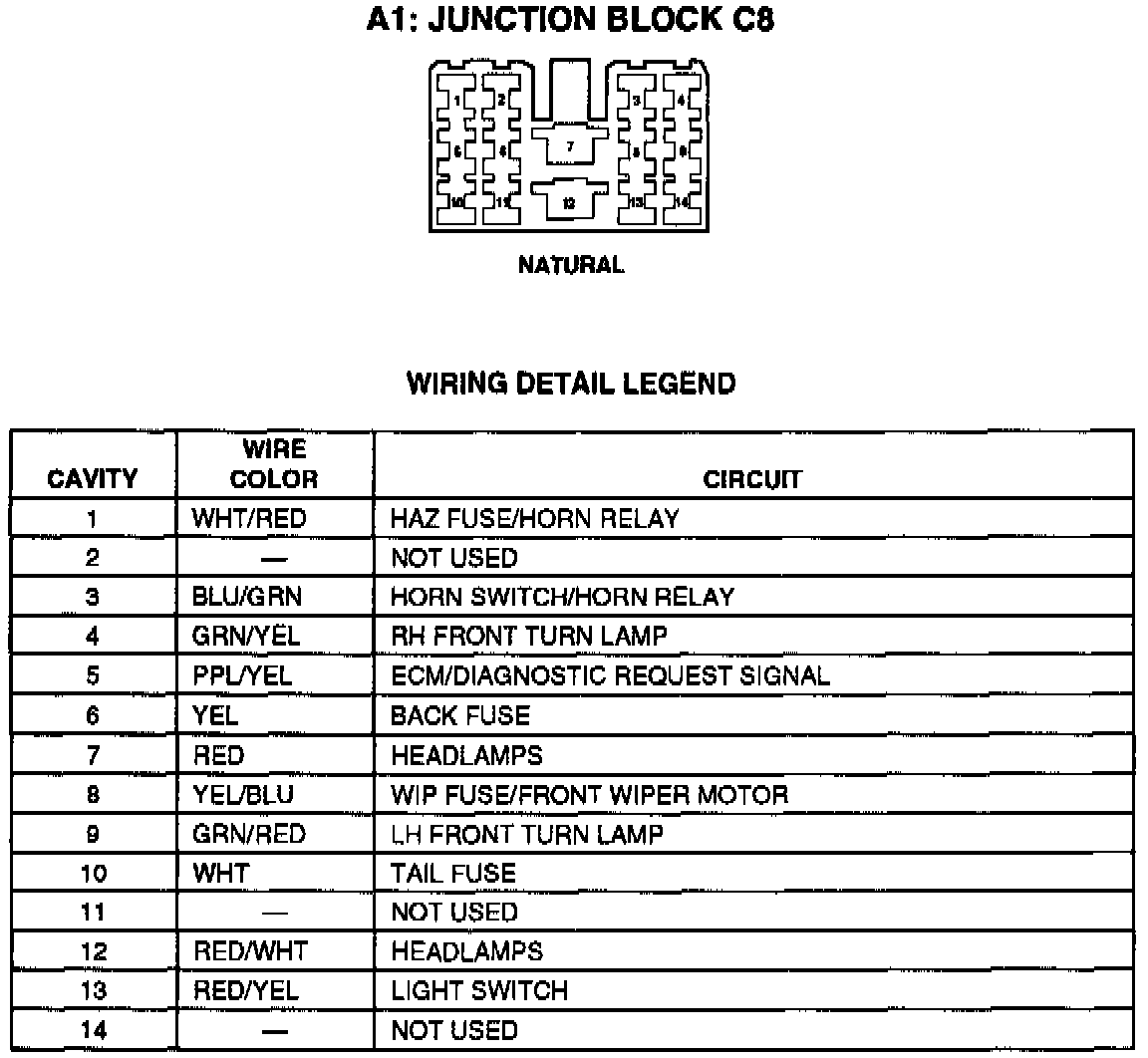

C8 (14 Cavities)
C8 (14 Cavities)
Harness Connector Face:
