Home >> Geo >> 1994 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G105, G106, G202 and G400

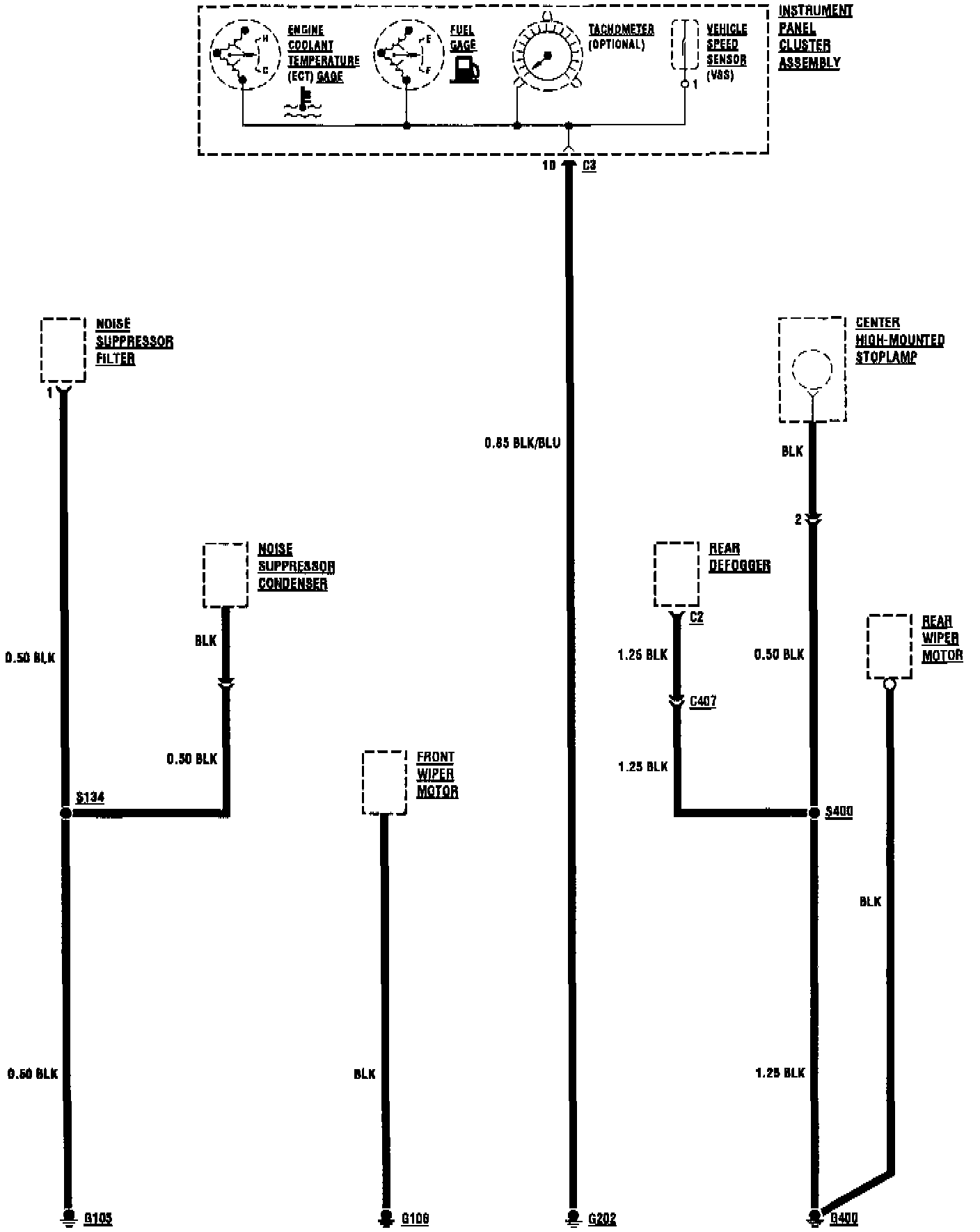

G105, G106, G202 and G400

Ground Distribution:
