Electrical Diagrams

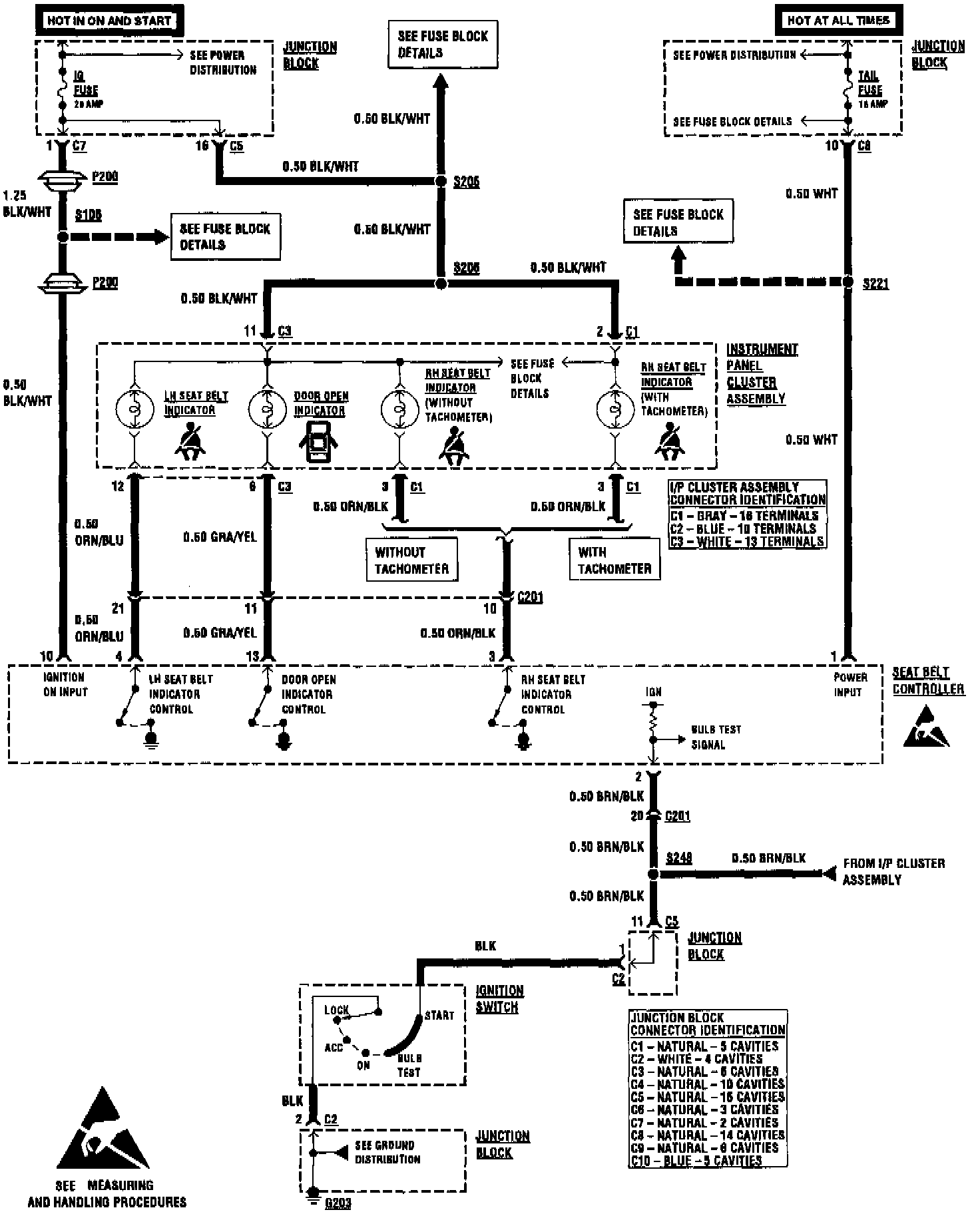

Automatic Seat Belts Circuit - Part 1 Of 3:
Automatic Seat Belts Circuit - Part 2 Of 3:
Automatic Seat Belts Circuit - Part 3 Of 3:
