1994
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Charts
>>

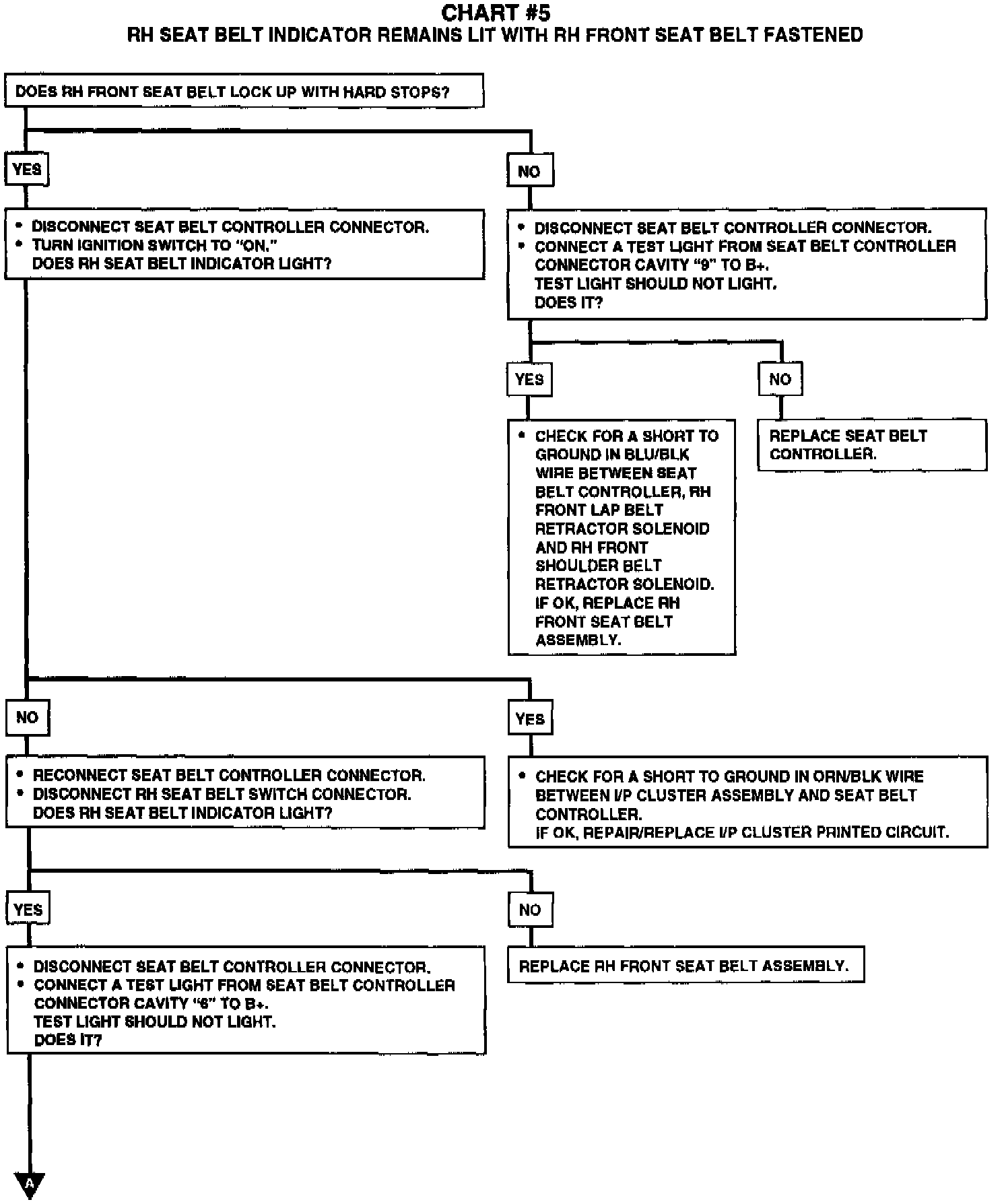

Chart 5 RH Belt Indicator Remains Lit With RH Belt Fastened
Chart 5 RH Belt Indicator Remains Lit With RH Belt Fastened
Diagnostic Chart - Part 1 Of 2:
Diagnostic Chart - Part 2 Of 2:
