Home >> Geo >> 1994 >> Prizm L4-1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> System Diagram >> Stop Switch, Module & Control Actuator

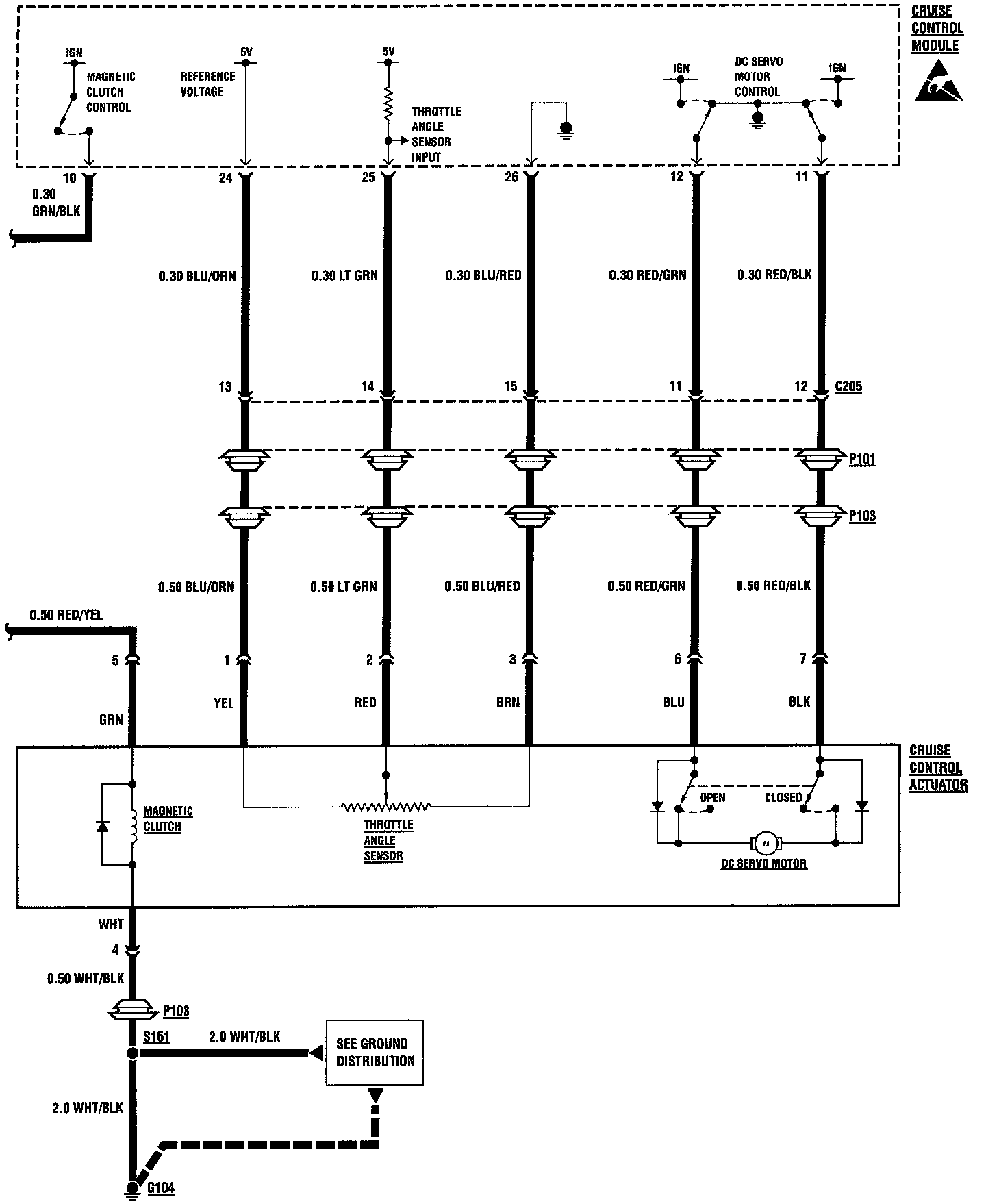

Stop Switch, Module & Control Actuator

Cruise Control:



Cruise Control Continued:
