Part 1 of 2

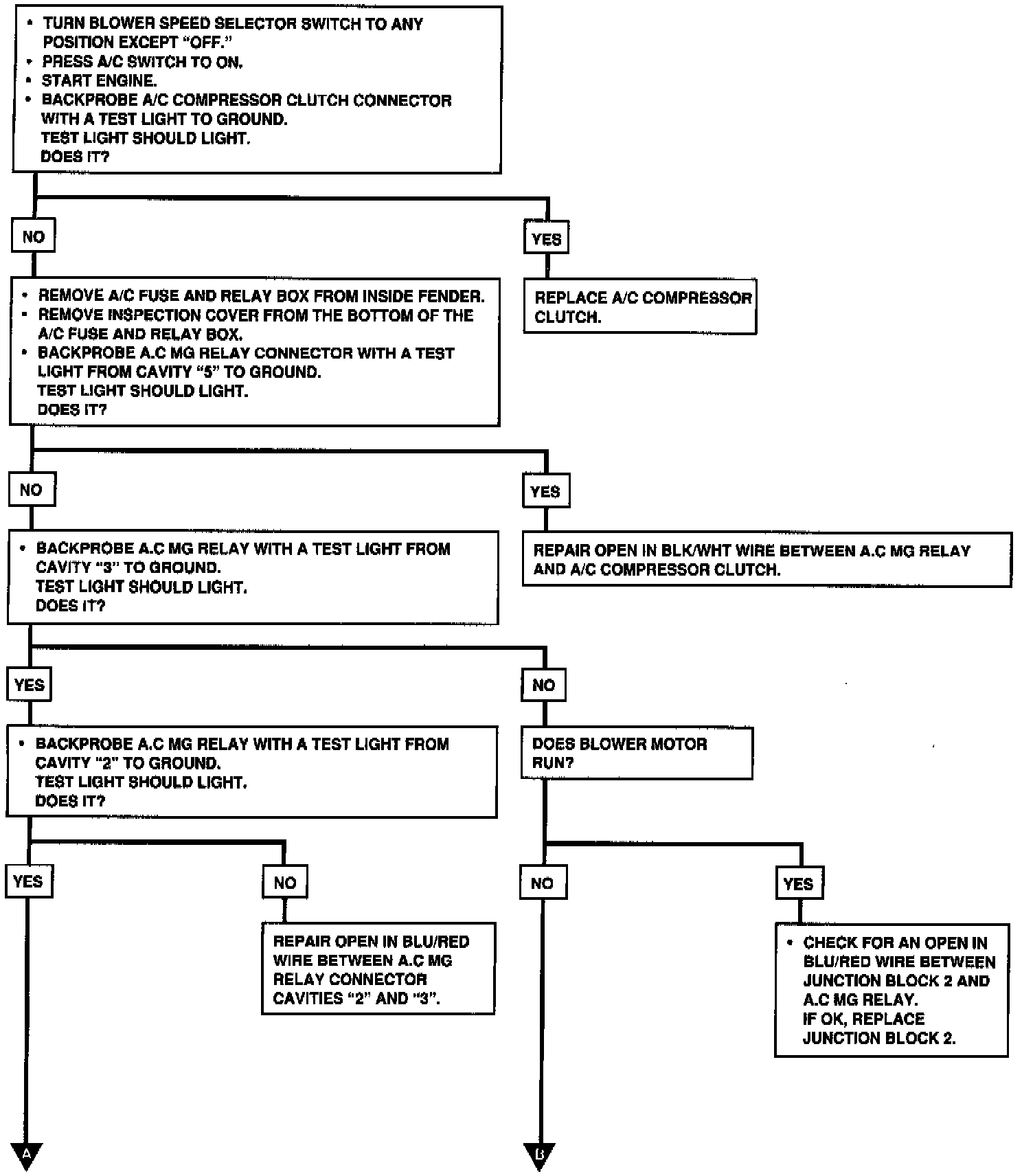

Chart #1 - A/C Compressor Clutch Never Engages:

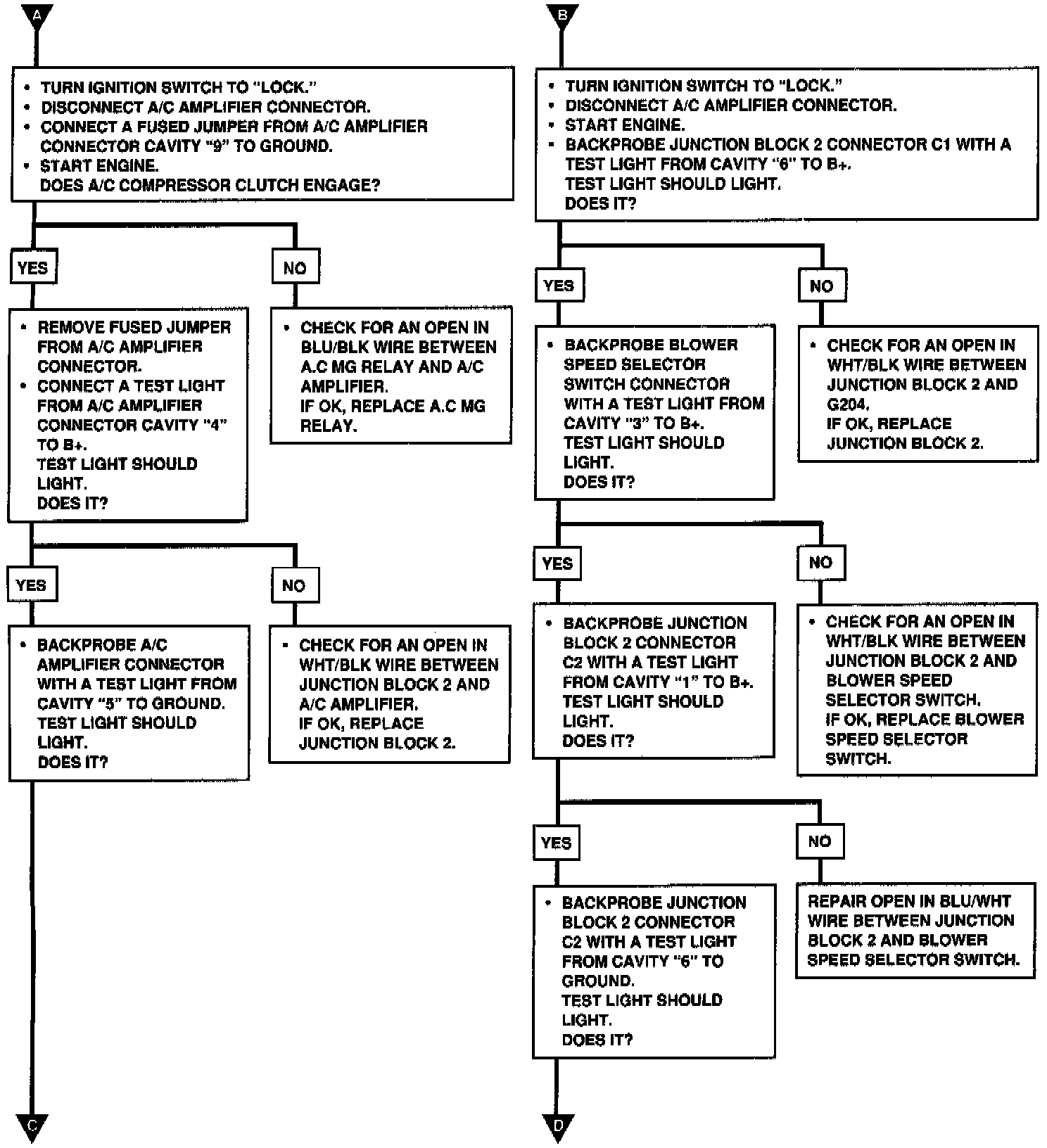

Chart #1 Continued - A/C Compressor Clutch Never Engages:
