Home >> Geo >> 1994 >> Prizm L4-1.6L DOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Junction Block 3 >> C1

C1

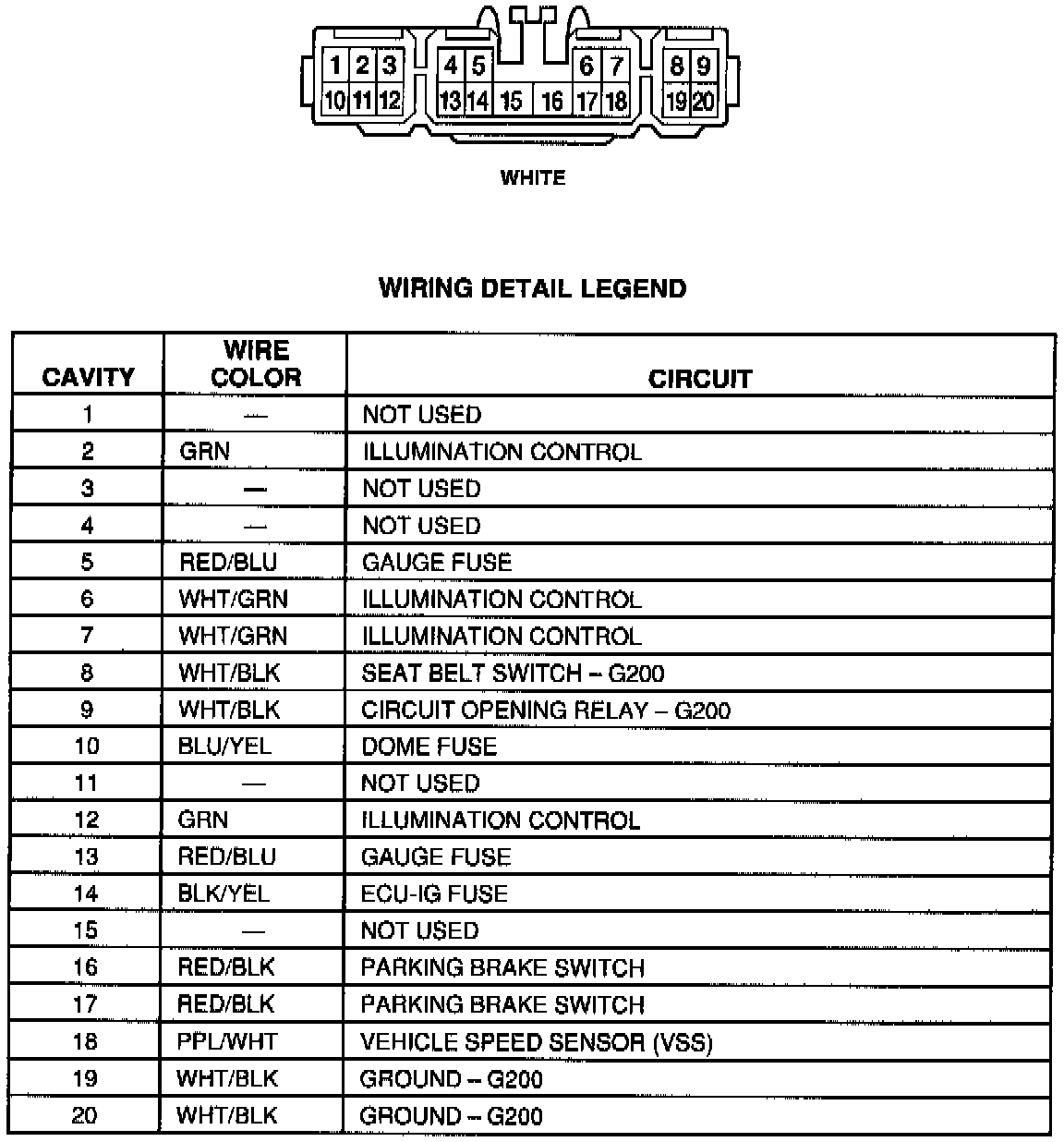

A1: Junction Block 3-C1:
