Home >> Geo >> 1994 >> Prizm L4-1.6L DOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cruise Control >> Cruise Control Module >> Testing and Inspection

Cruise Control Module: Testing and Inspection

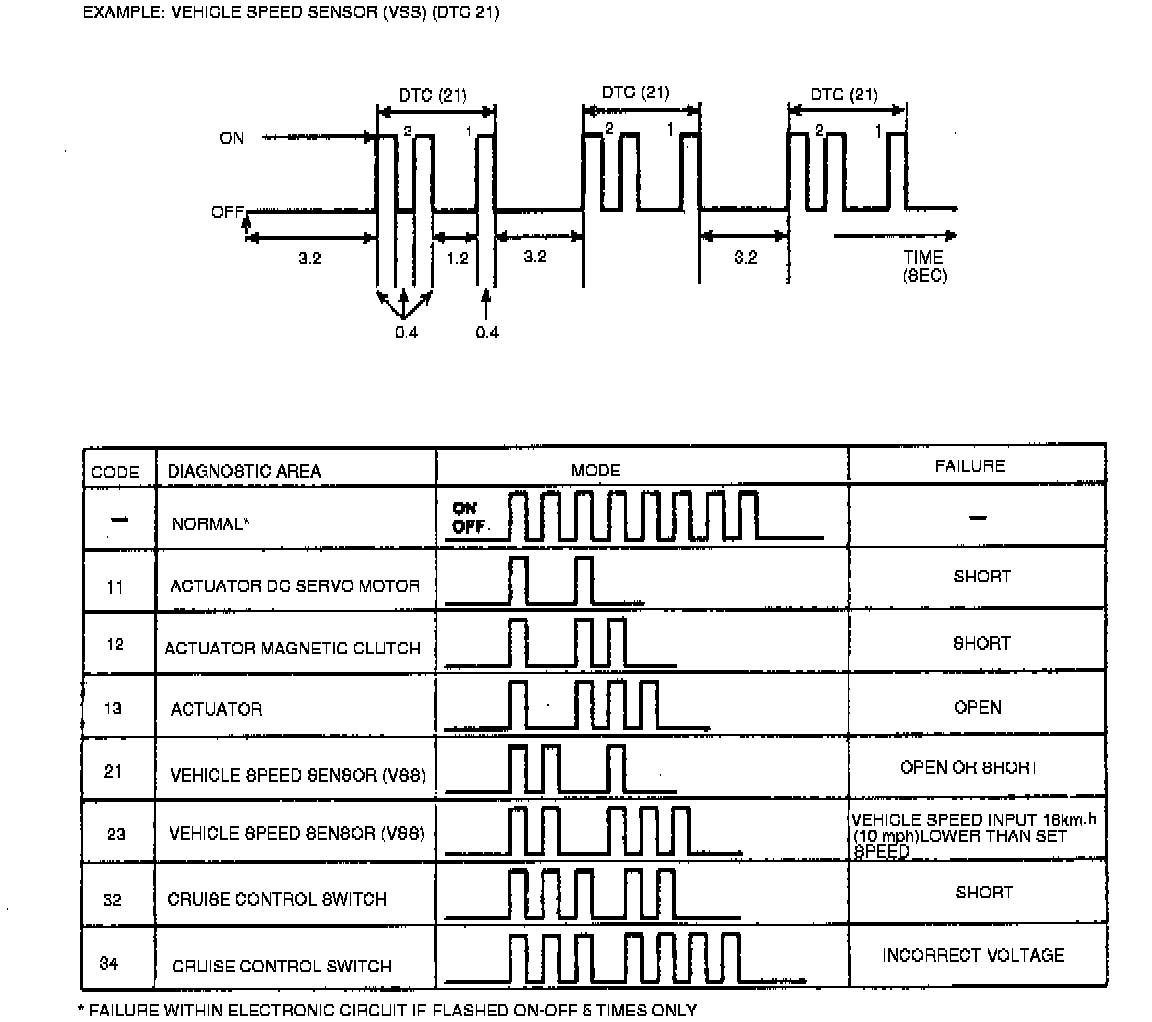

Fig. 3 Cruise Control Module Diagnostic Trouble Code Chart.:
