Cruise Control

Code 12: Over voltage on magnetic clutch circuit part 1 thru 3

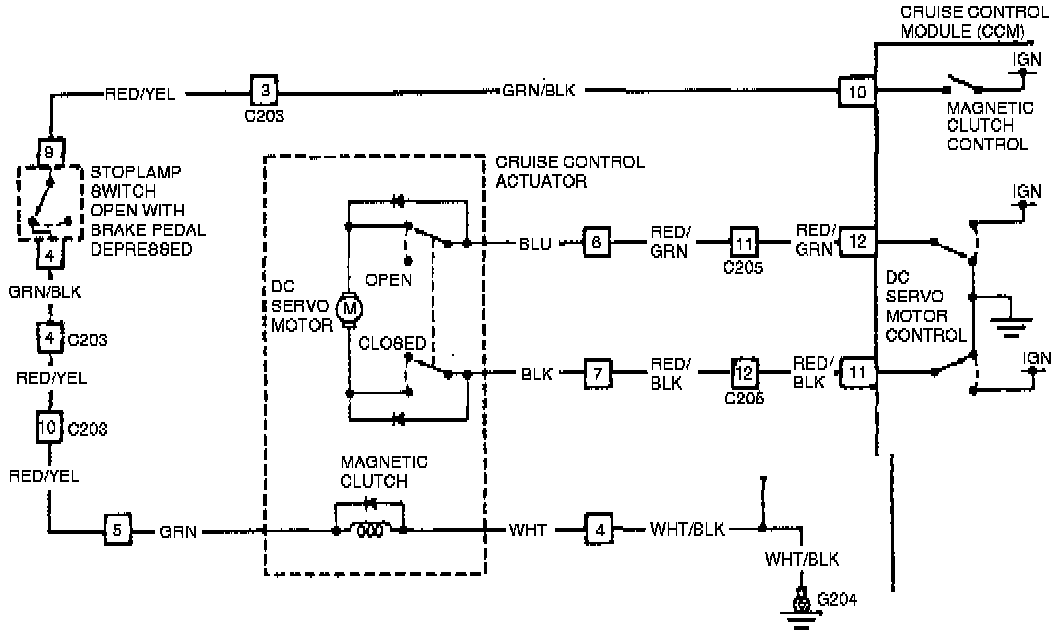

Fig. 17 Code 12: Over Voltage On Magnetic Clutch Circuit (Part 1 Of 3).:

Fig. 17 Code 12: Over Voltage On Magnetic Clutch Circuit (Part 2 Of 3).:

Fig. 17 Code 12: Over Voltage On Magnetic Clutch Circuit (Part 3 Of 3).:
