DTC 23

Code 23: Vehicle speed drops more than 10 Mph under set speed part 1 thru 4

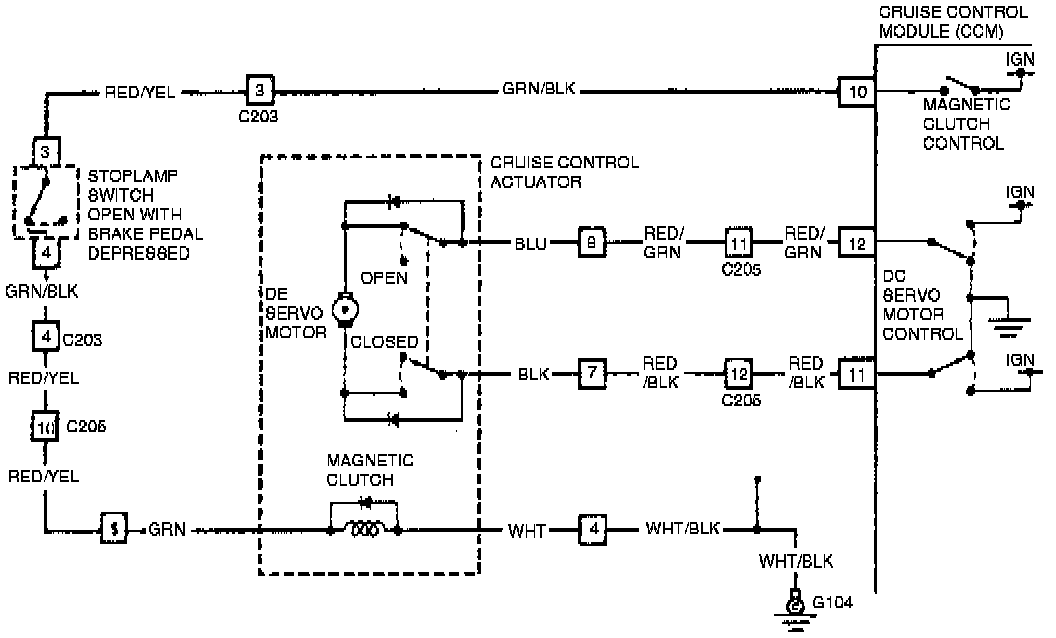

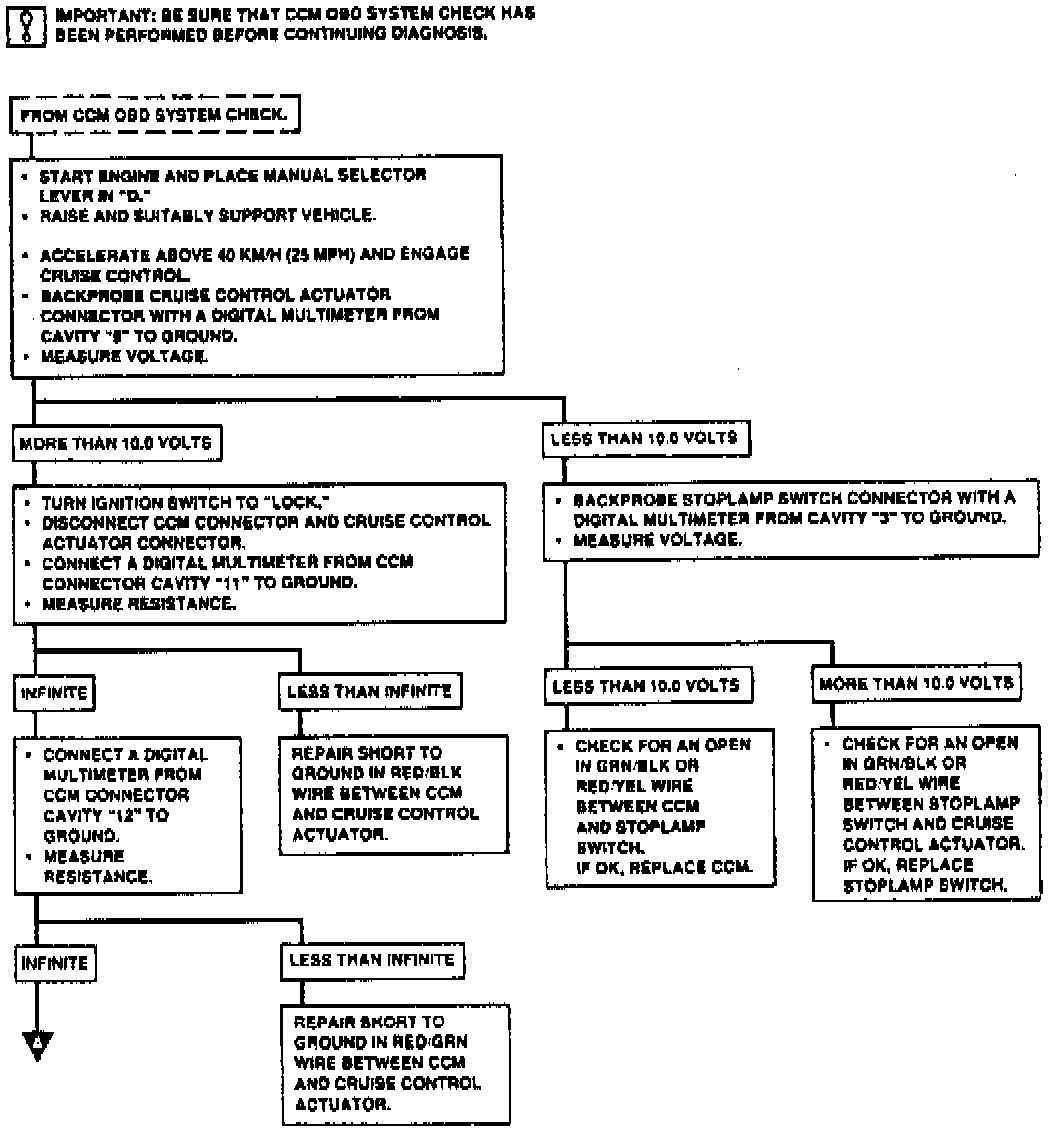

Fig. 20 Code 23: Vehicle Speed Drops More Than 10 Mph Under Set Speed (Part 1 Of 4).:

Fig. 20 Code 23: Vehicle Speed Drops More Than 10 Mph Under Set Speed (Part 2 Of 4).:

Fig. 20 Code 23: Vehicle Speed Drops More Than 10 Mph Under Set Speed (Part 3 Of 4).:

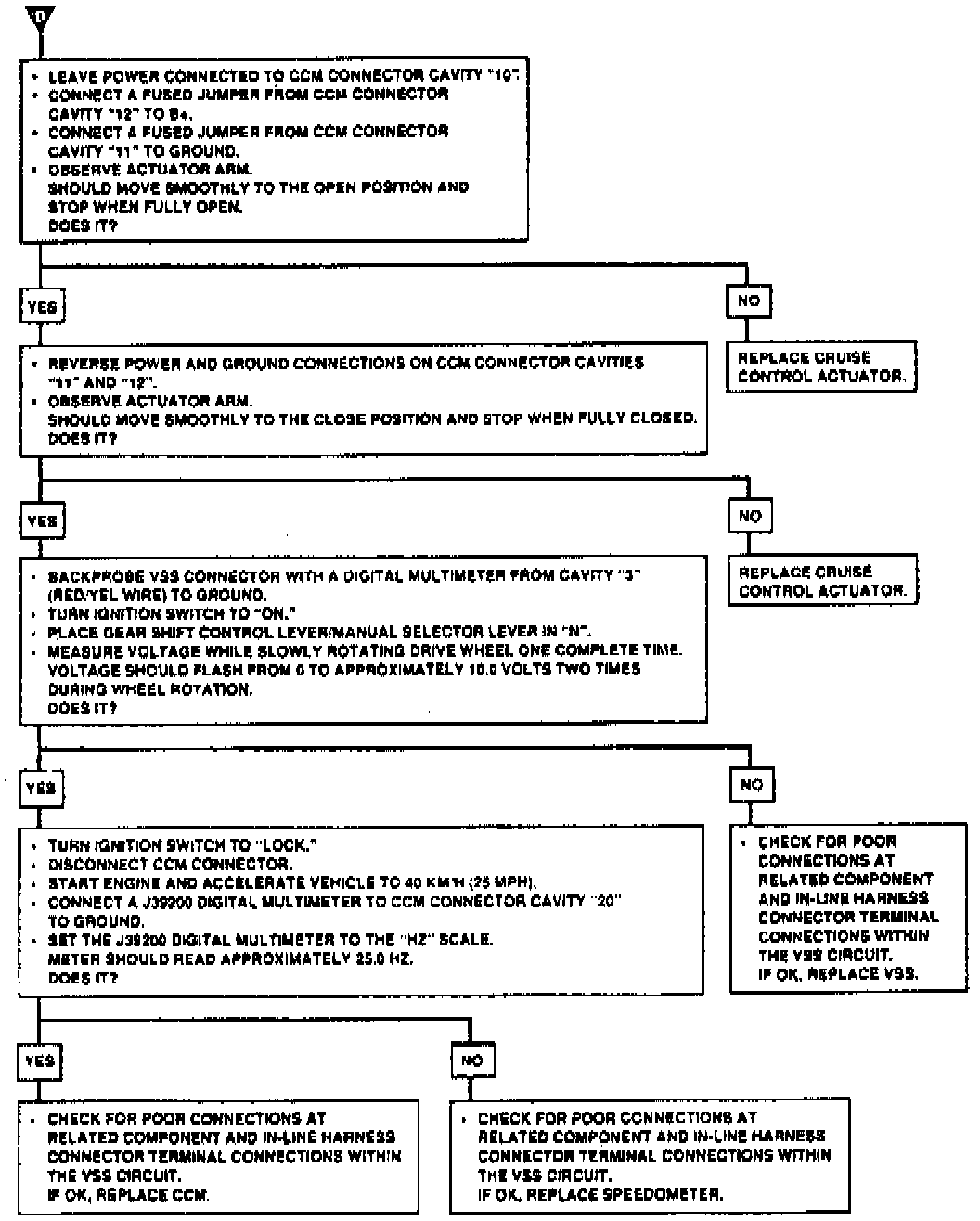

Fig. 20 Code 23: Vehicle Speed Drops More Than 10 Mph Under Set Speed (Part 4 Of 4).:
