DTC 34

Code 34: Abnormal Signal From Cruise Control Switch Part 1 thru 3

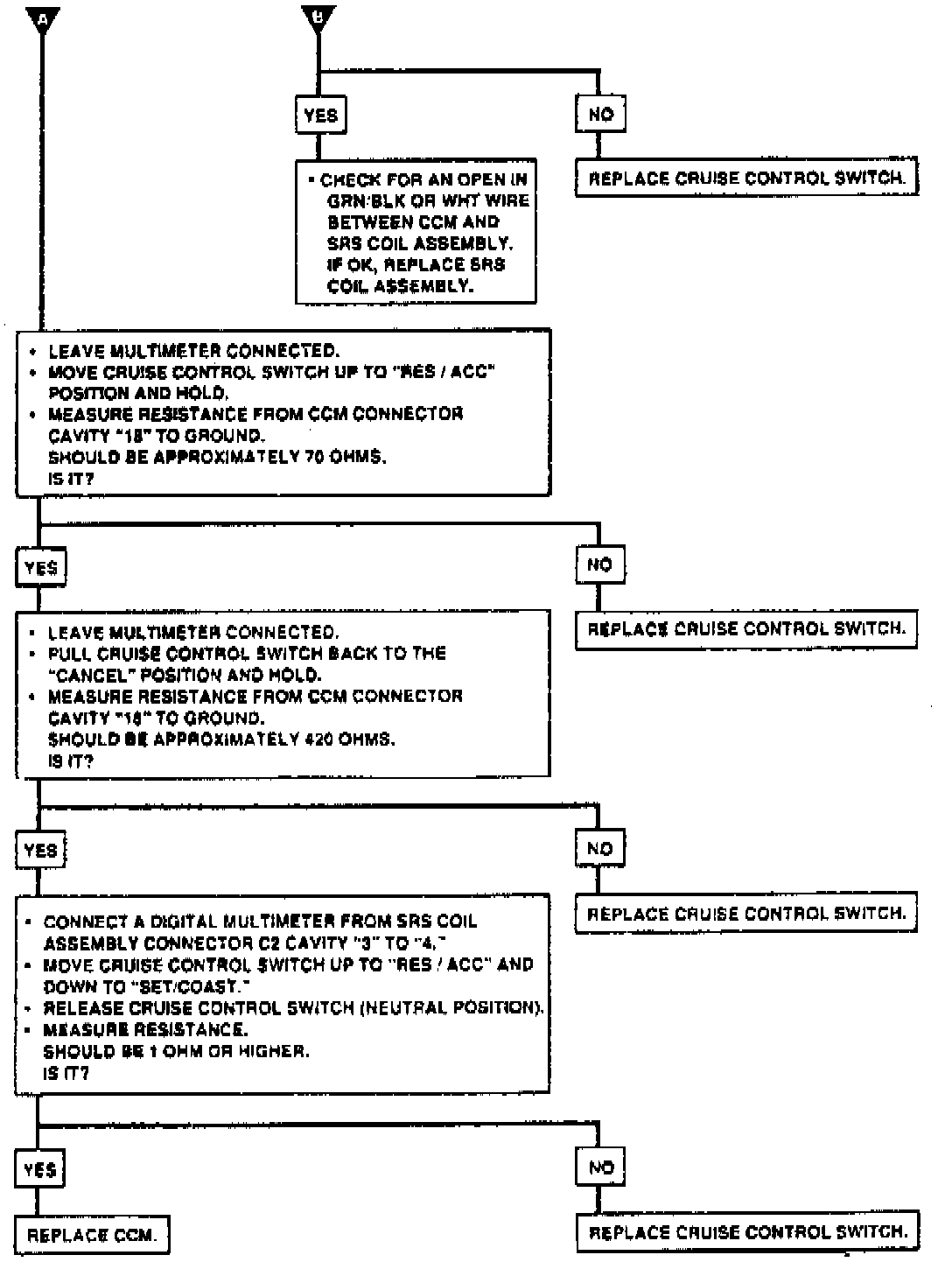

Fig. 22 Code 34: Abnormal Signal From Cruise Control Switch (Part 1 Of 3).:

Fig. 22 Code 34: Abnormal Signal From Cruise Control Switch (Part 2 Of 3).:

Fig. 22 Code 34: Abnormal Signal From Cruise Control Switch (Part 3 Of 3).:
