Transmission Position Sensor/Switch, A/T
Transmission Position Sensor/Switch, A/T

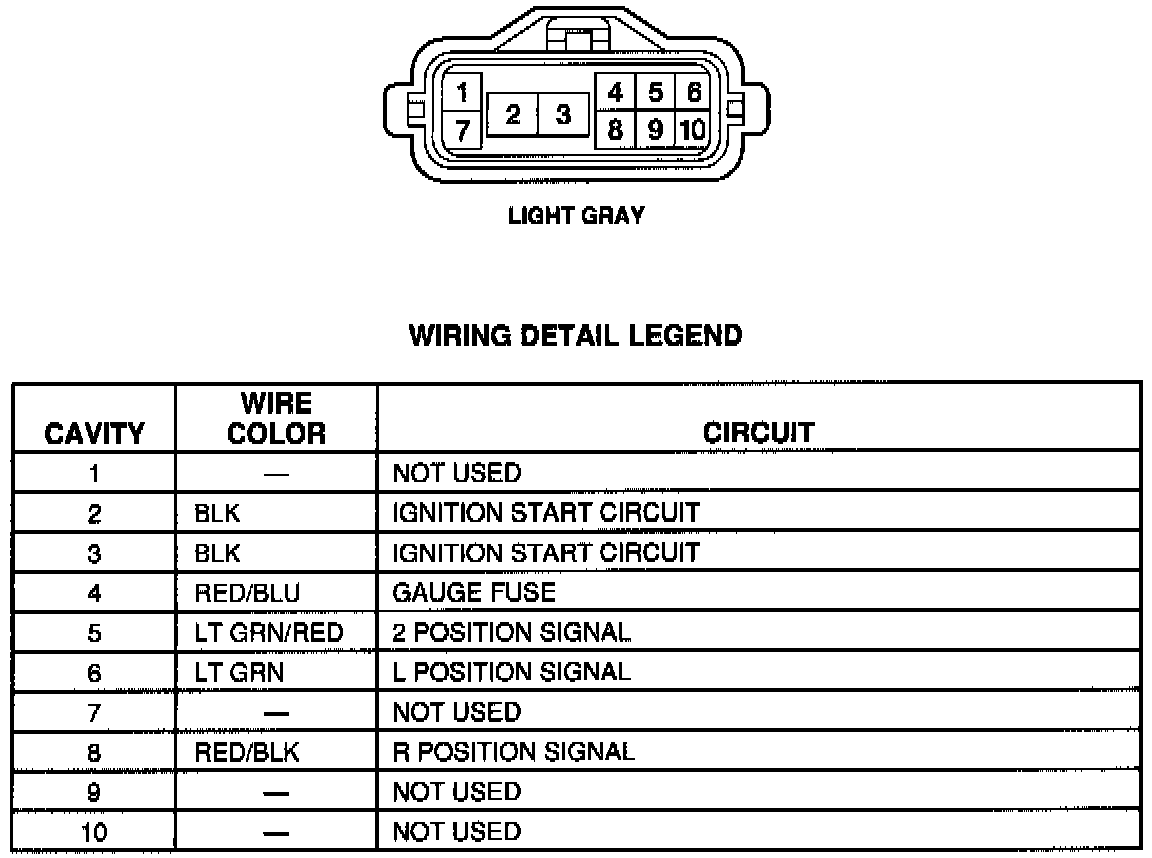

A1: Park/Neutral Position (PNP) Switch (VIN 8 Automatic Transaxle):
