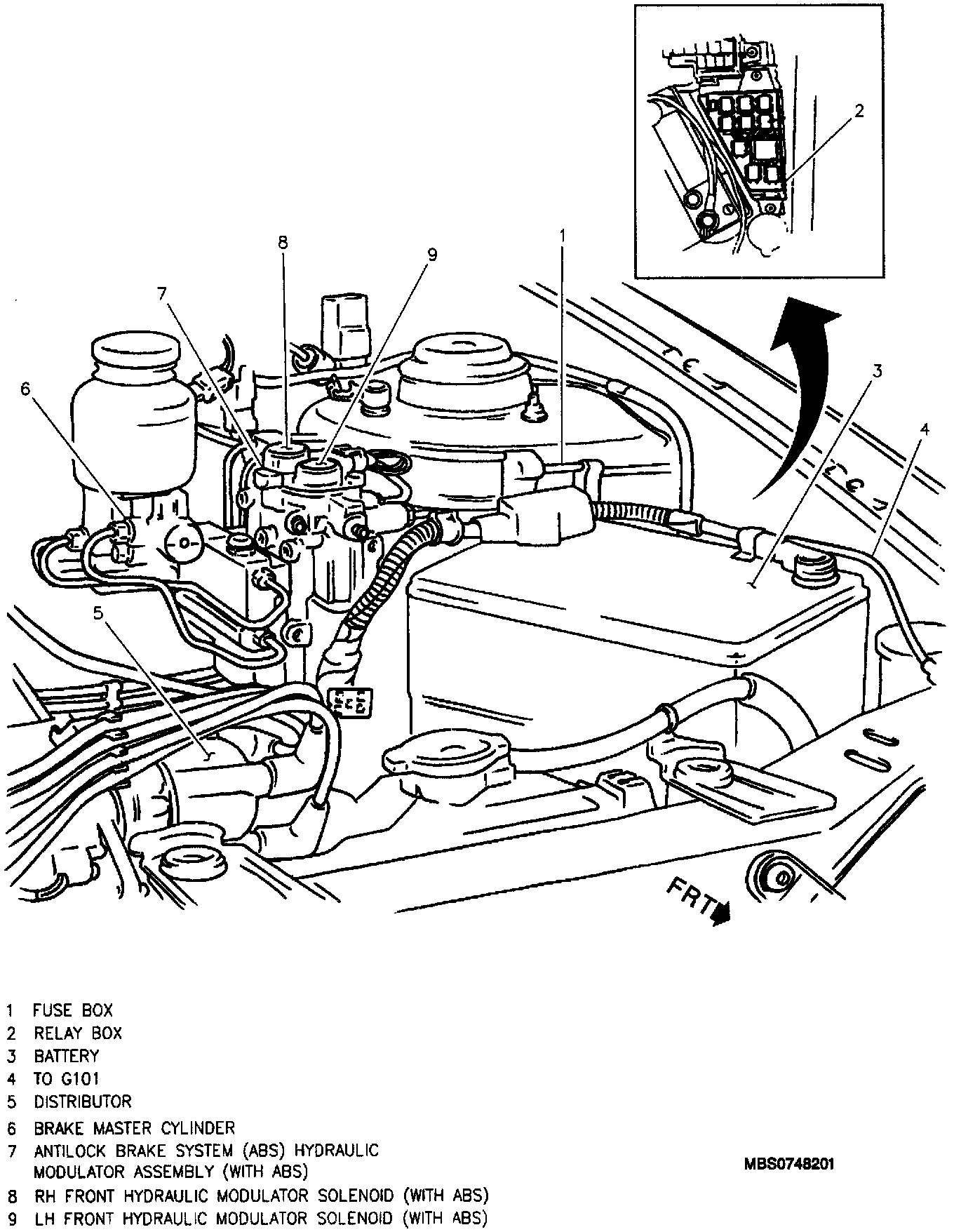

Antilock Brake System Hydraulic Modulator Assembly
Antilock Brake System Hydraulic Modulator Assembly
LH Engine Compartment:
