Metro L4-079 1.3L VIN 9 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Component
>>

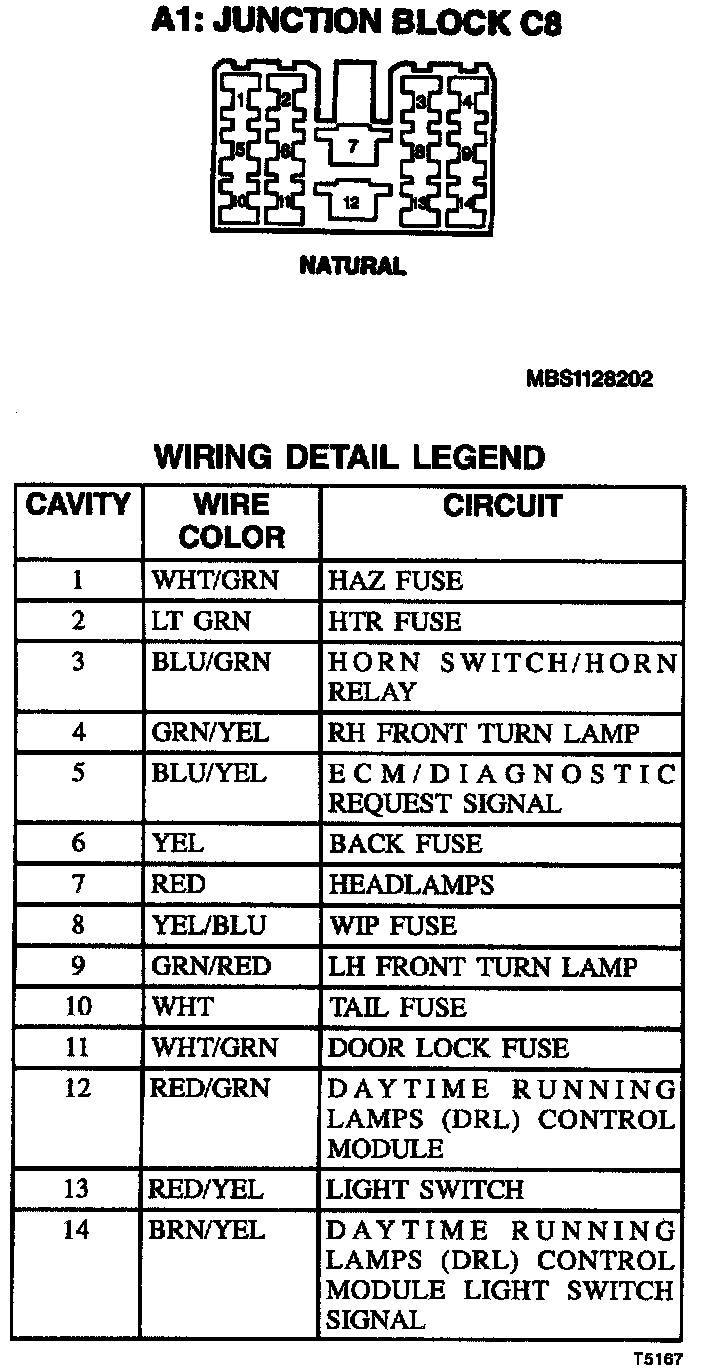

A1: Junction Block C8
A1: Junction Block C8
A1: Junction Block C8:
