Home >> Geo >> 1995 >> Metro L4-079 1.3L VIN 9 TBI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Component >> A2: Junction Block C4

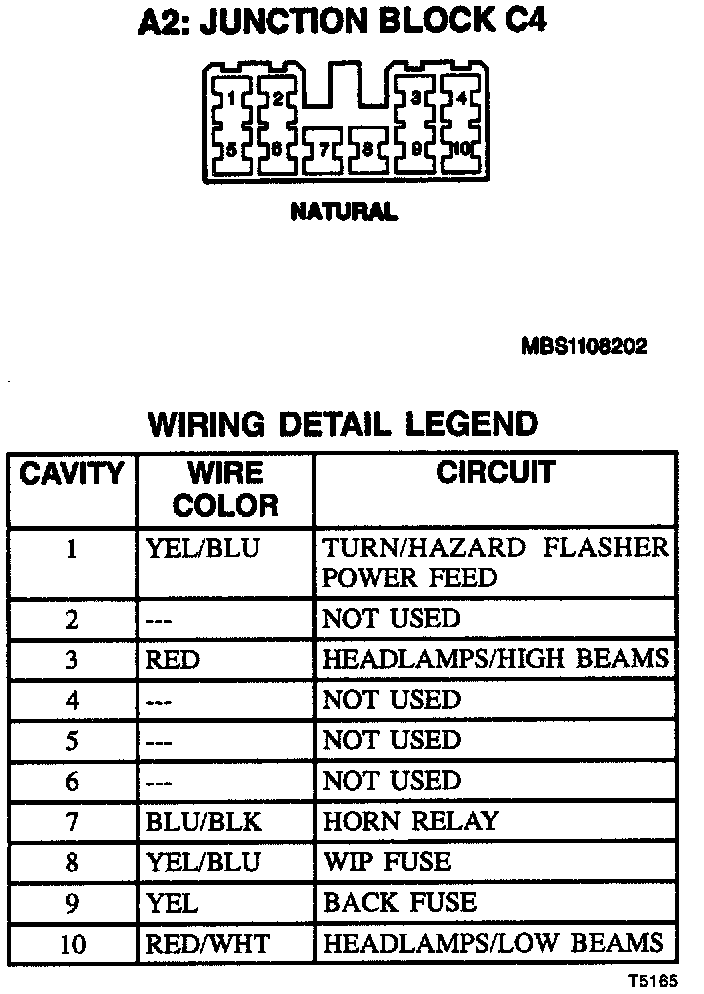

A2: Junction Block C4

A2: Junction Block C4:
