1995
>>
Metro L4-079 1.3L VIN 9 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Data Link Connector
>>

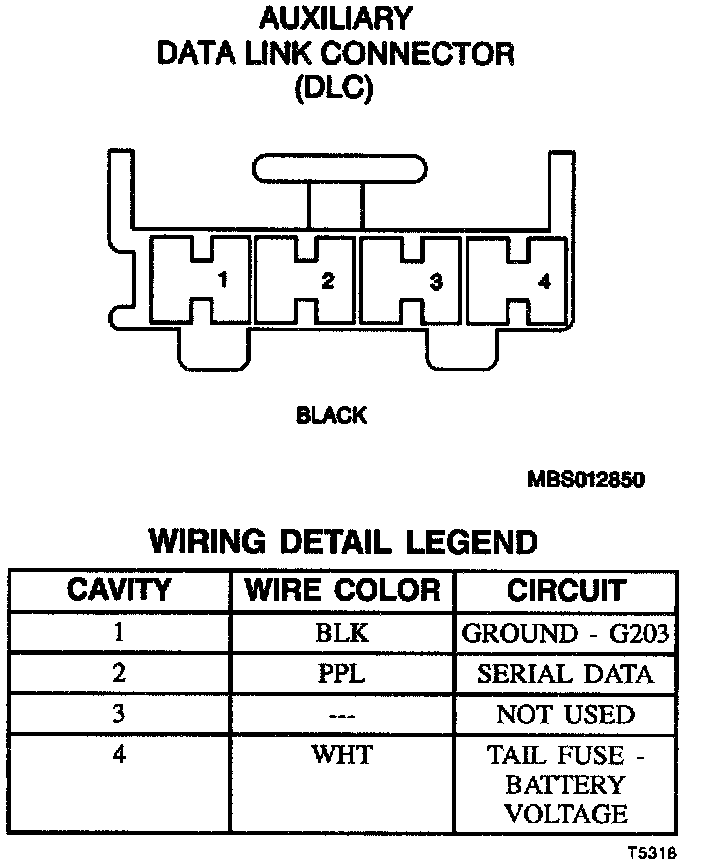

Auxiliary Data Link Connector (DLC)
Auxiliary Data Link Connector (DLC)
Auxiliary Data Link Connector (DLC):
