Brake Lamp

Stop Light:

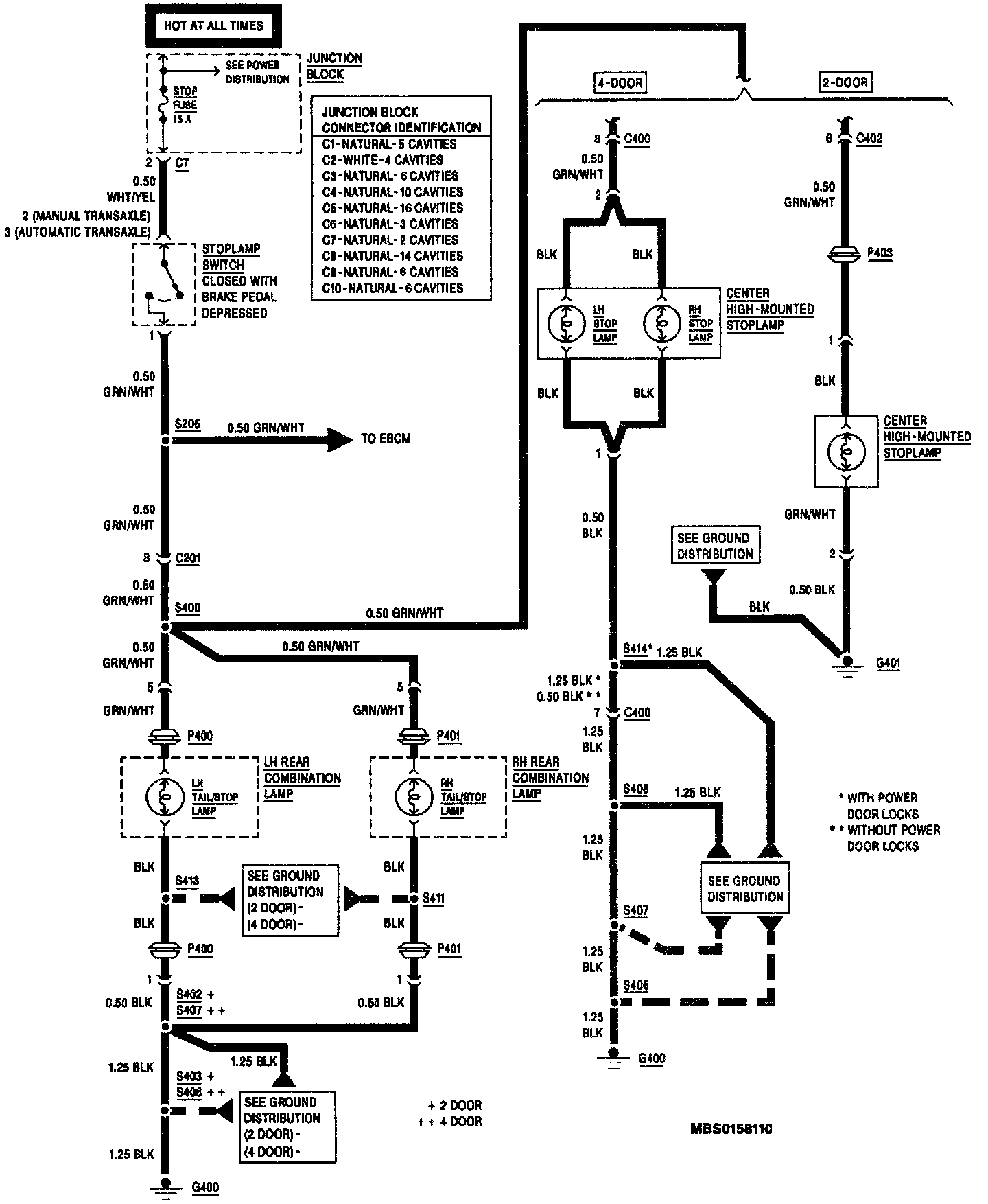

This diagram is one part of the complete set of powertrain wiring diagram located under powertrain management. Refer to this area if you need the accompanying diagram. Diagrams
