Operation CHARM
: Car repair manuals for everyone.
Home
>>
Geo
>>
1995
>>
Metro L4-079 1.3L VIN 9 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
Emission Control Systems
Emission Control Systems

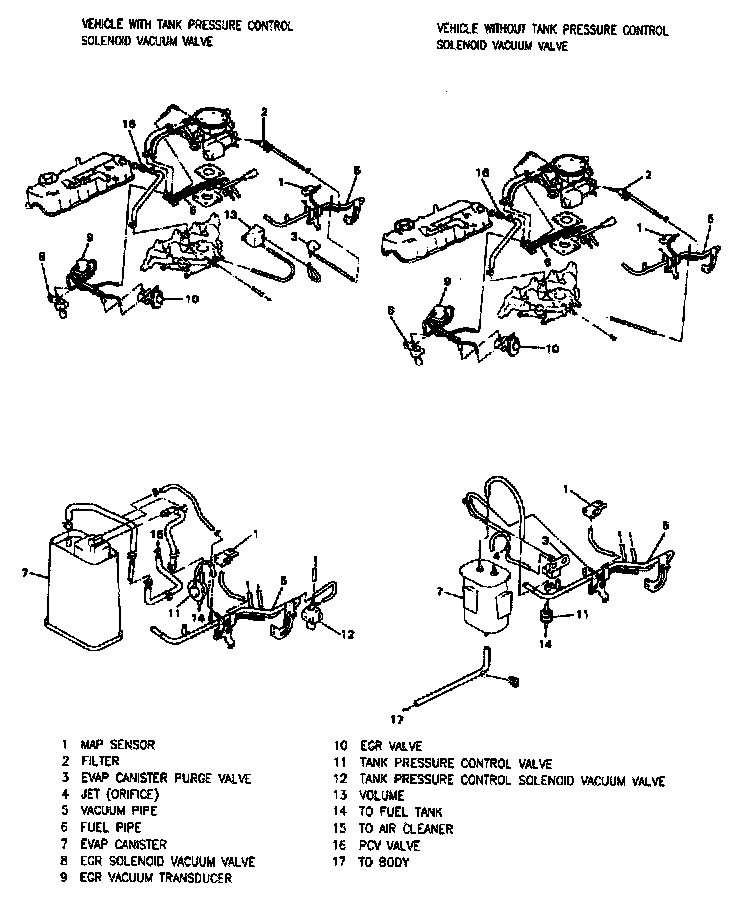

Fuel Storeage System:

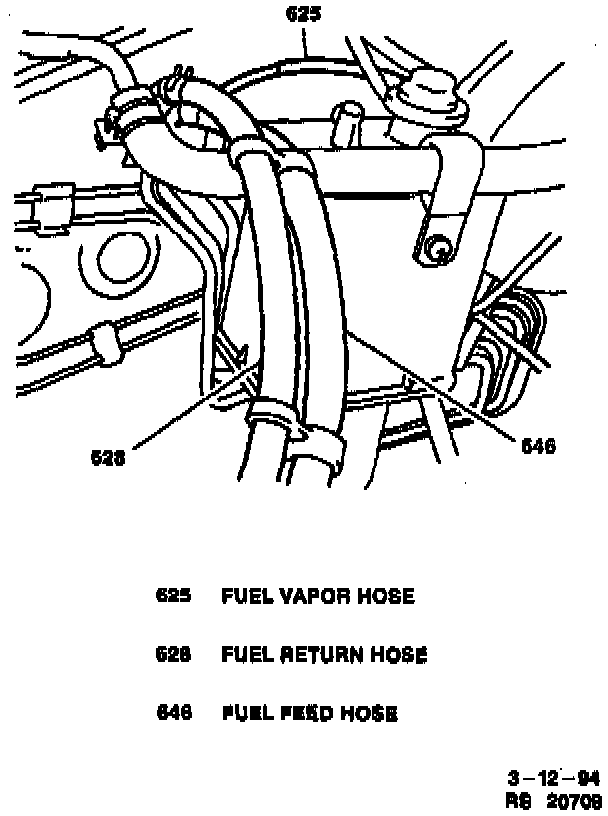

Engine Compartment Fuel Hoses:
