Metro L4-079 1.3L VIN 9 TBI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
C3
C3

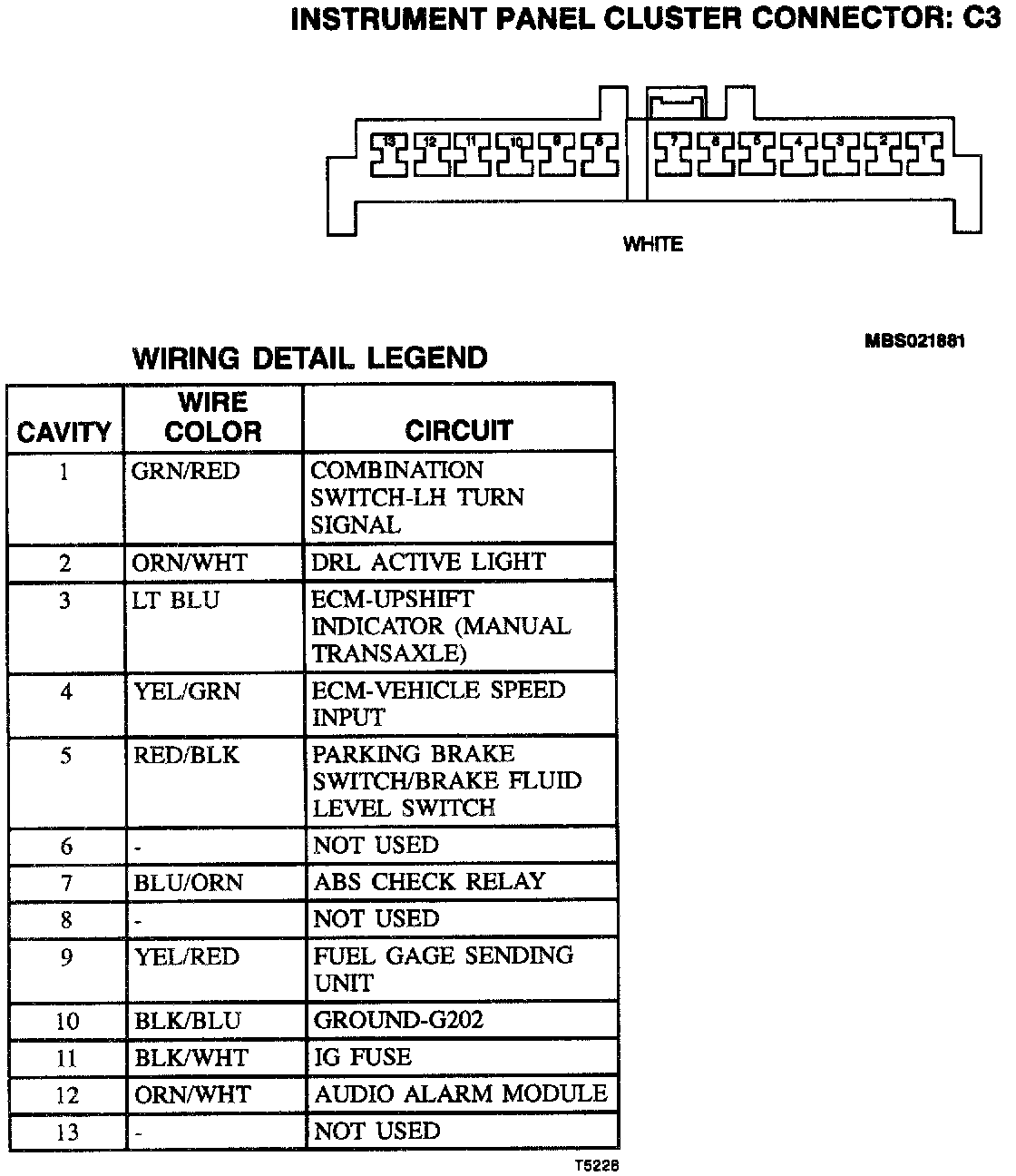

Instrument Panel Cluster Connector: C3:
