Data Sensors

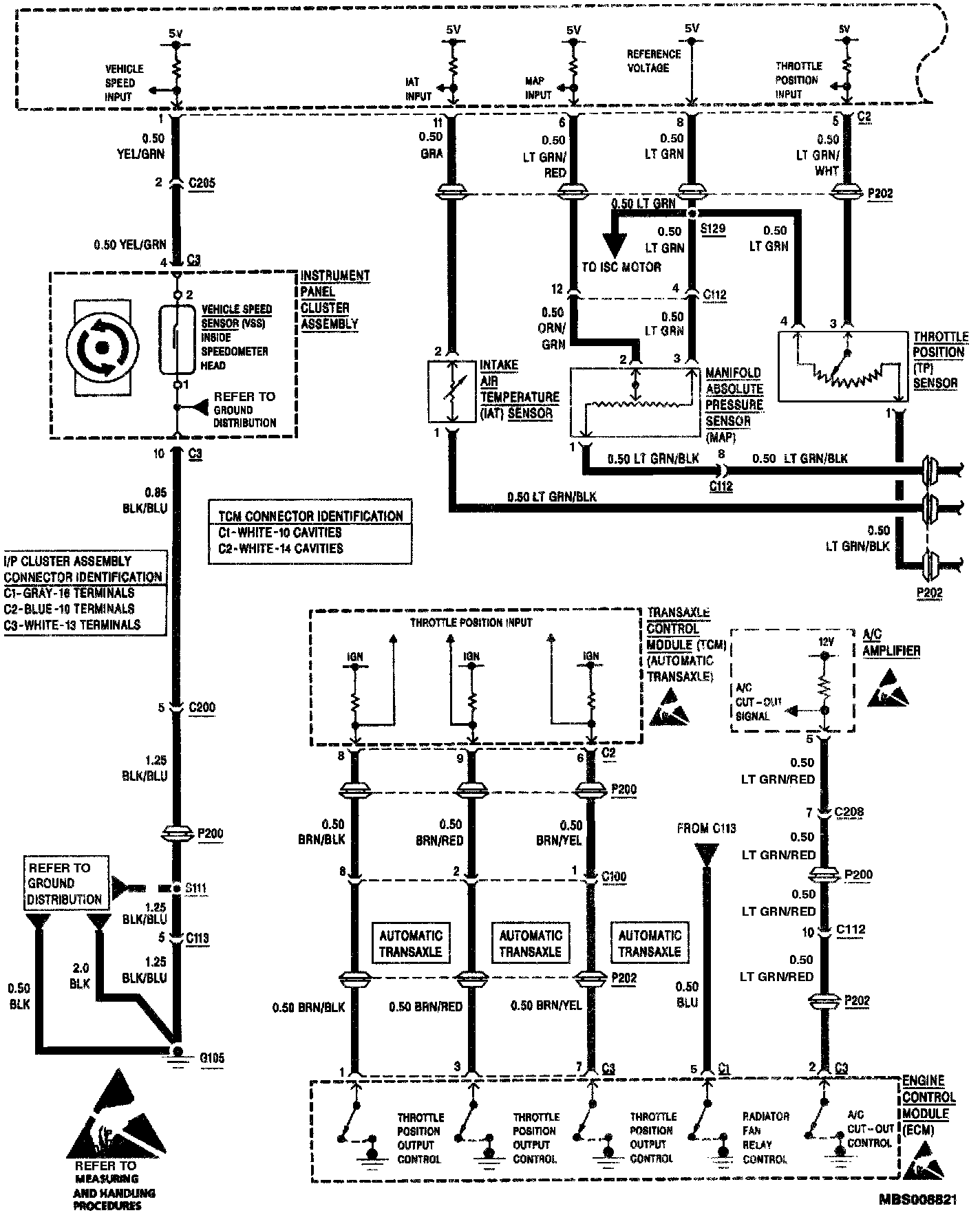

Engine And Vehicle Data Sensors (Part 1 Of 2):



Engine And Vehicle Data Sensors (Part 2 Of 2):
