ECM Diagrams

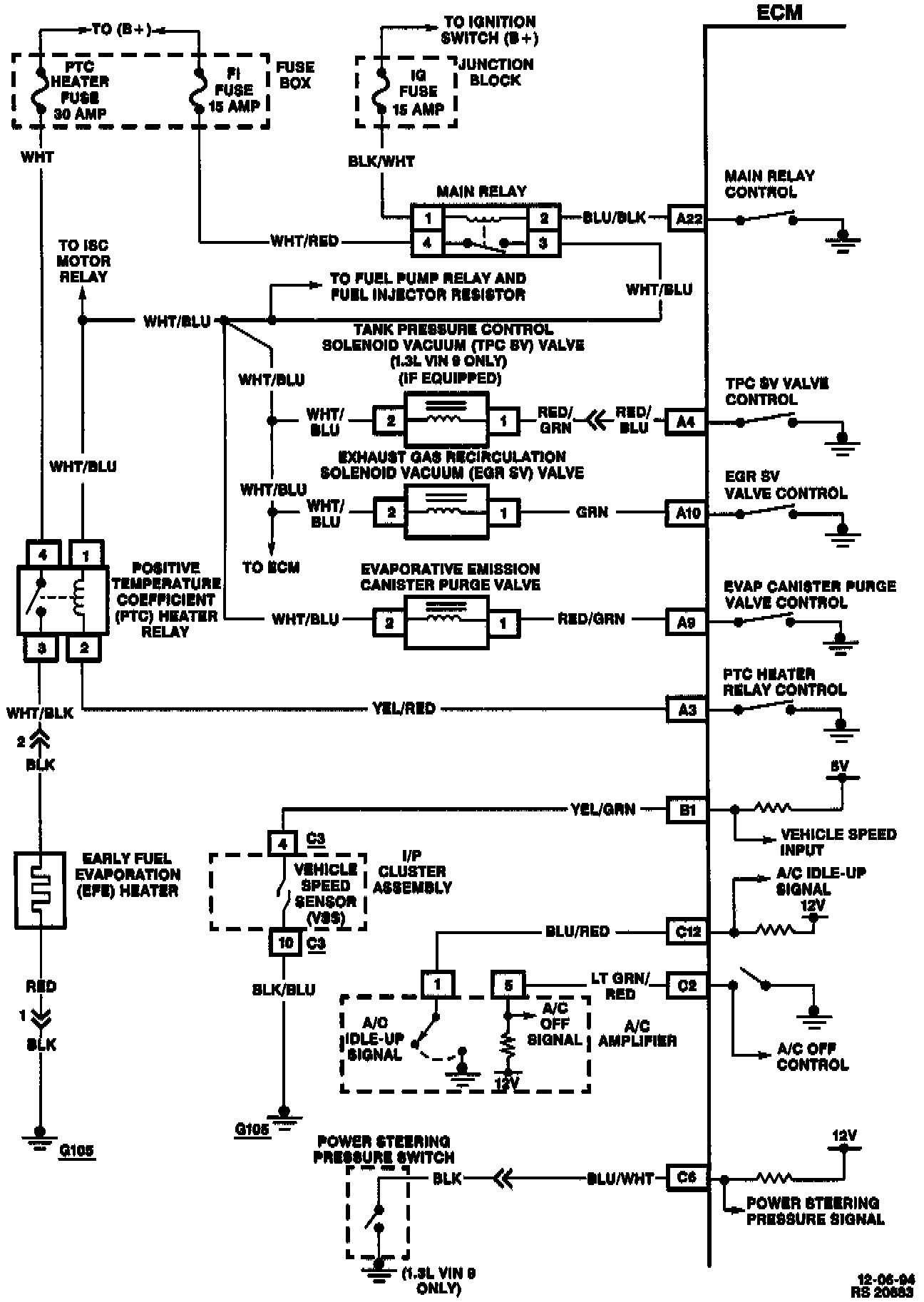

Engine Control Module (ECM) Wiring Diagram - Part 1 Of 5:

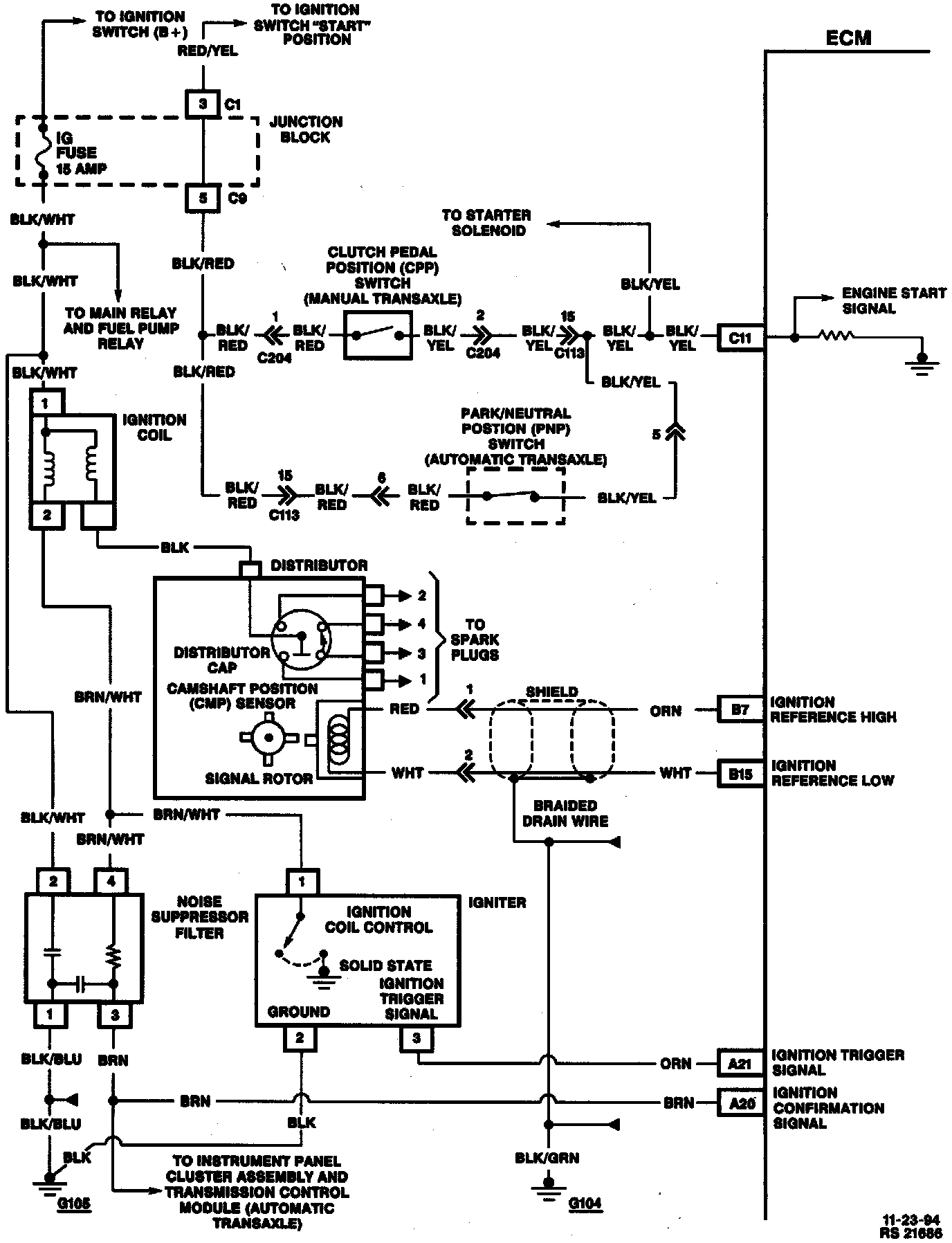

Engine Control Module (ECM) Wiring Diagram - Part 2 Of 5:

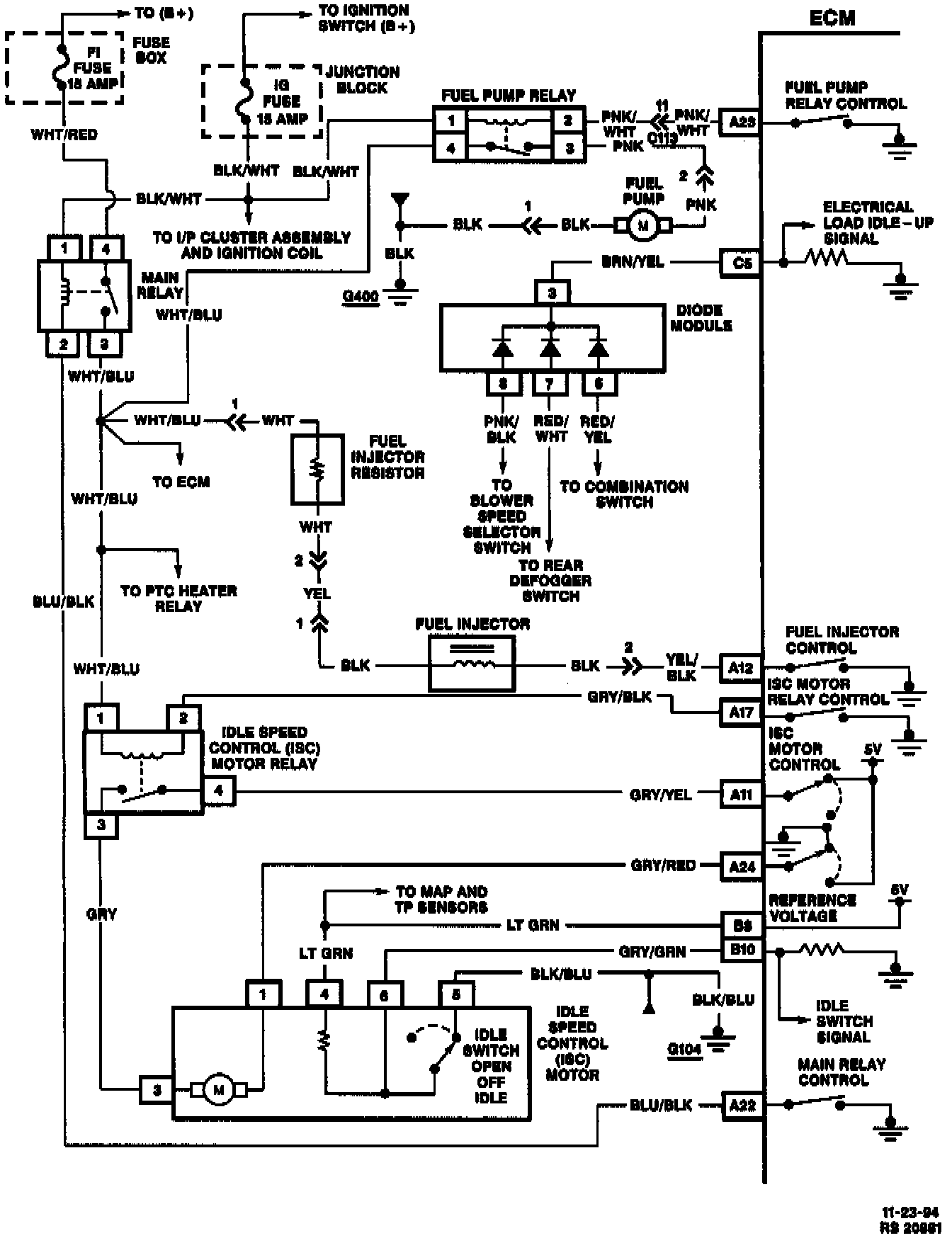

Engine Control Module (ECM) Wiring Diagram - Part 3 Of 5:

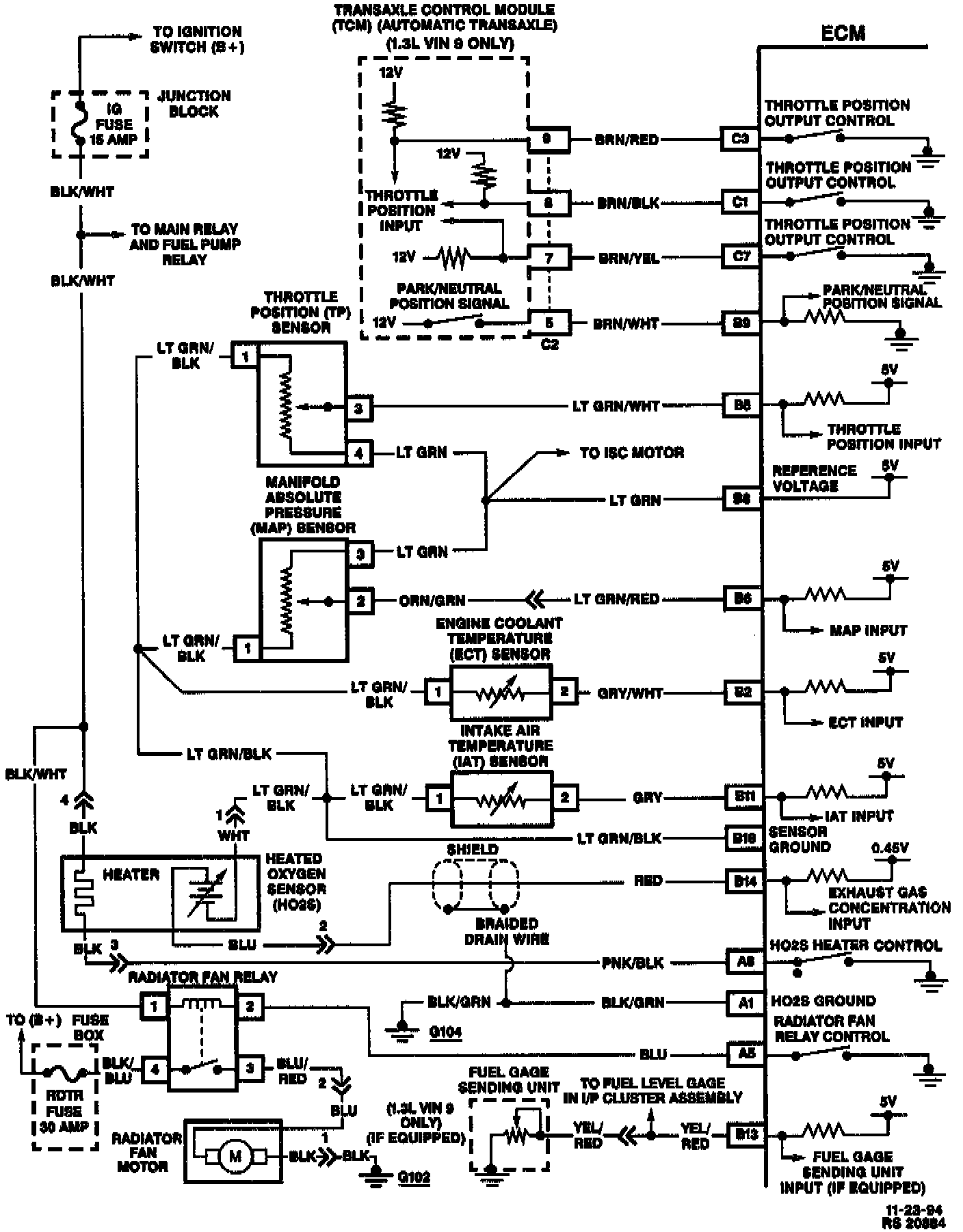

Engine Control Module (ECM) Wiring Diagram - Part 4 Of 5:

Engine Control Module (ECM) Wiring Diagram - Part 5 Of 5:
