Automatic Transmission/Transaxle: Testing and Inspection

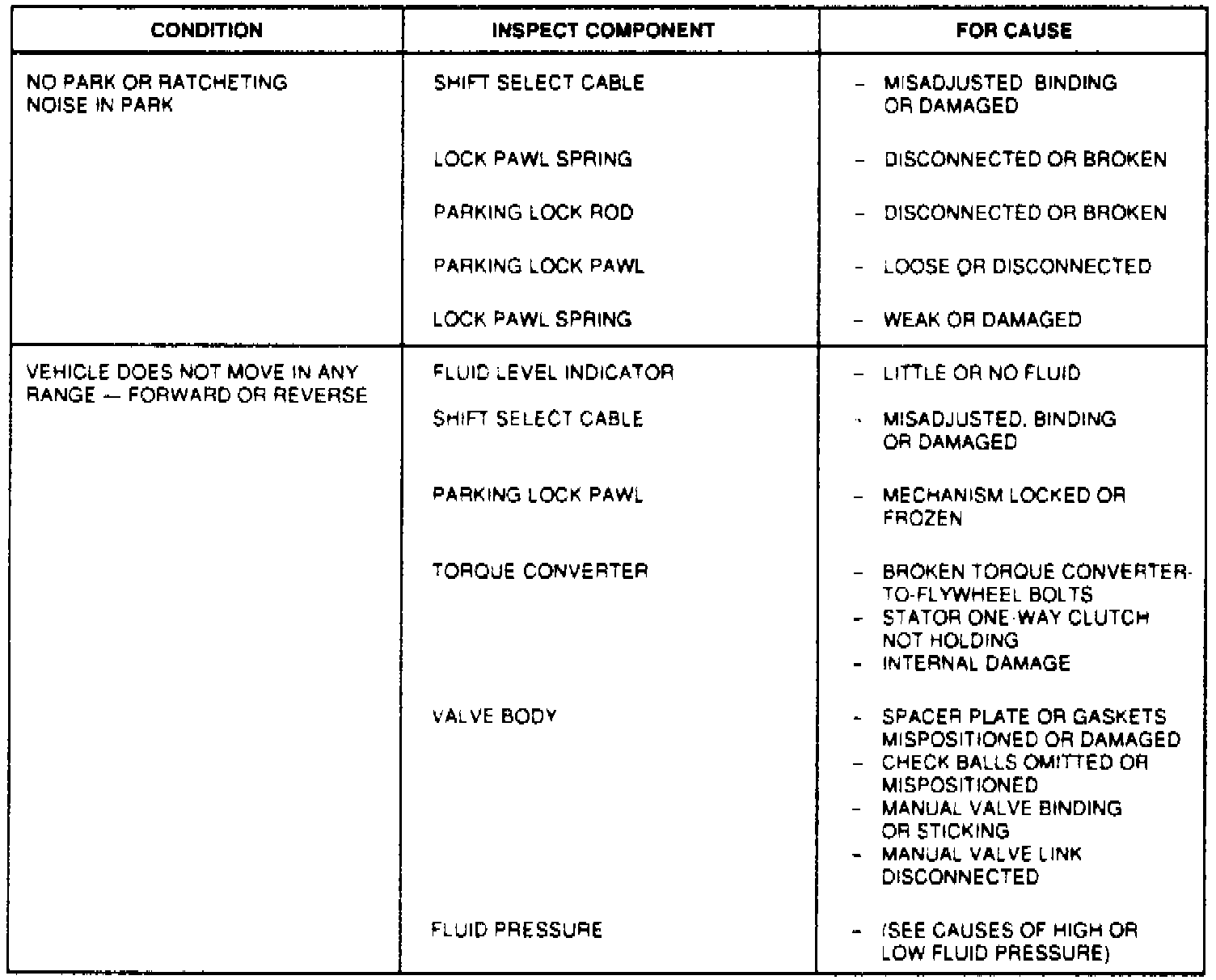

Fig. 2 Troubleshooting Chart (Part 1 Of 6).:

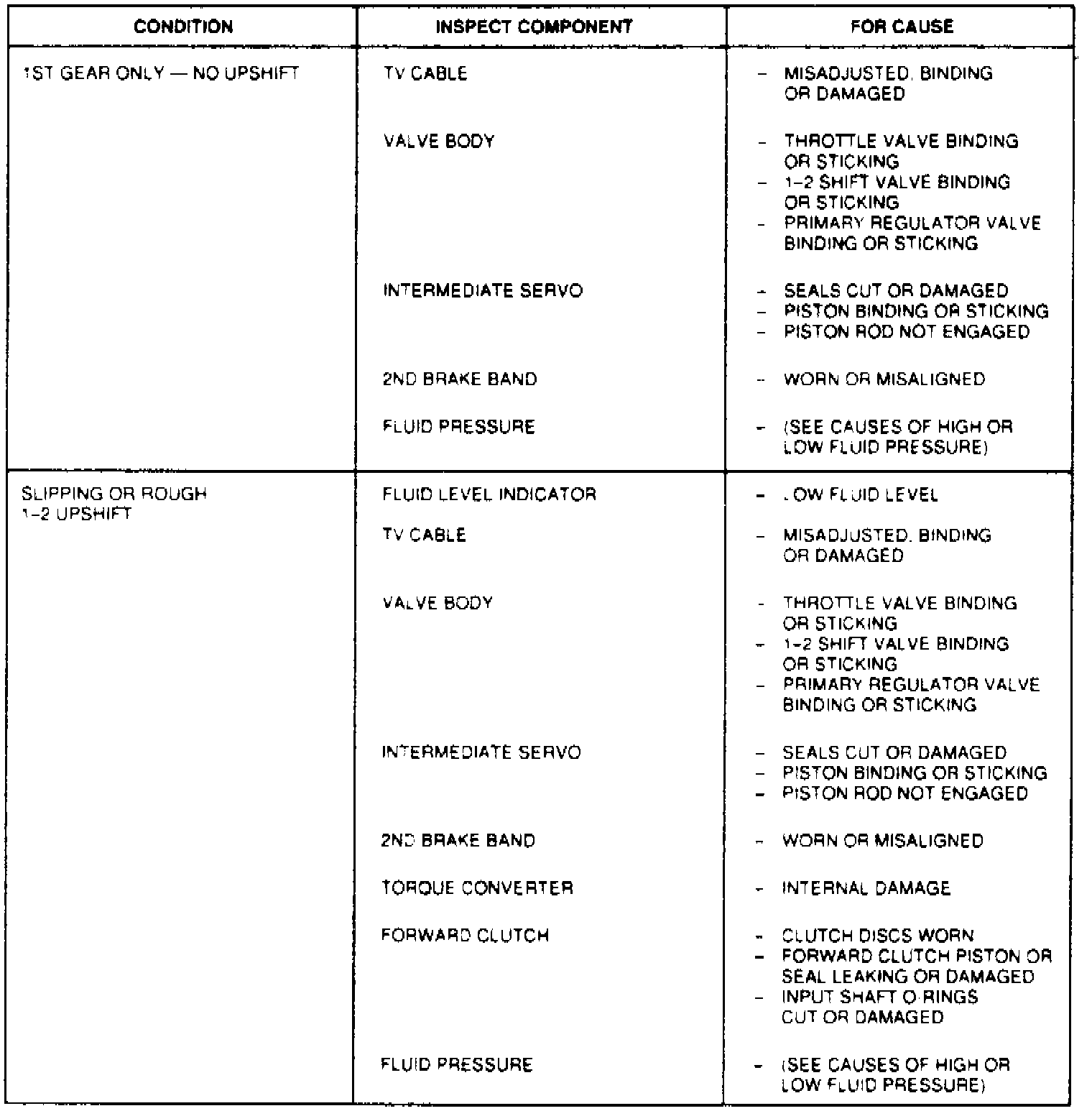

Fig. 2 Troubleshooting Chart (Part 2 Of 6).:

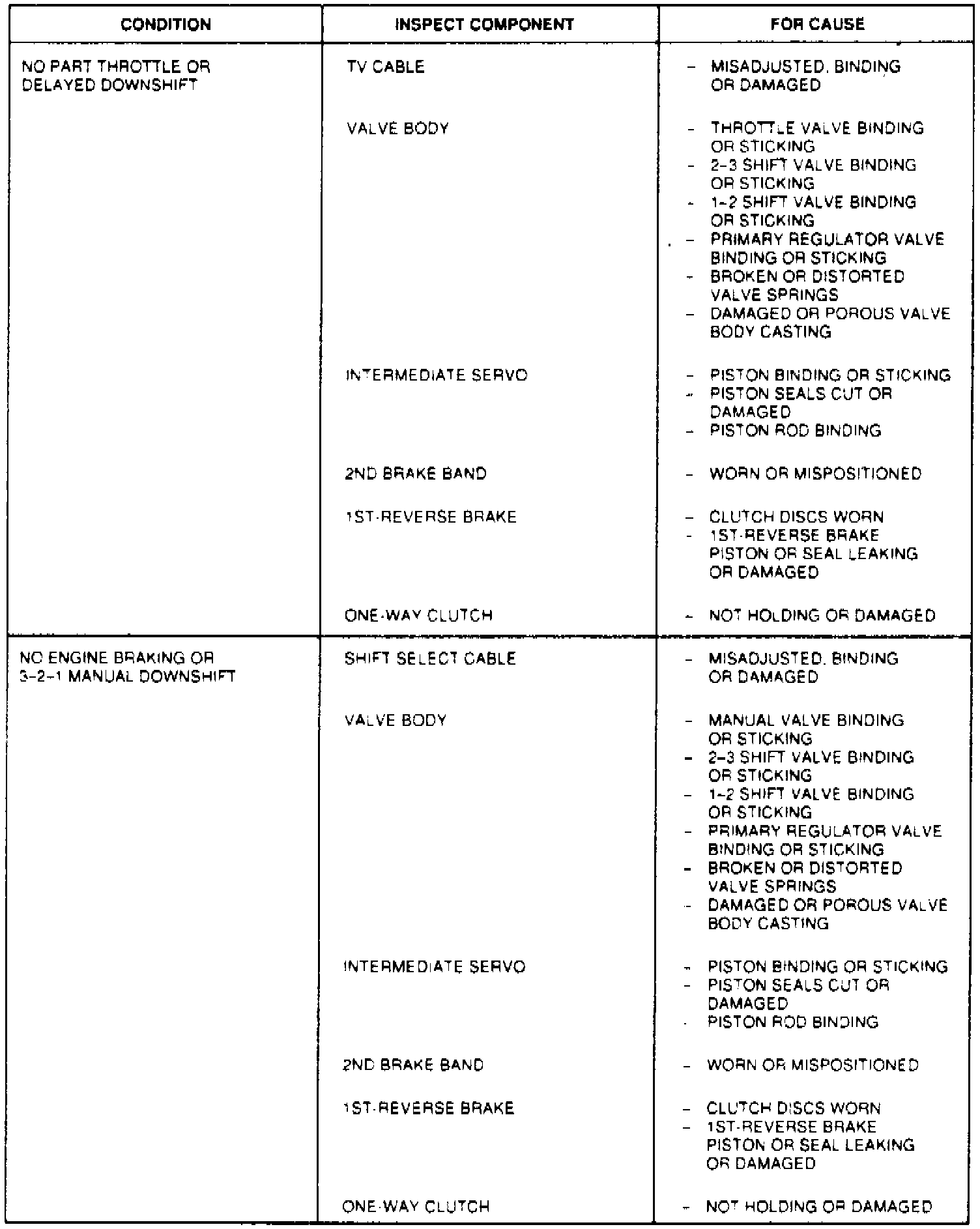

Fig. 2 Troubleshooting Chart (Part 3 Of 6).:

Fig. 2 Troubleshooting Chart (Part 4 Of 6).:

1. Engine coolant is at normal operating temperature.
2. Engine idle speed is 800-900 RPM.
3. Transaxle fluid level is correct and at normal operating temperature.
4. Accelerator cable, oil pressure control cable and selector cable are properly adjusted.
5. Gear shift control system wiring is in good condition.
6. Vacuum switch hose is properly connected.
7. Refer to Fig. 2, for transaxle troubleshooting.

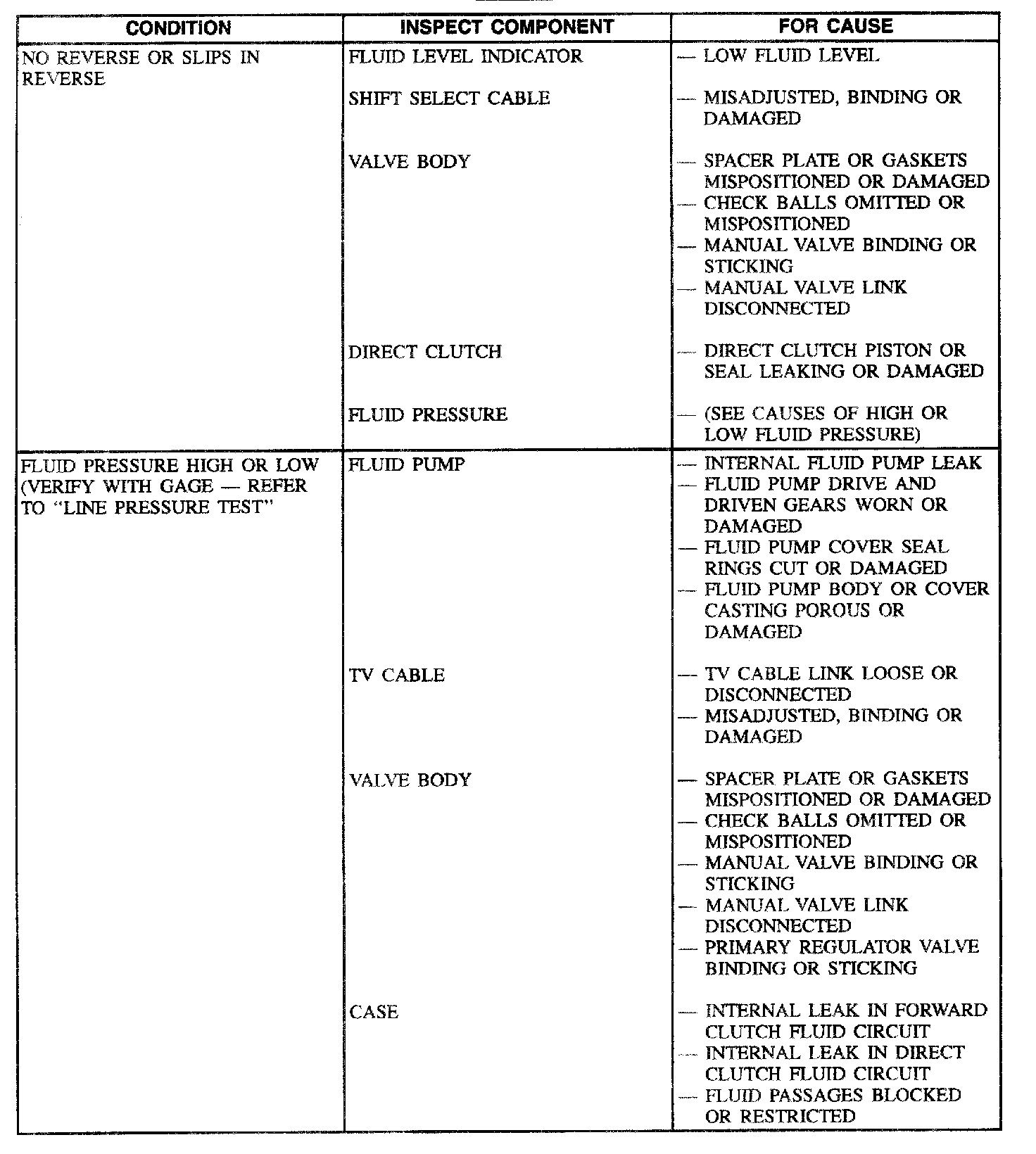

Fig. 2 Troubleshooting Chart (Part 6 Of 6).:
