1995
>>
Prizm L4-097 1.6L DOHC VIN 6 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
>>
Vehicle Speed Sensor (VSS)
Vehicle Speed Sensor (VSS)

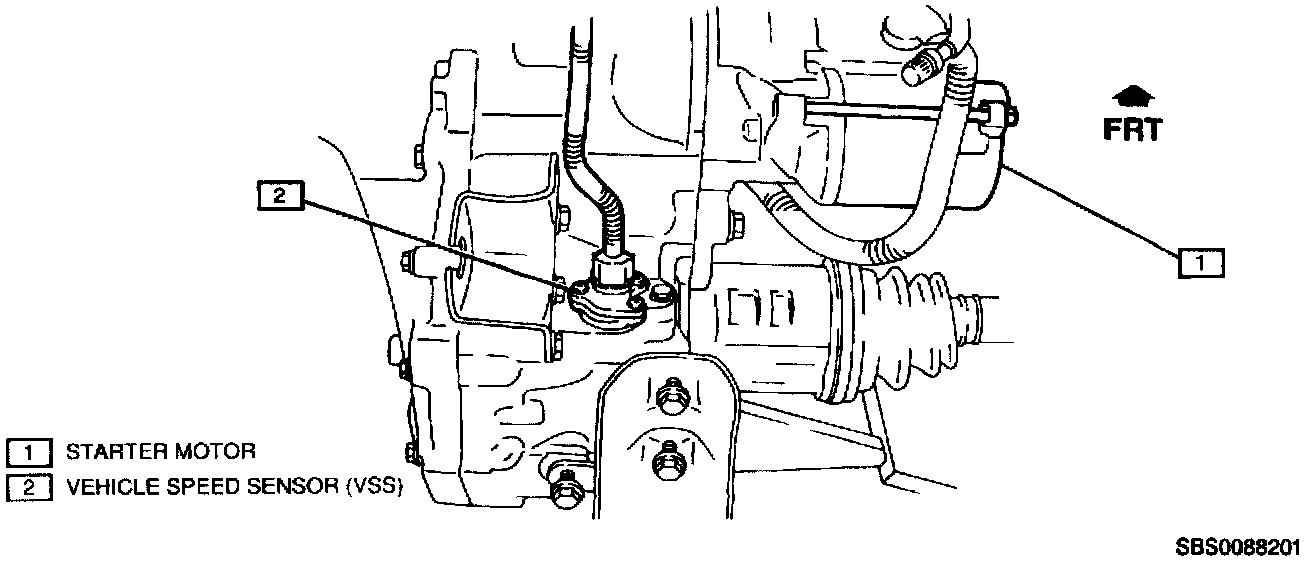

Manual Transaxle Wiring:

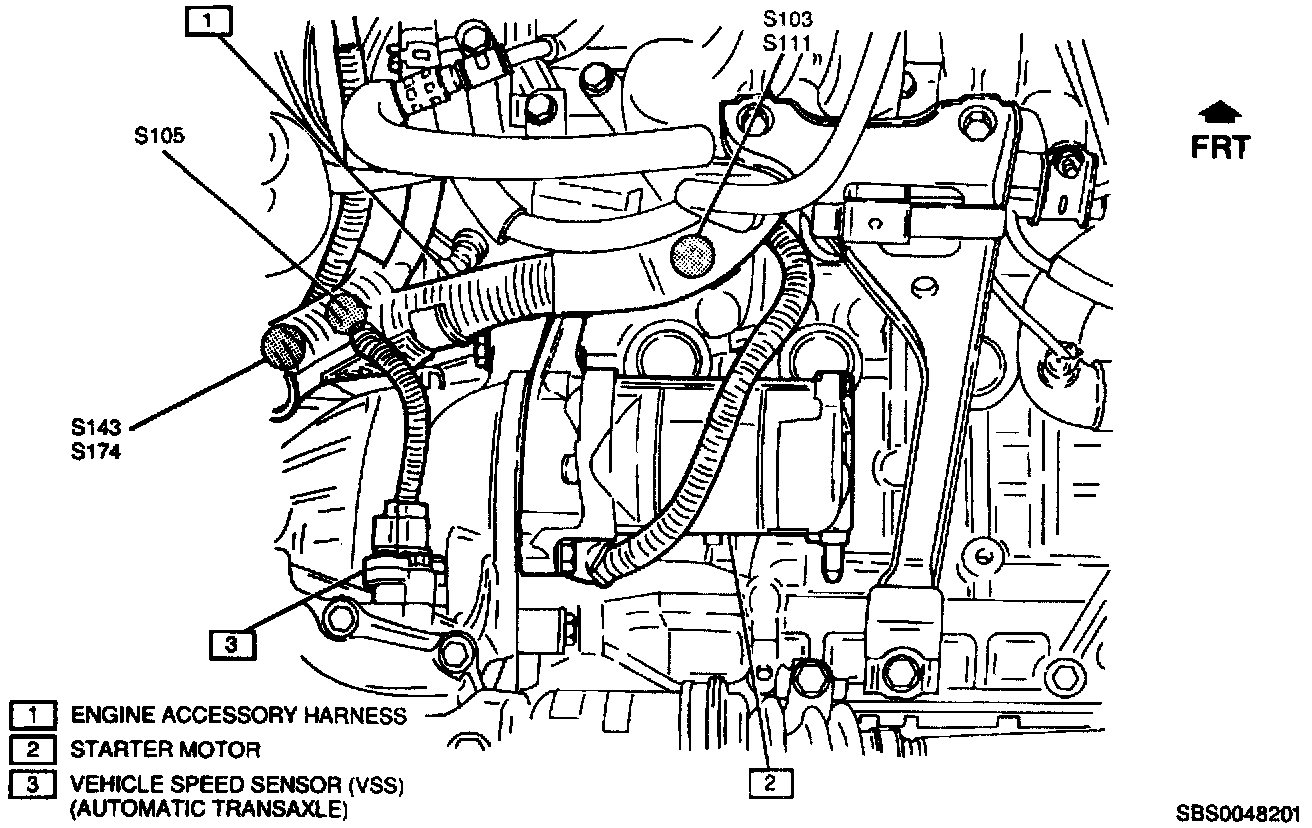

LH Front Of Engine:
