Prizm L4-097 1.6L DOHC VIN 6 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Diagnostic Connector - ABS
Diagnostic Connector - ABS

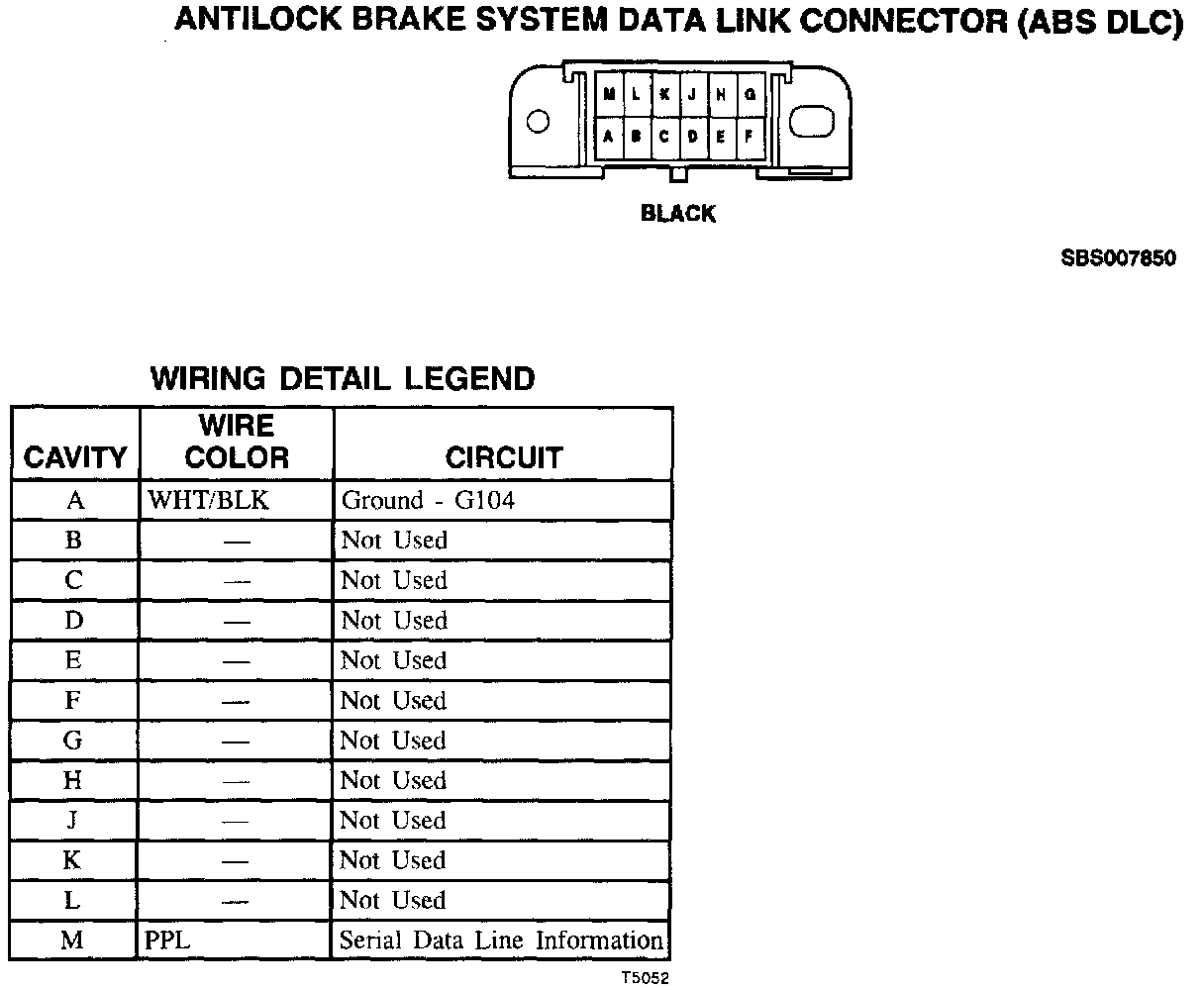

Antilock Brake System Data Link Connector (ABS DLC):
