Operation CHARM
: Car repair manuals for everyone.
Home
>>
Geo
>>
1995
>>
Prizm L4-097 1.6L DOHC VIN 6 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Component
>>

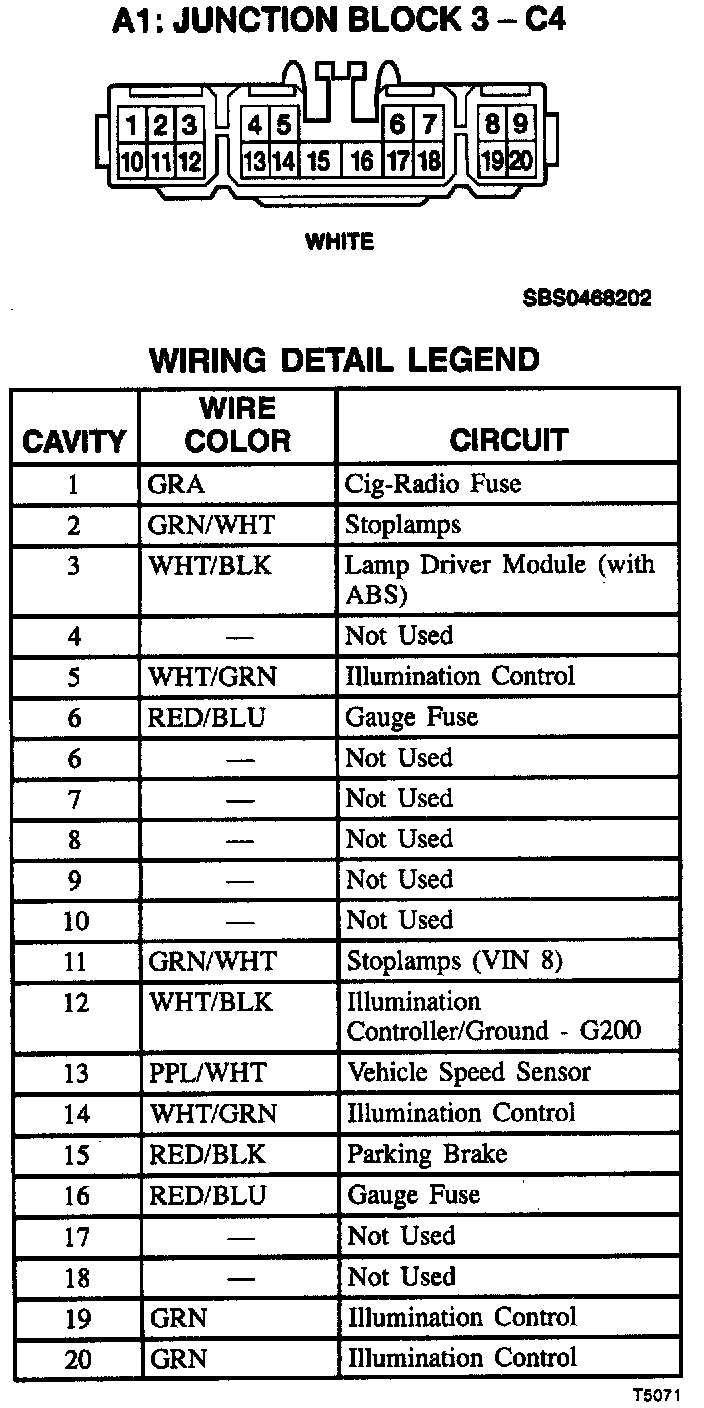

A1: Junction Block 3 - C4
A1: Junction Block 3 - C4
A1: Junction Block 3 - C4:
