Home >> Geo >> 1995 >> Prizm L4-097 1.6L DOHC VIN 6 MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C206 (ABS)

C206 (ABS)

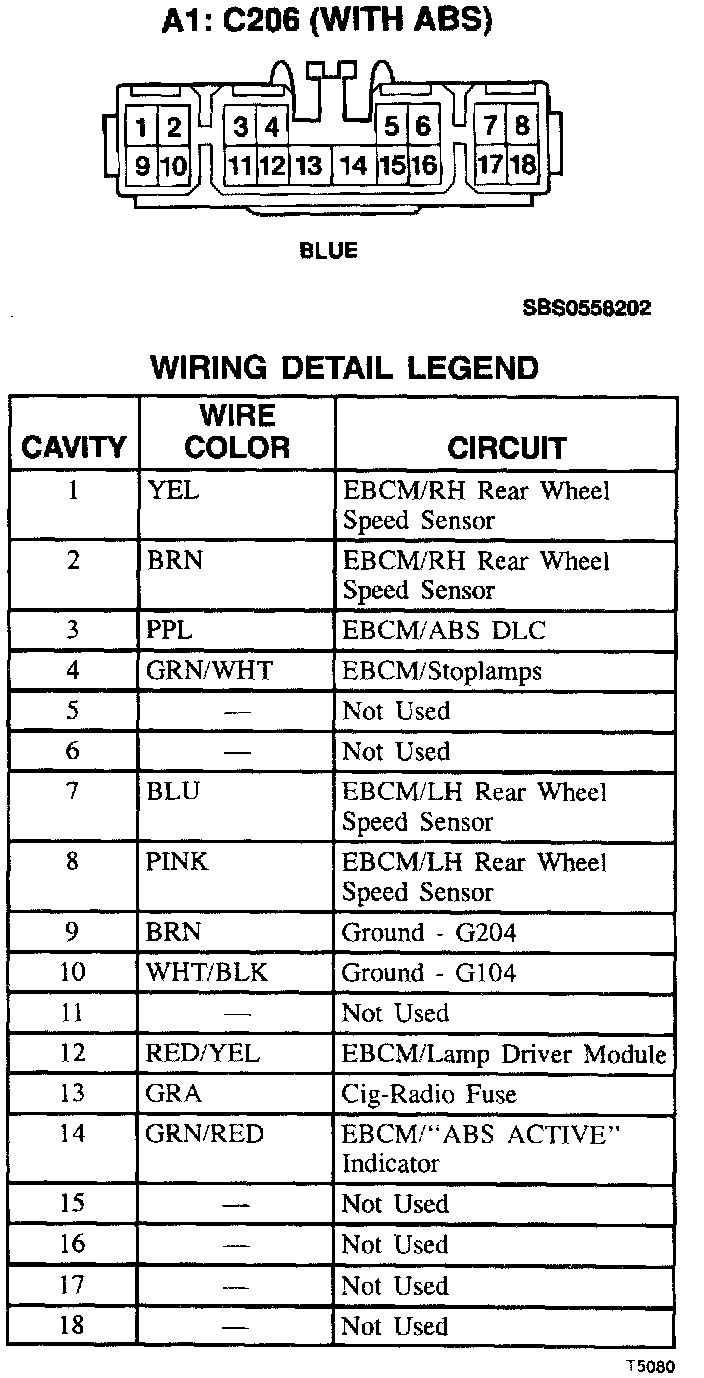

A1: C206 (ABS):
