Operation CHARM: Car repair manuals for everyone.
Home >> Geo >> 1995 >> Prizm L4-097 1.6L DOHC VIN 6 MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C213

C213

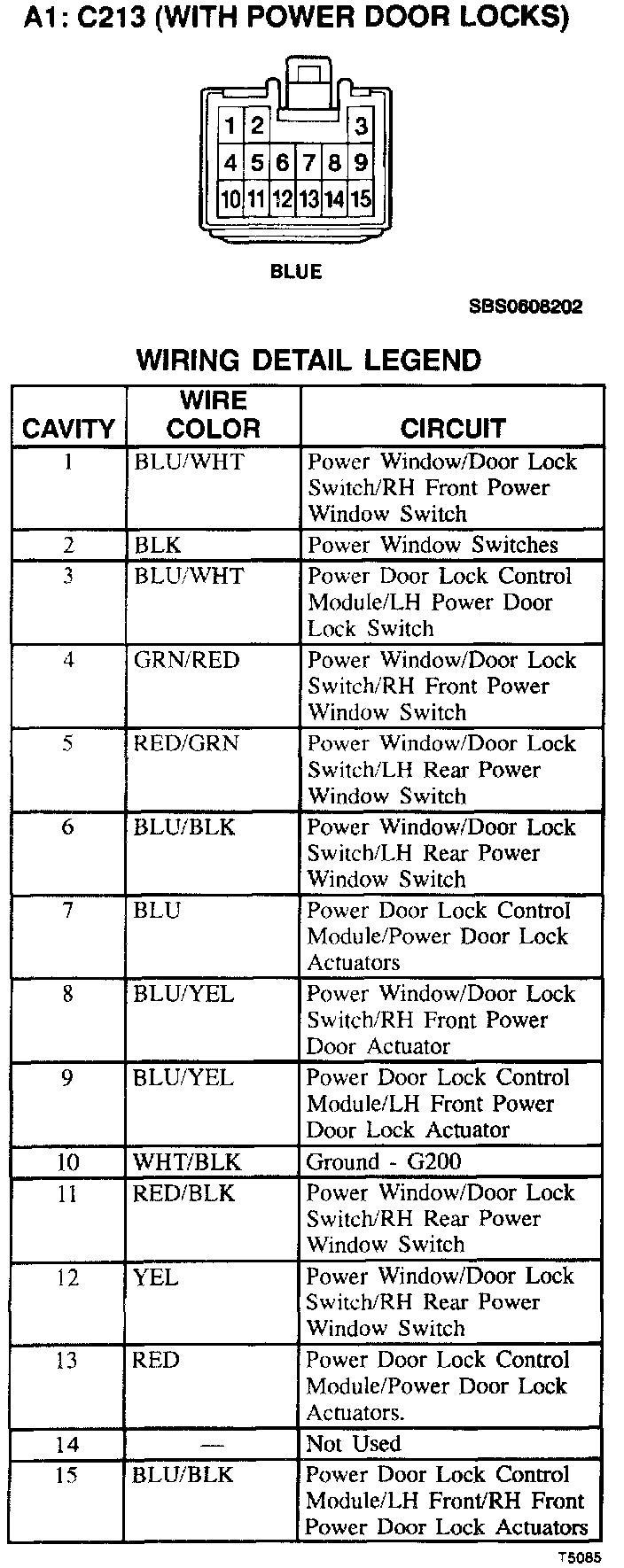

A1: C213 (With Power Door Locks):
