Prizm L4-097 1.6L DOHC VIN 6 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster Connector - C3
Instrument Cluster Connector - C3

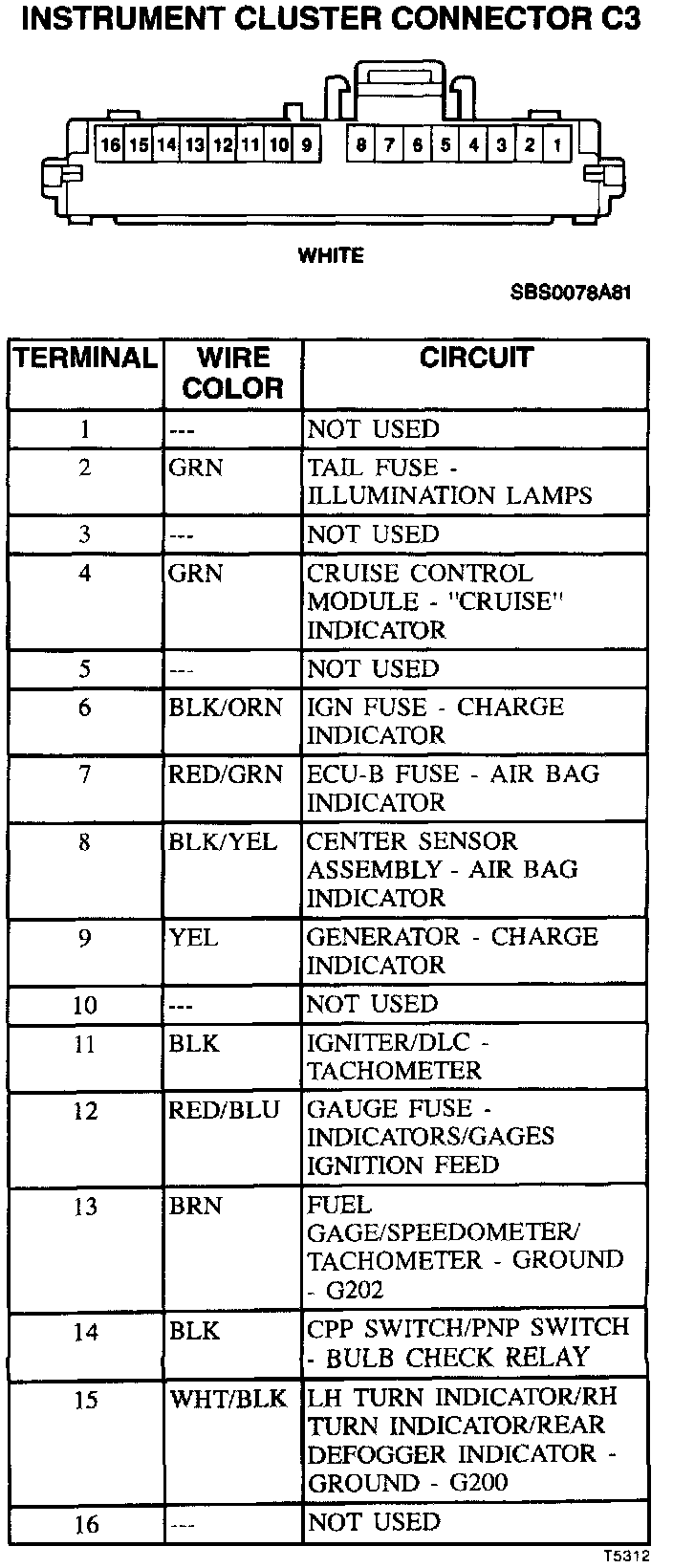

Instrument Cluster Connector - C3:
