Antilock Brake System Wiring Schematic

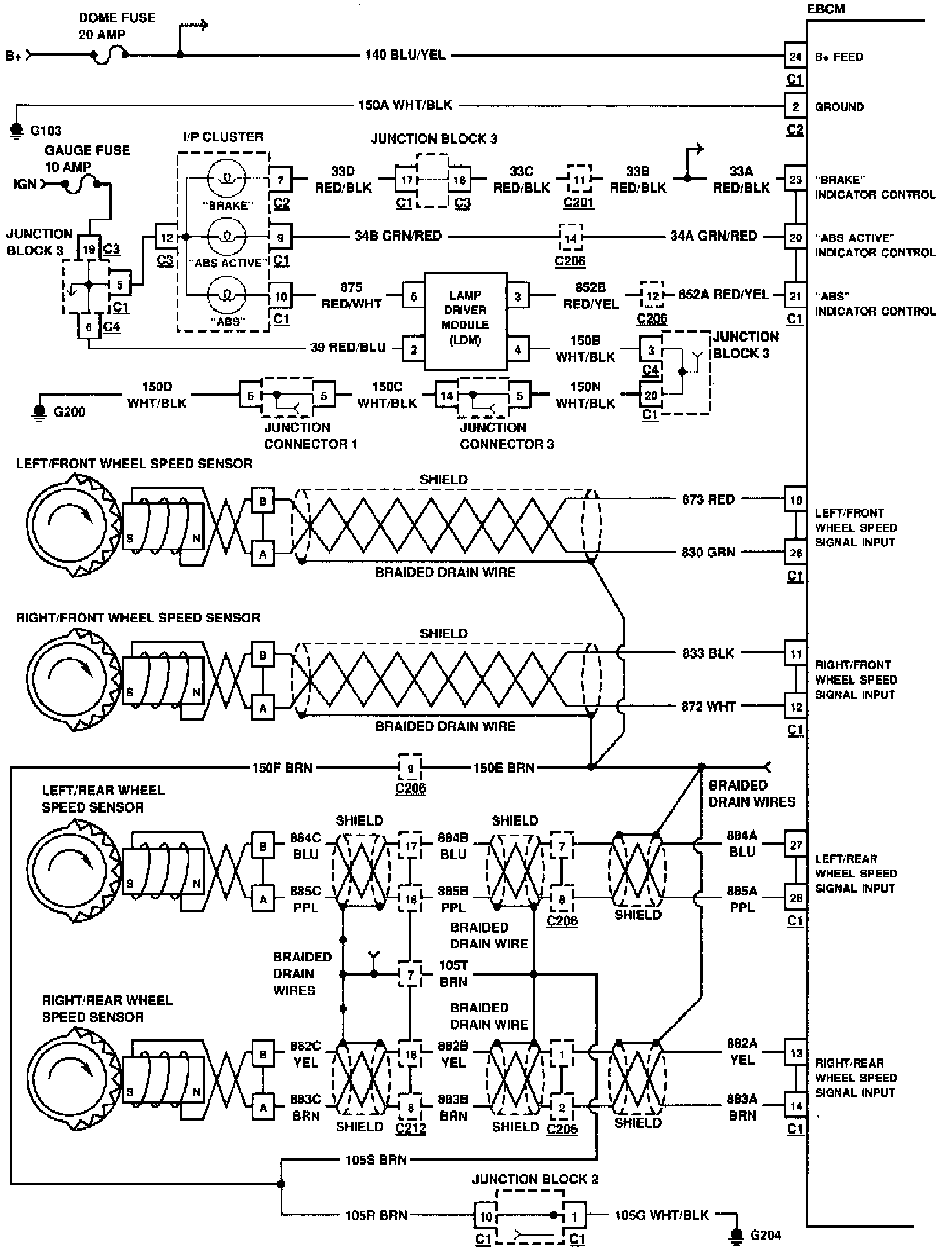

Fig. 23 ABS Wiring Circuit (Part 1 Of 2).:

Fig. 23 Wiring Circuit (Part 2 Of 2).:

Refer to the ABS wiring circuits, Fig. 23, when performing diagnostic procedures.
