Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram
Instrument Cluster: With Gages (Part 1 Of 4):

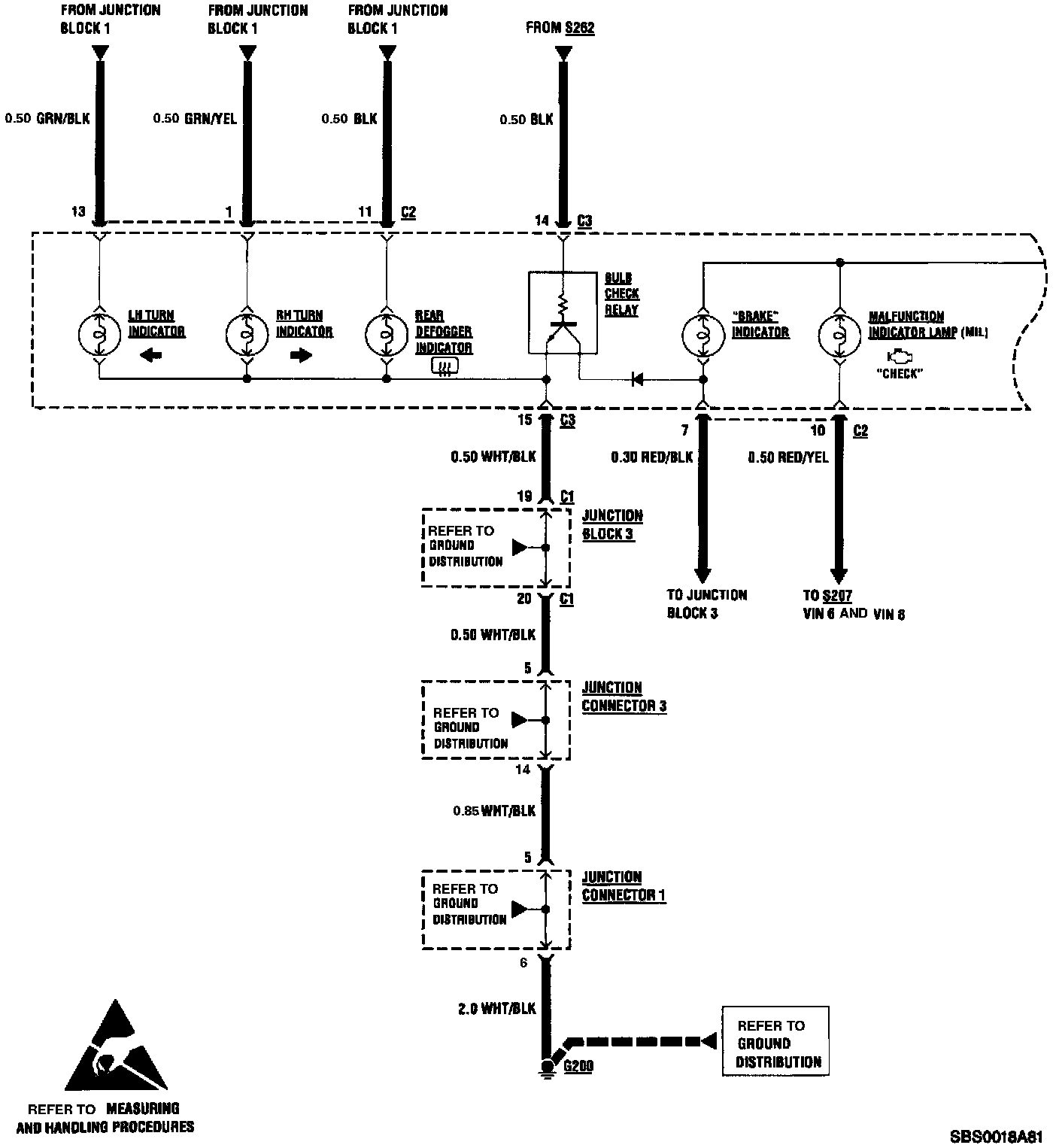

Instrument Cluster: With Gages (Part 2 Of 4):

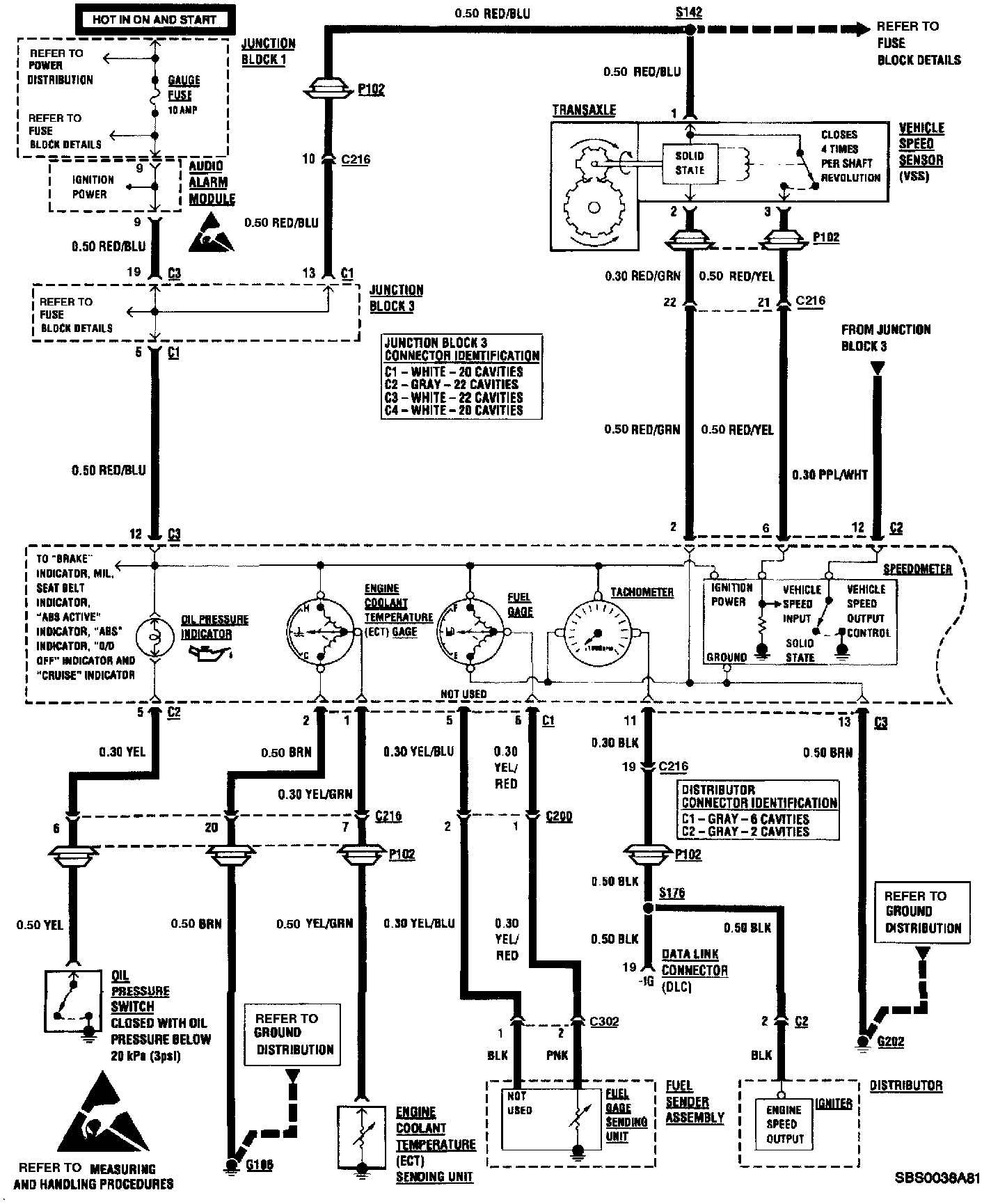

Instrument Cluster: With Gages (Part 3 Of 4):
Instrument Cluster: With Gages (Part 4 Of 4):
