System Diagram

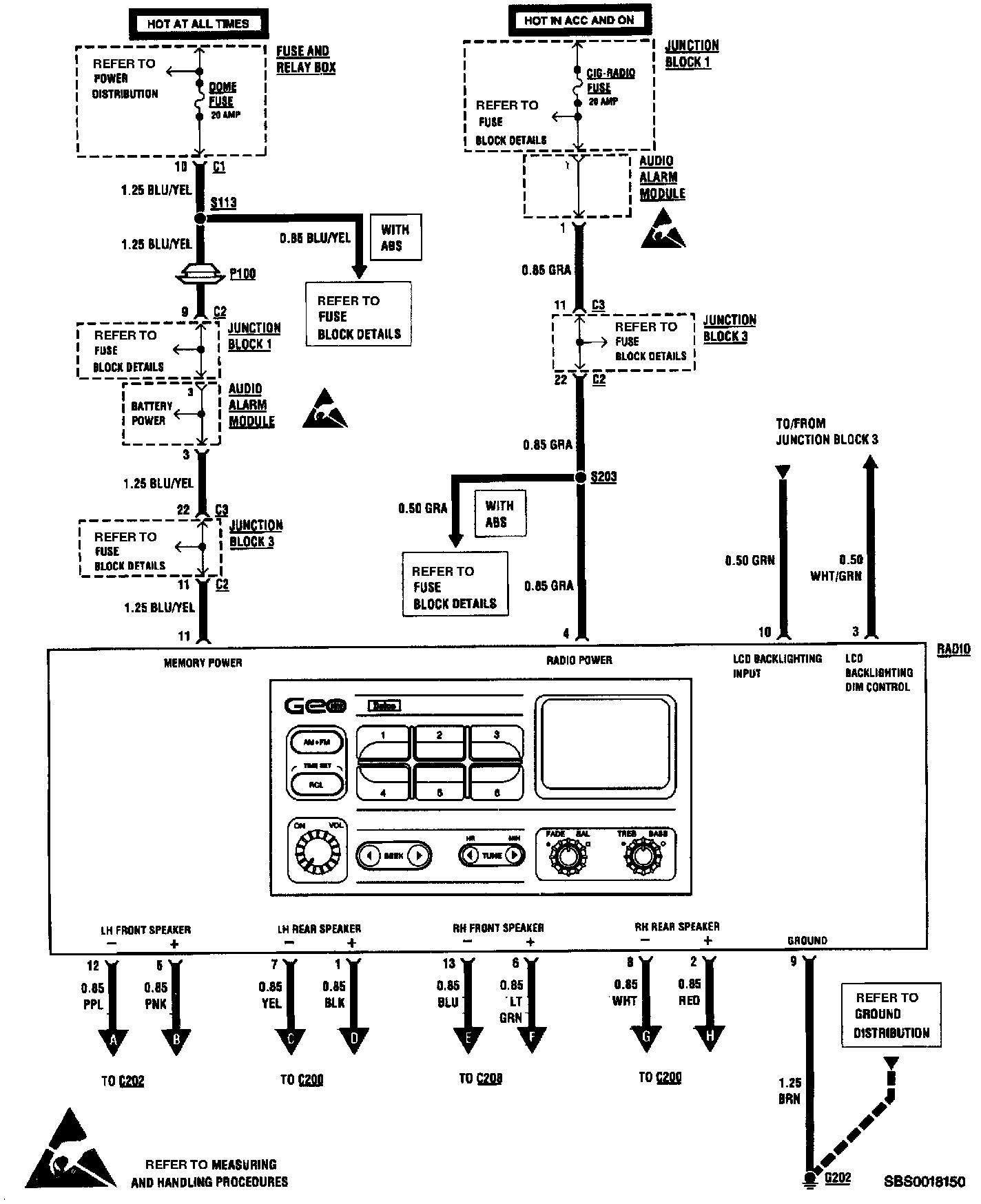

Radio/Audio Systems (Part 1 Of 6):

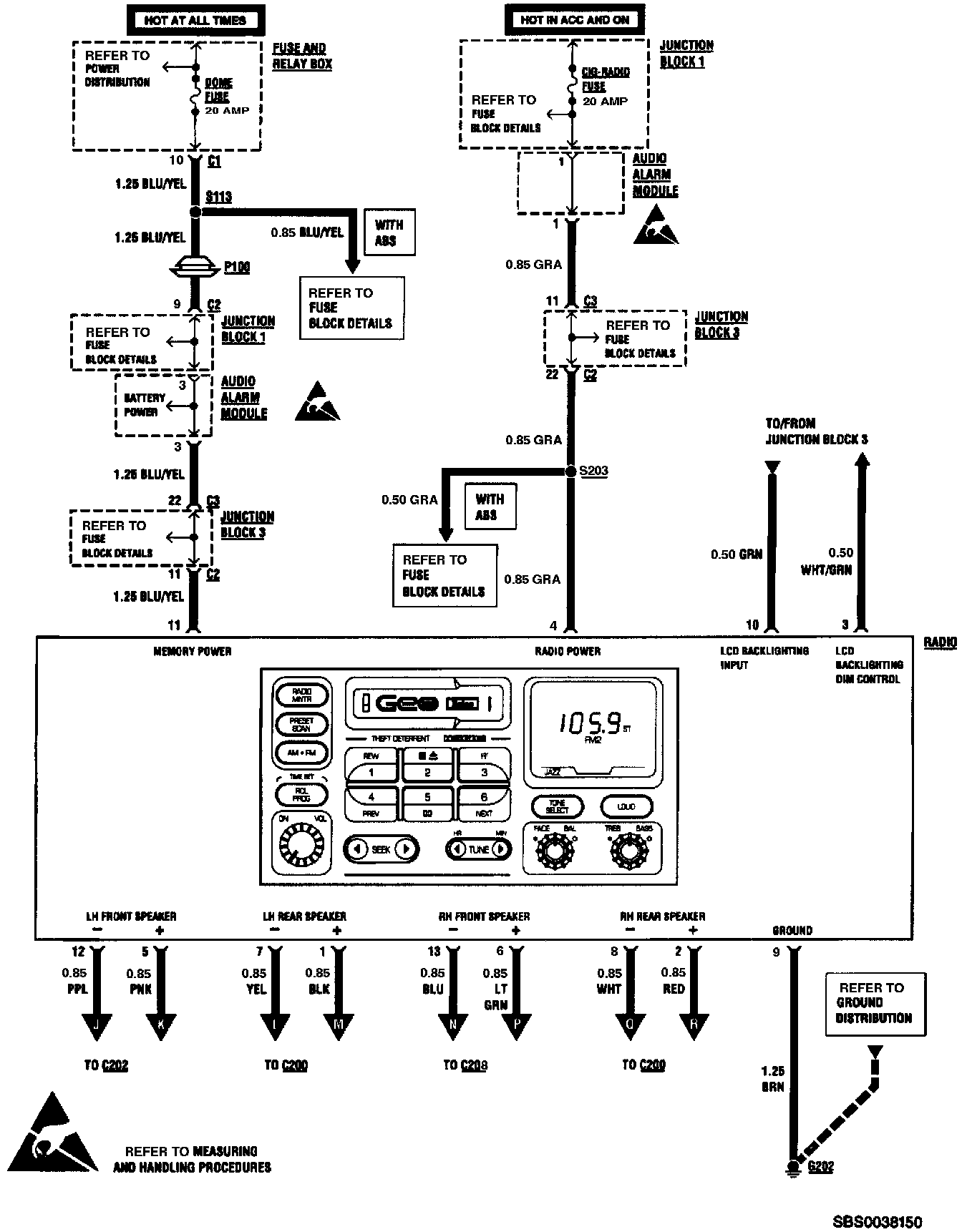

Radio/Audio Systems (Part 2 Of 6):

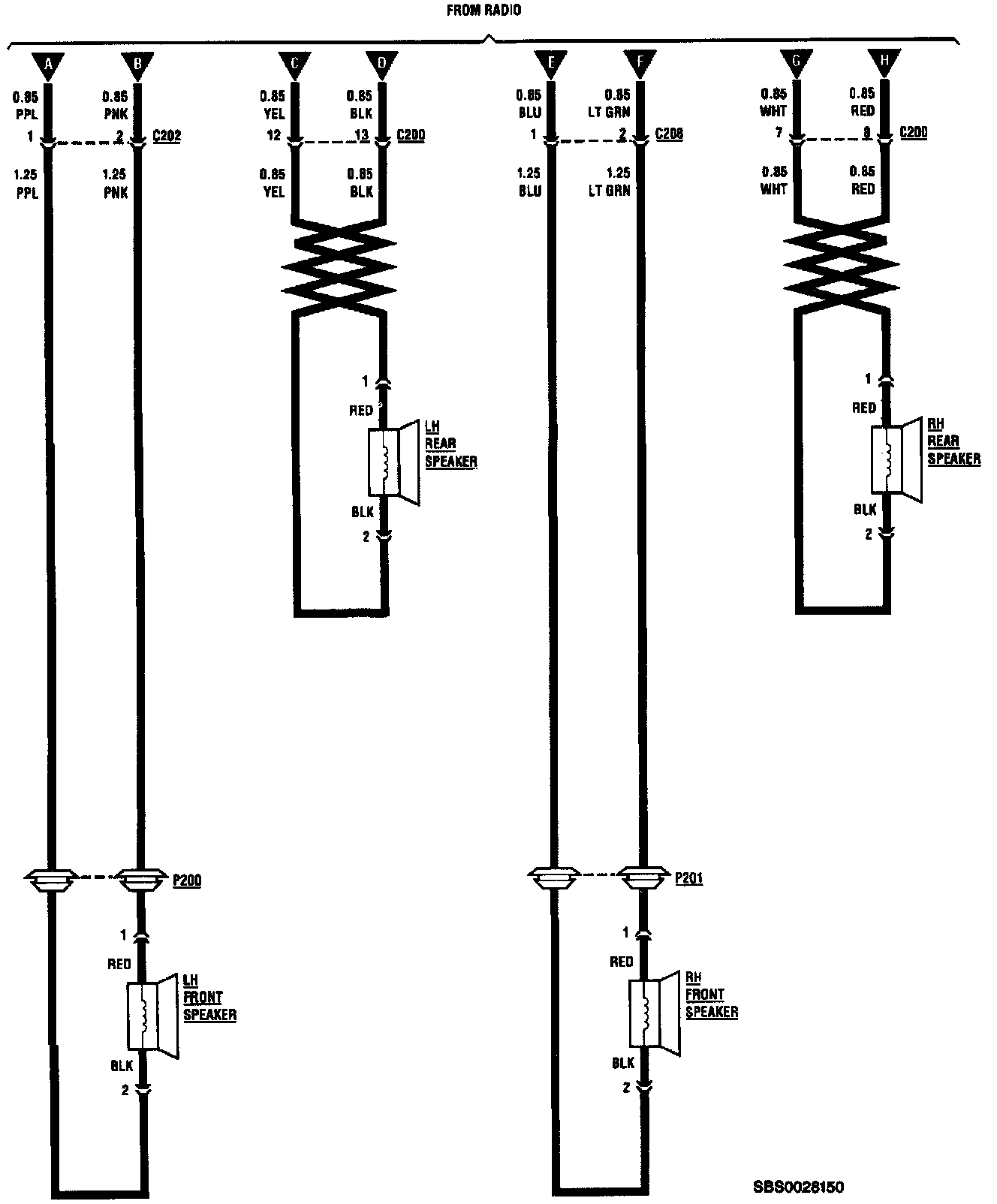

Radio/Audio Systems (Part 3 Of 6):

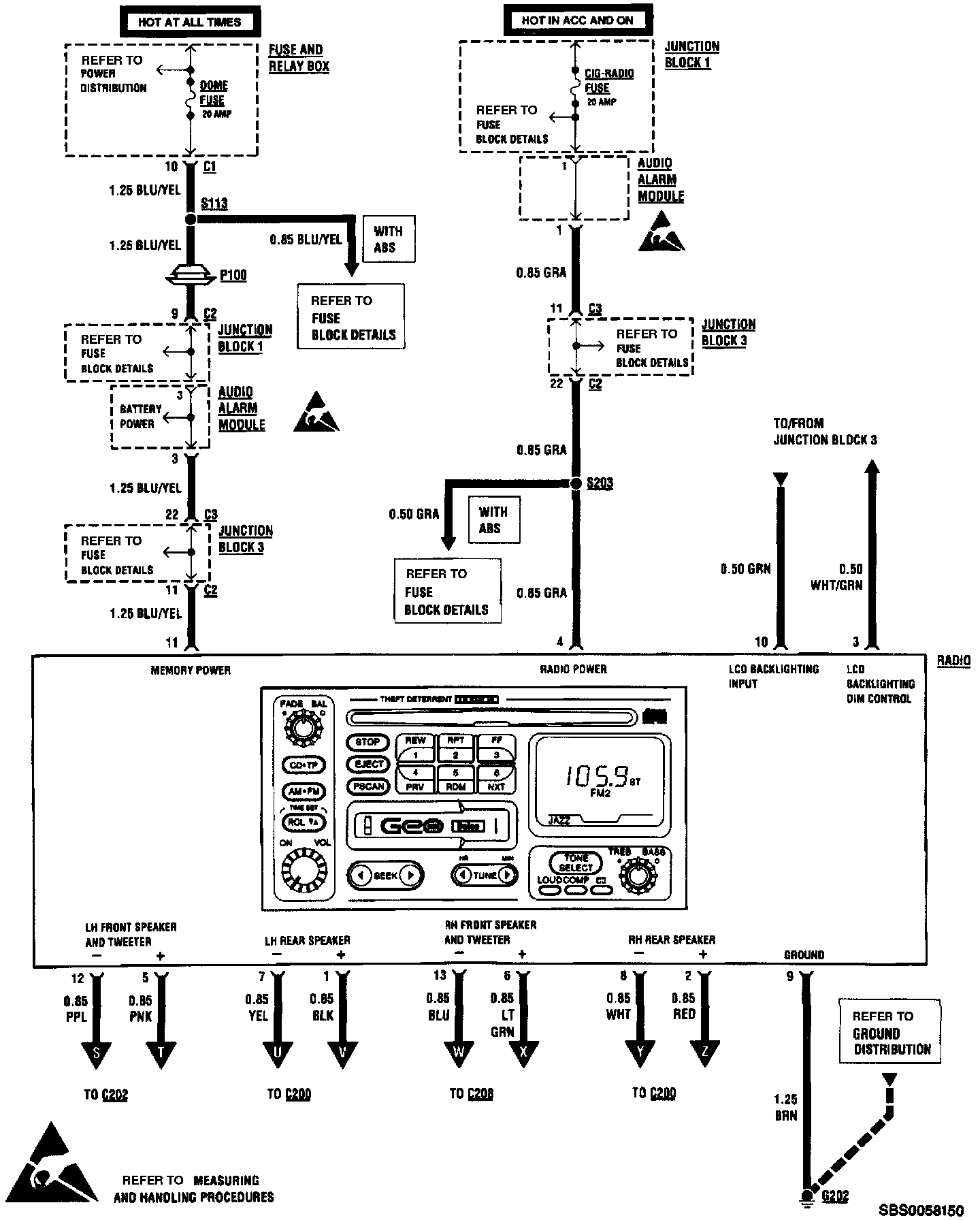

Radio/Audio Systems (Part 4 Of 6):

Radio/Audio Systems (Part 5 Of 6):

Radio/Audio Systems (Part 6 Of 6):
