1995
>>
Prizm L4-097 1.6L DOHC VIN 6 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Harness Routing Views
Harness Routing Views

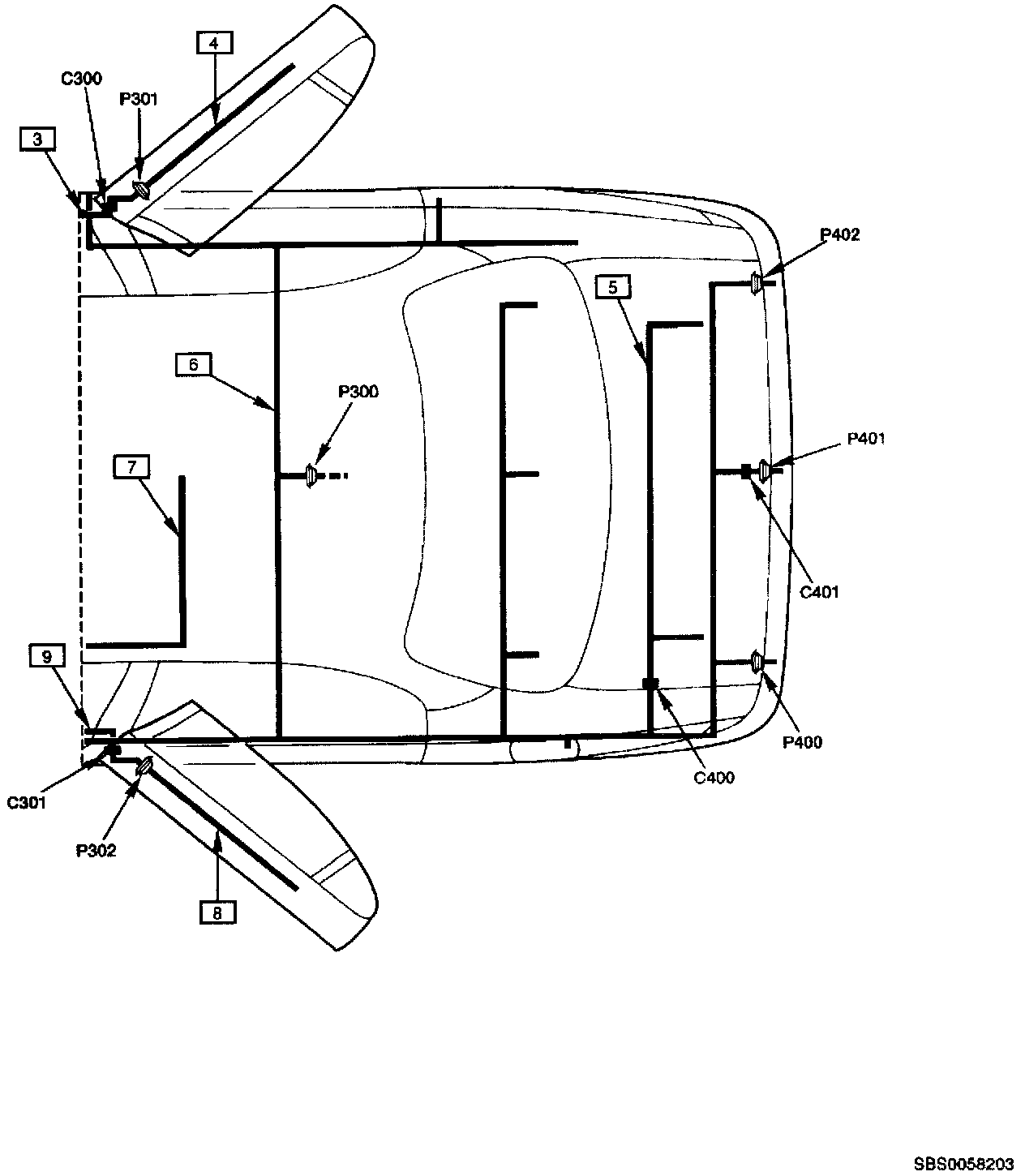

Harness Routing Views (Part 1 Of 2):

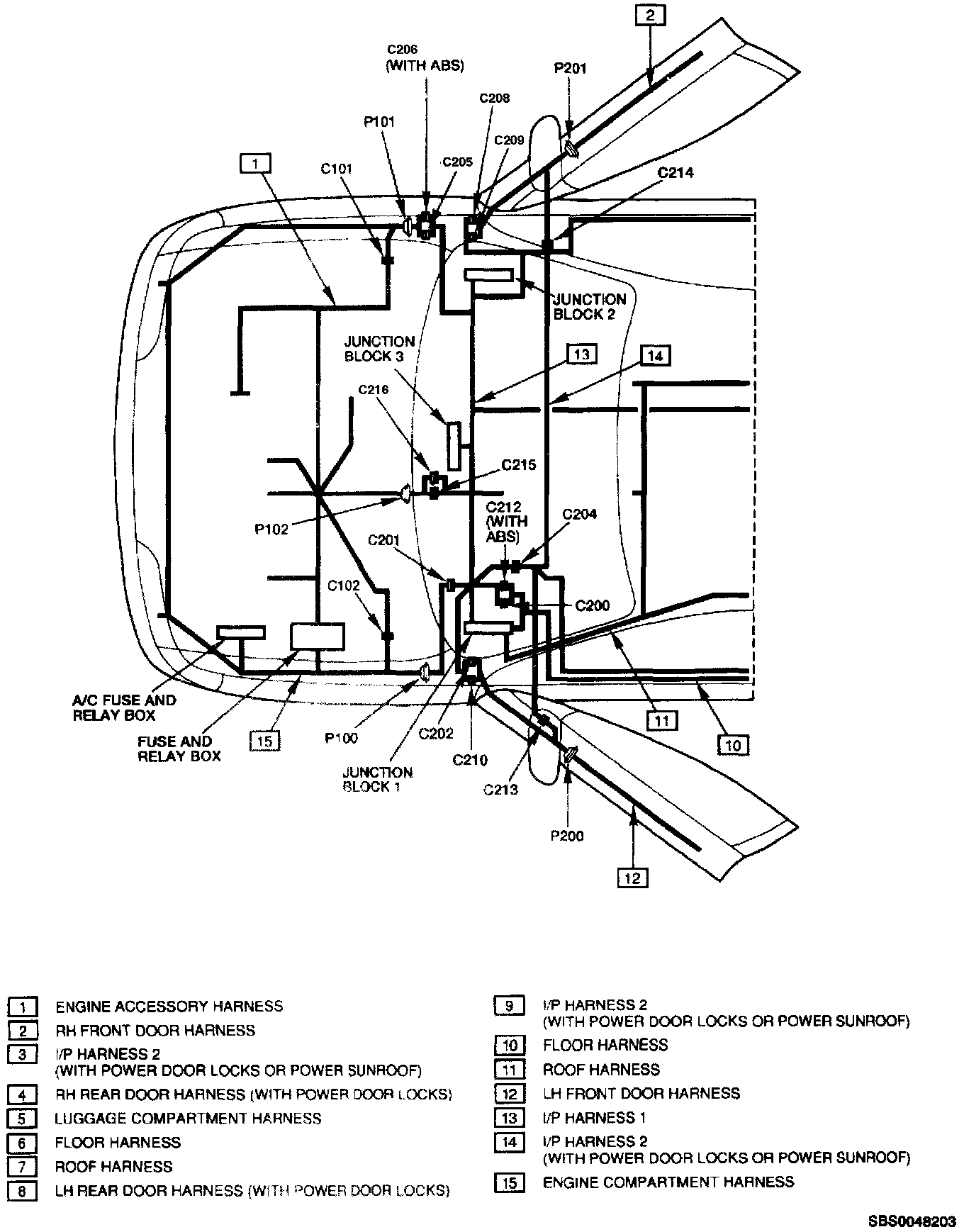

Harness Routing Views (Part 2 Of 2):
