HVAC: Compressor Controls

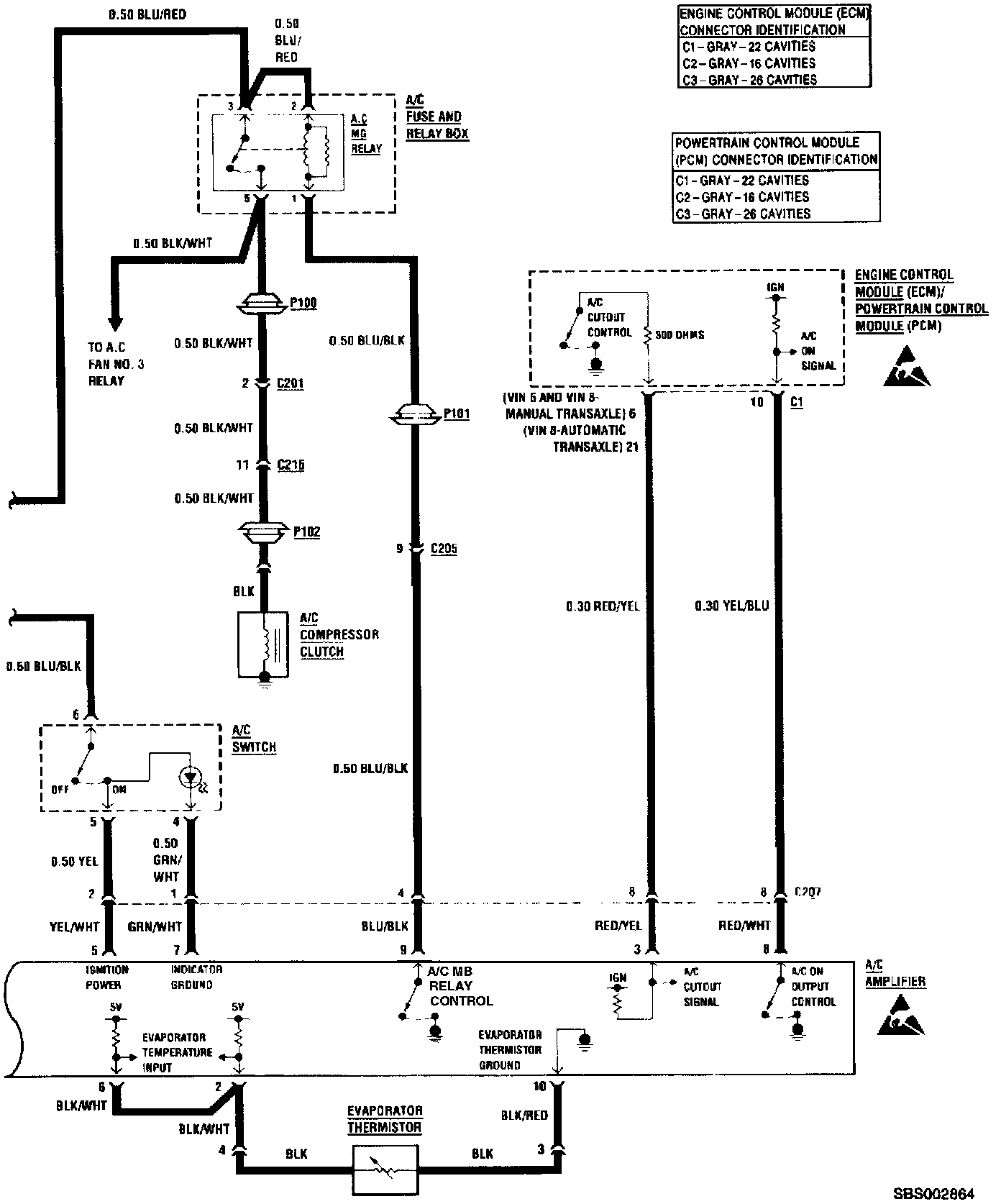

HVAC: Compressor Control (Part 1 Of 2):

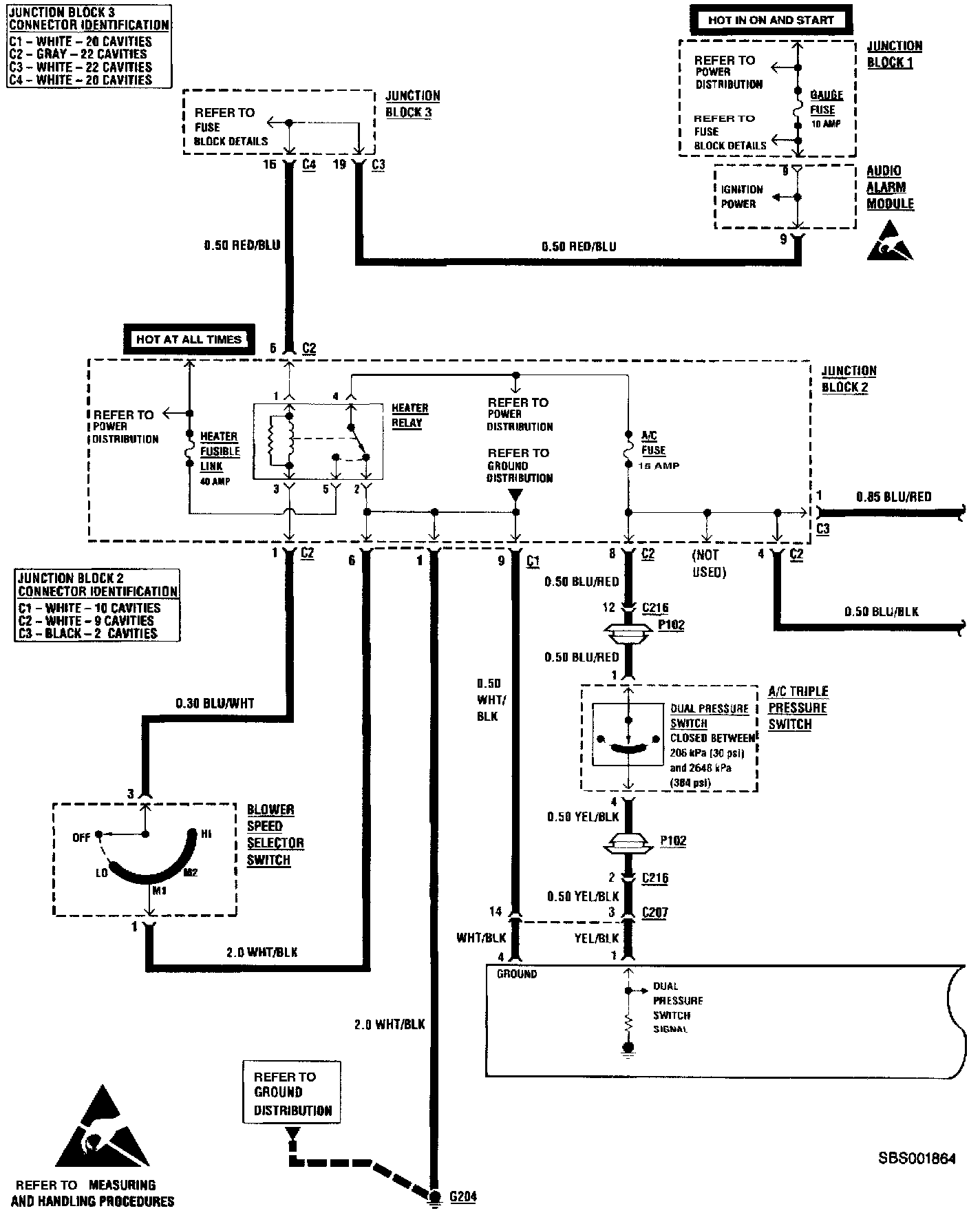

HVAC: Compressor Control (Part 2 Of 2):
