Home >> Geo >> 1995 >> Prizm L4-097 1.6L DOHC VIN 6 MFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Connector Views >> Instrument Cluster Connector - C1

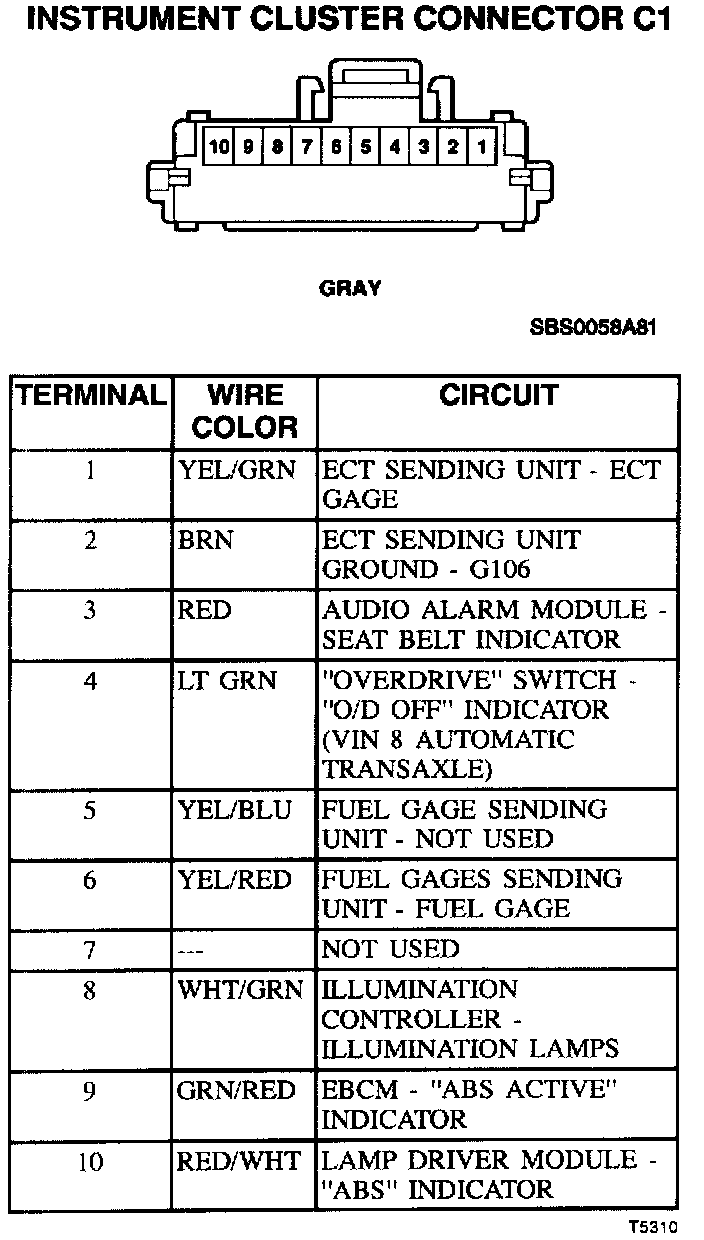

Instrument Cluster Connector - C1

Instrument Cluster Connector - C1:
