Data Link Connector (DLC)

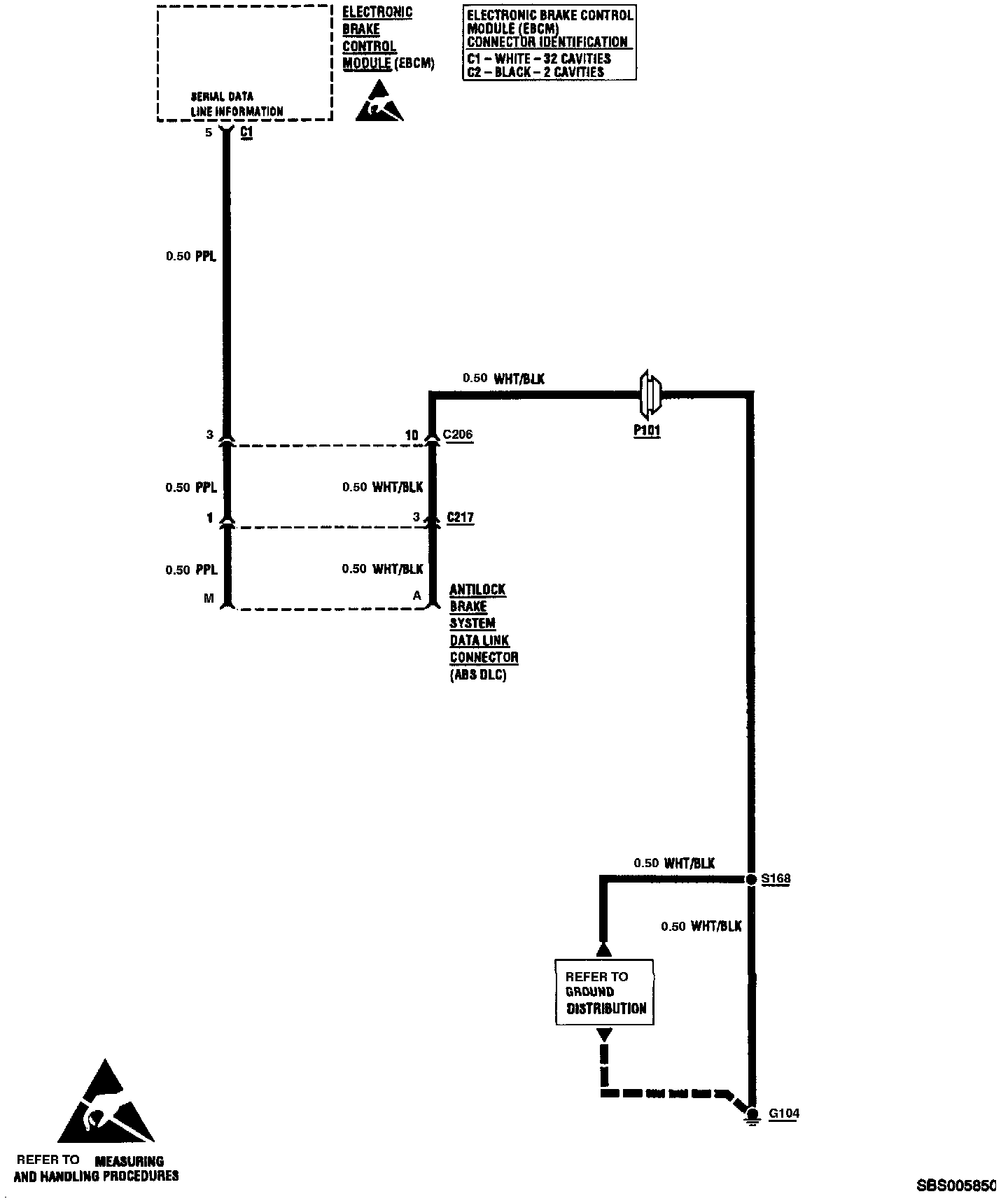

Data Link Connector (DLC) (Part 1 Of 5):

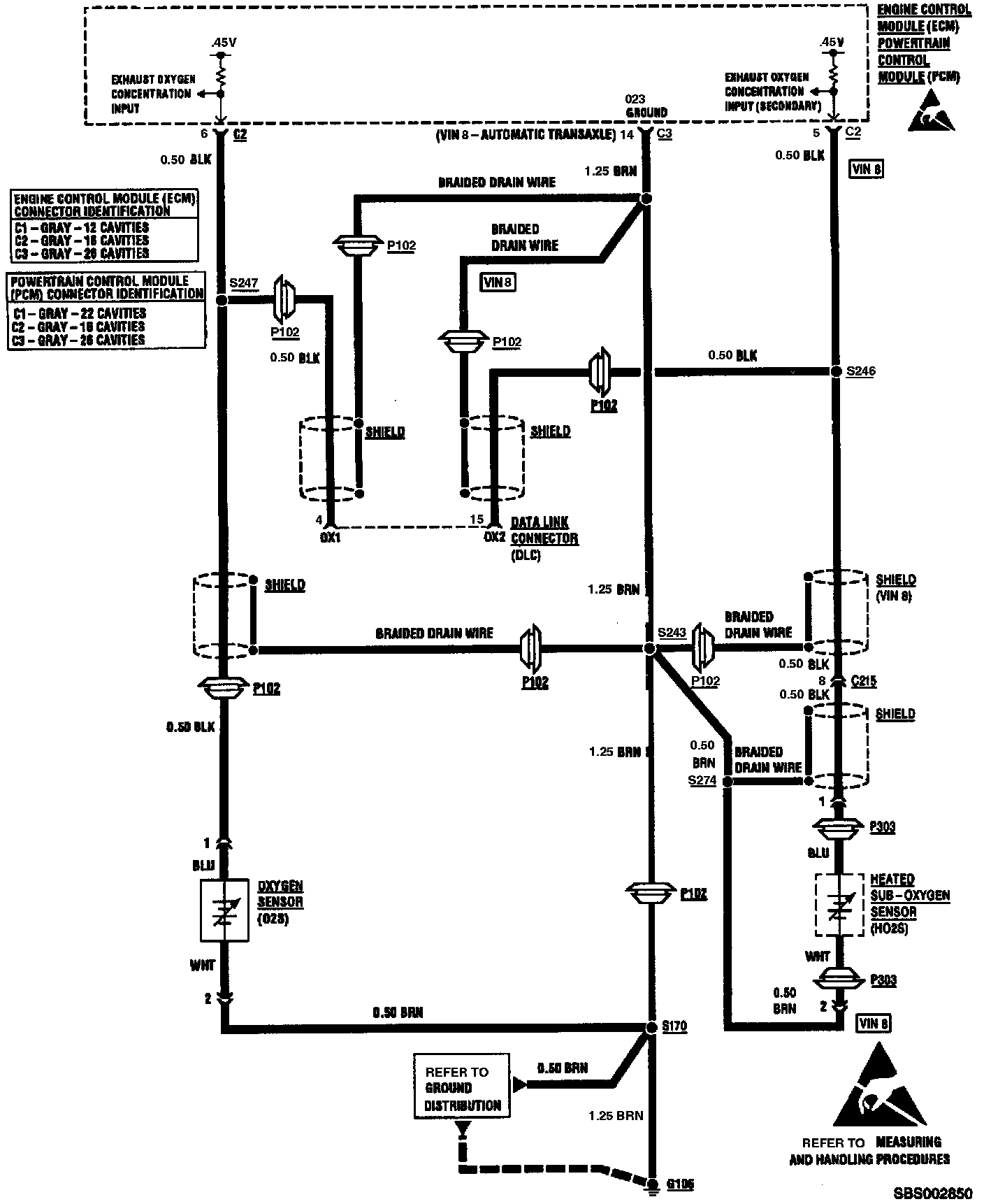

Data Link Connector (DLC) (Part 2 Of 5):




Data Link Connector (DLC) (Part 3 Of 5):




Data Link Connector (DLC) (Part 4 Of 5):




Data Link Connector (DLC) (Part 5 Of 5):
