Home >> Geo >> 1995 >> Prizm L4-097 1.6L DOHC VIN 6 MFI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Data Sensors

Data Sensors

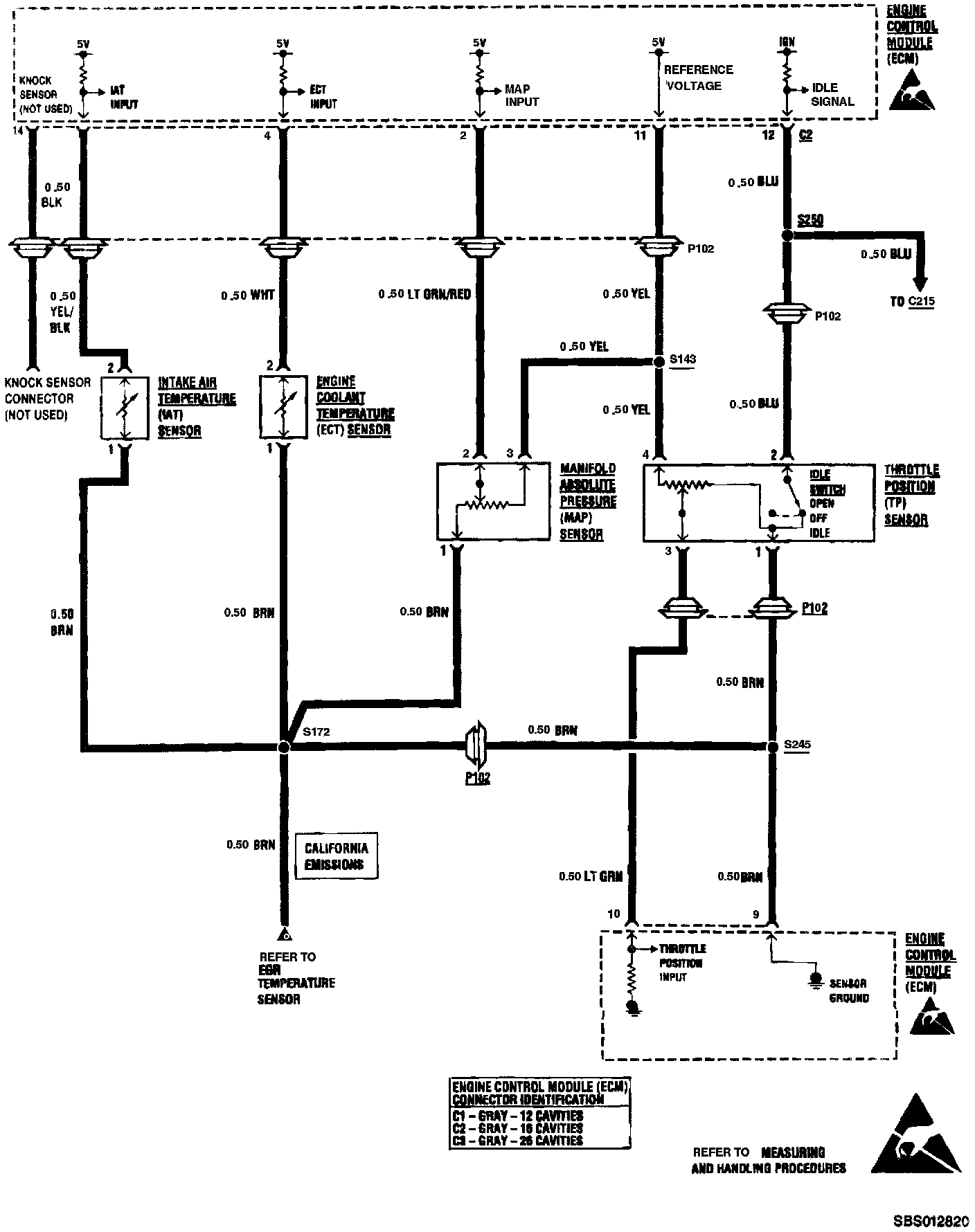

Engine Sensors:

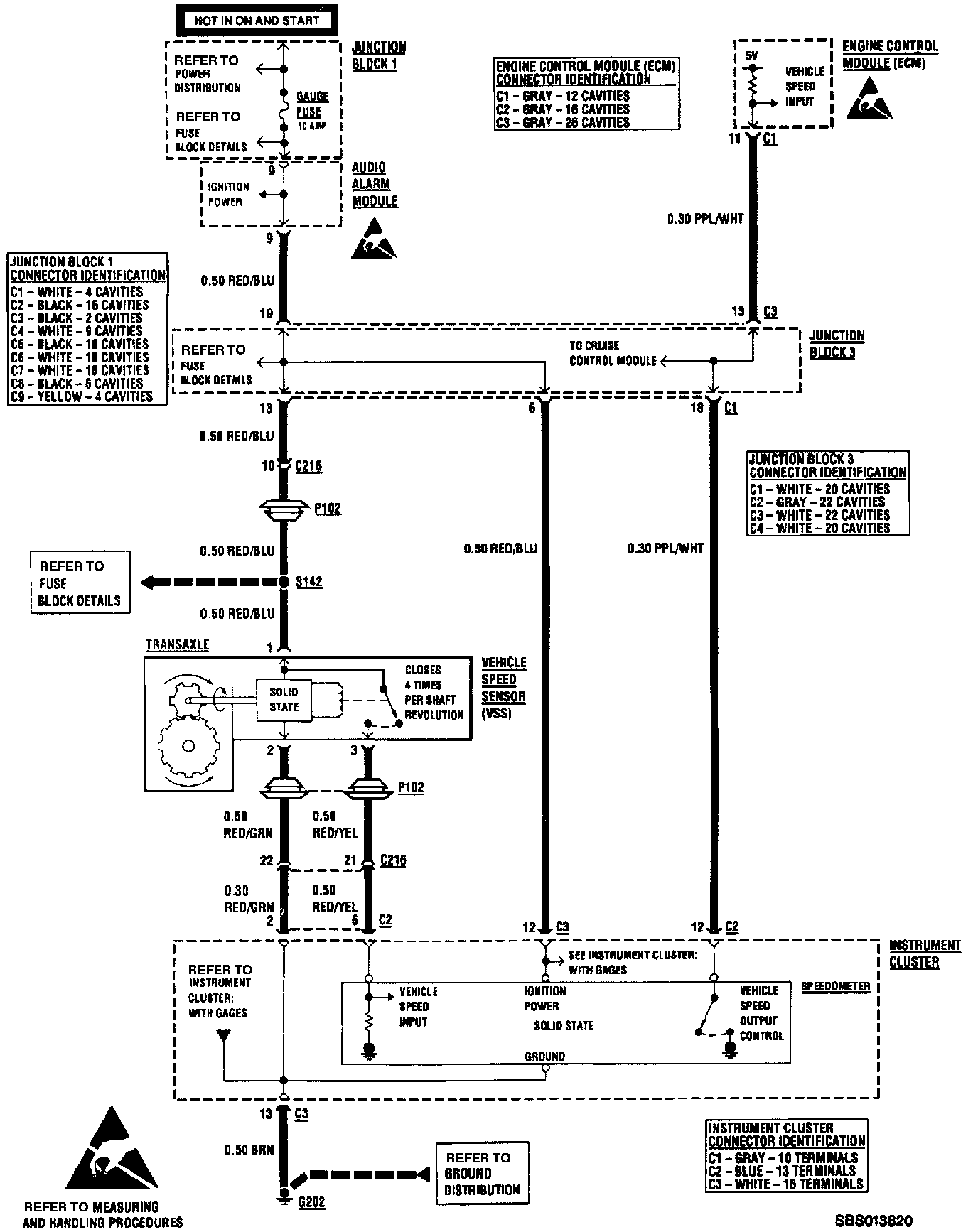

Vehicle Data Sensors:
