Engine Controls Diagrams
Electrical Schematic - Part 1 of 8:
CONNECTOR CIRCUIT
A2 Memory Power
A7 Ignition Power
A8 MIL Control
B7 Test Diagnostic Mode Signal
B8 Fuel Control Feedback Output
B15 Diagnostic Request Signal
C13 Ground
C15 Ground
C26 Ground

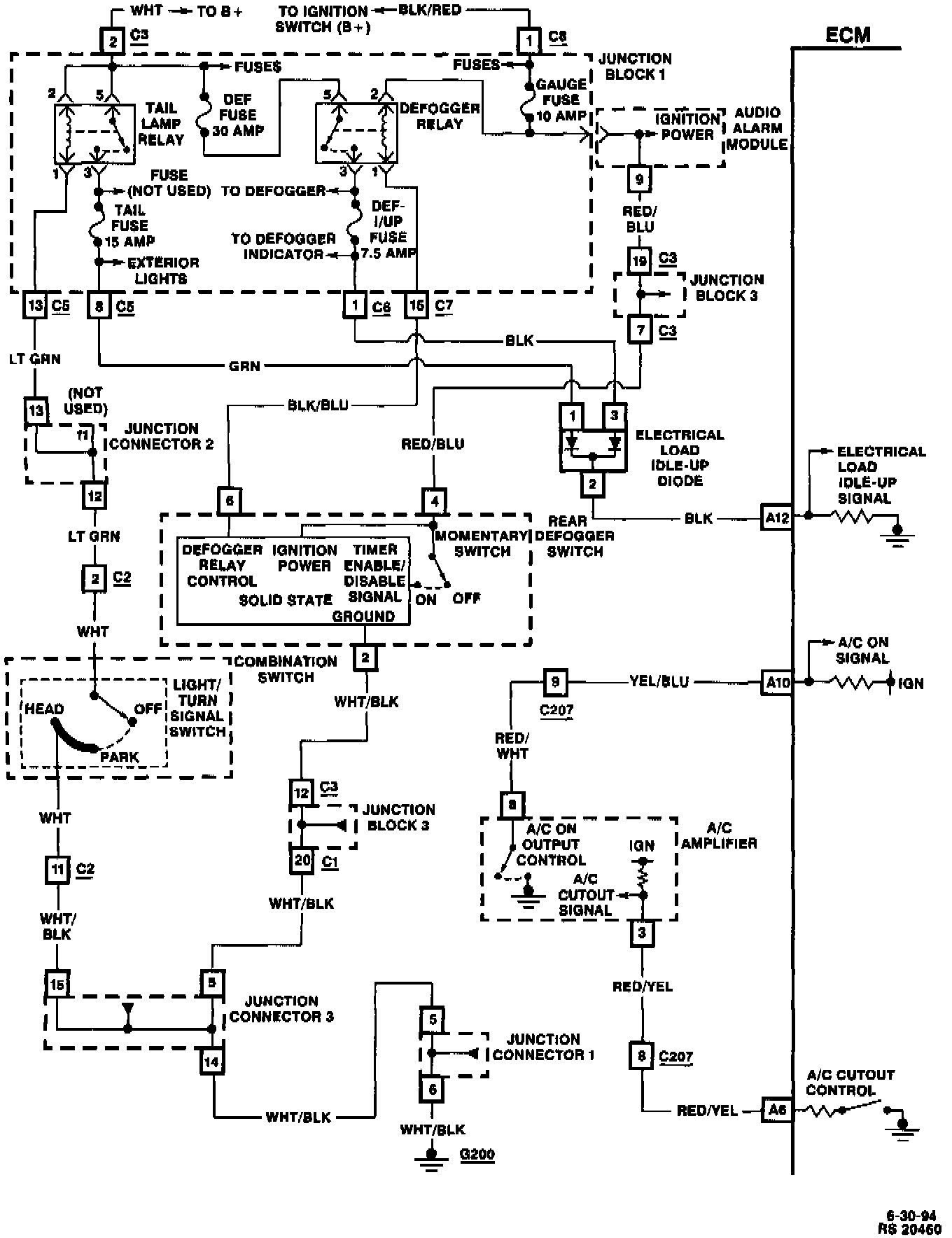

Electrical Schematic - Part 2 of 8:
CONNECTOR CIRCUIT
A6 A/C Cutout Control
A10 A/C On Signal
A12 Electrical Load Idle-Up Signal

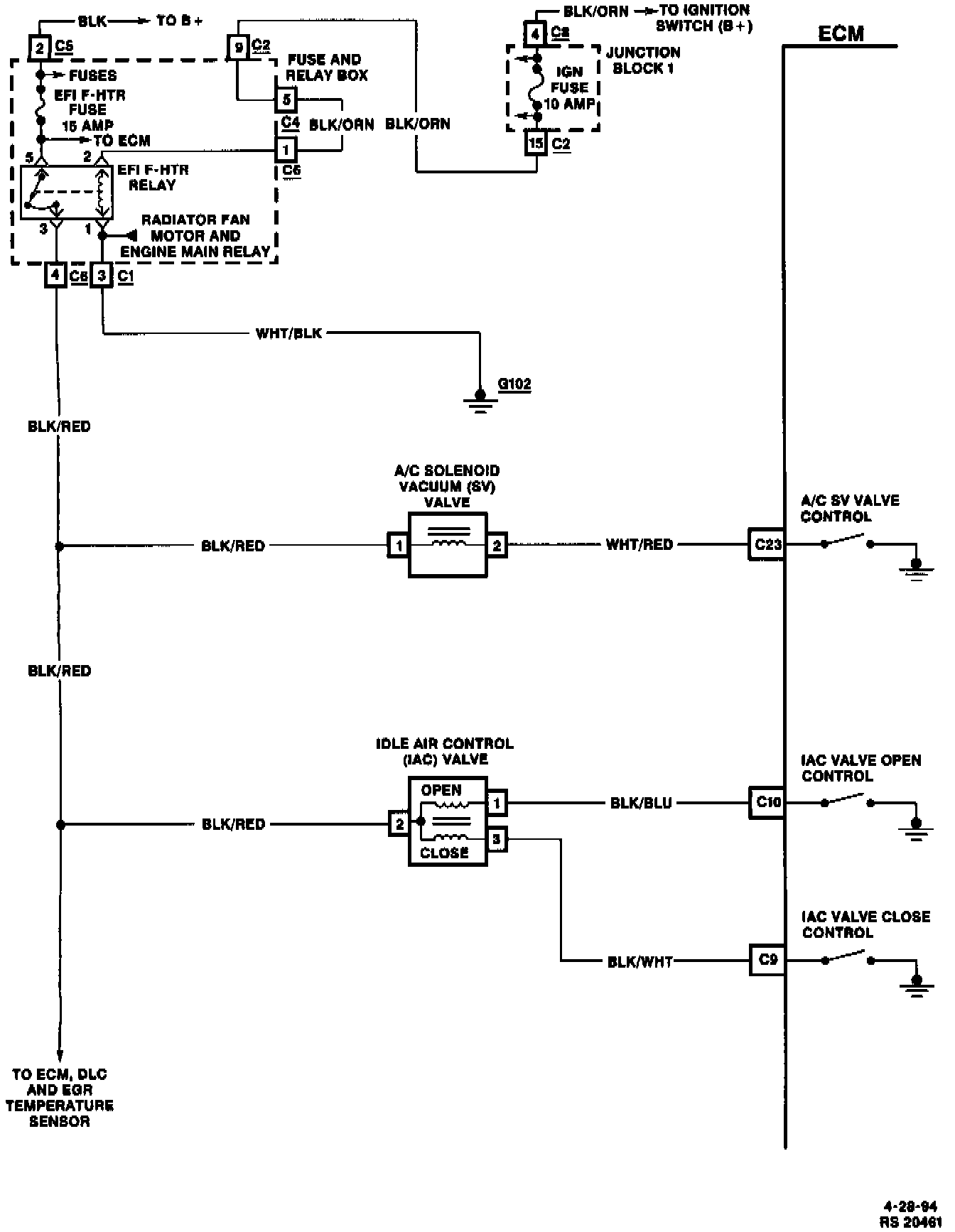

Electrical Schematic - Part 3 of 8:
CONNECTOR CIRCUIT
C9 IAC Valve Close Control
C10 IAC Valve Open Control
C23 A/C SV Valve Control
Electrical Schematic - Part 4 of 8:
CONNECTOR CIRCUIT
A4 Circuit Opening Relay Control
Electrical Schematic - Part 5 of 8:
CONNECTOR CIRCUIT
C12 Fuel Injector No. 1 and No. 3 Control
C25 Fuel Injector No. 2 and No. 4 Control
Electrical Schematic - Part 6 of 8:
CONNECTOR CIRCUIT
C2 Crank Signal
C3 Ignition Fail-Safe Signal Input
C4 Crank Angle Input High
C5 Camshaft Position Input High
C15 Park/Neutral Signal
C17 Crank Angle Input Low
C18 Camshaft Position Input Low
C22 Ignition Signal

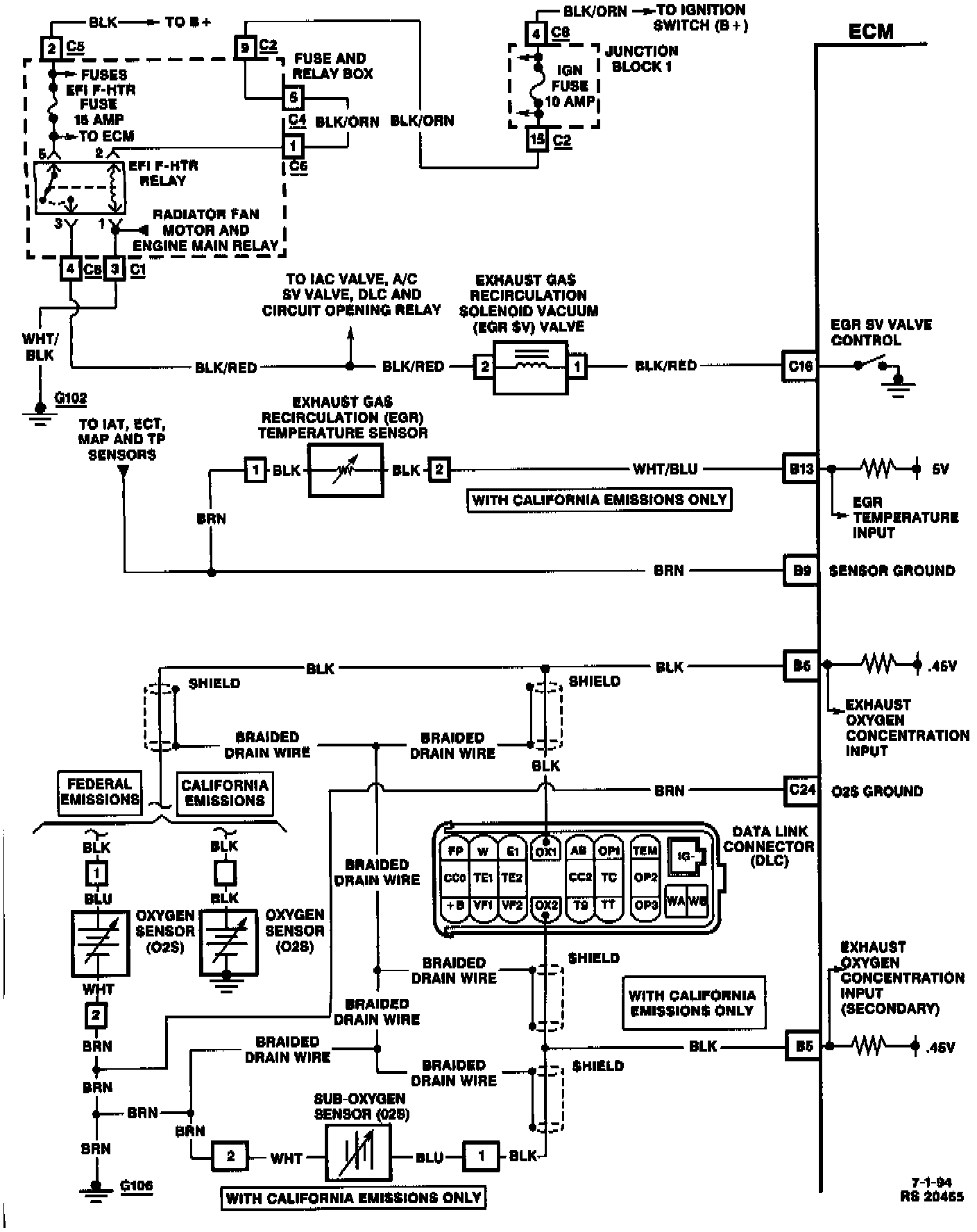

Electrical Schematic - Part 7 of 8:
CONNECTOR CIRCUIT
B5 Exhaust Oxygen Concentration Secondary Input
B6 Exhaust Oxygen Concentration Input
B9 Sensor Ground
B13 EGR Temperature Input
C16 EGR SV Valve Control
C24 O2S Ground

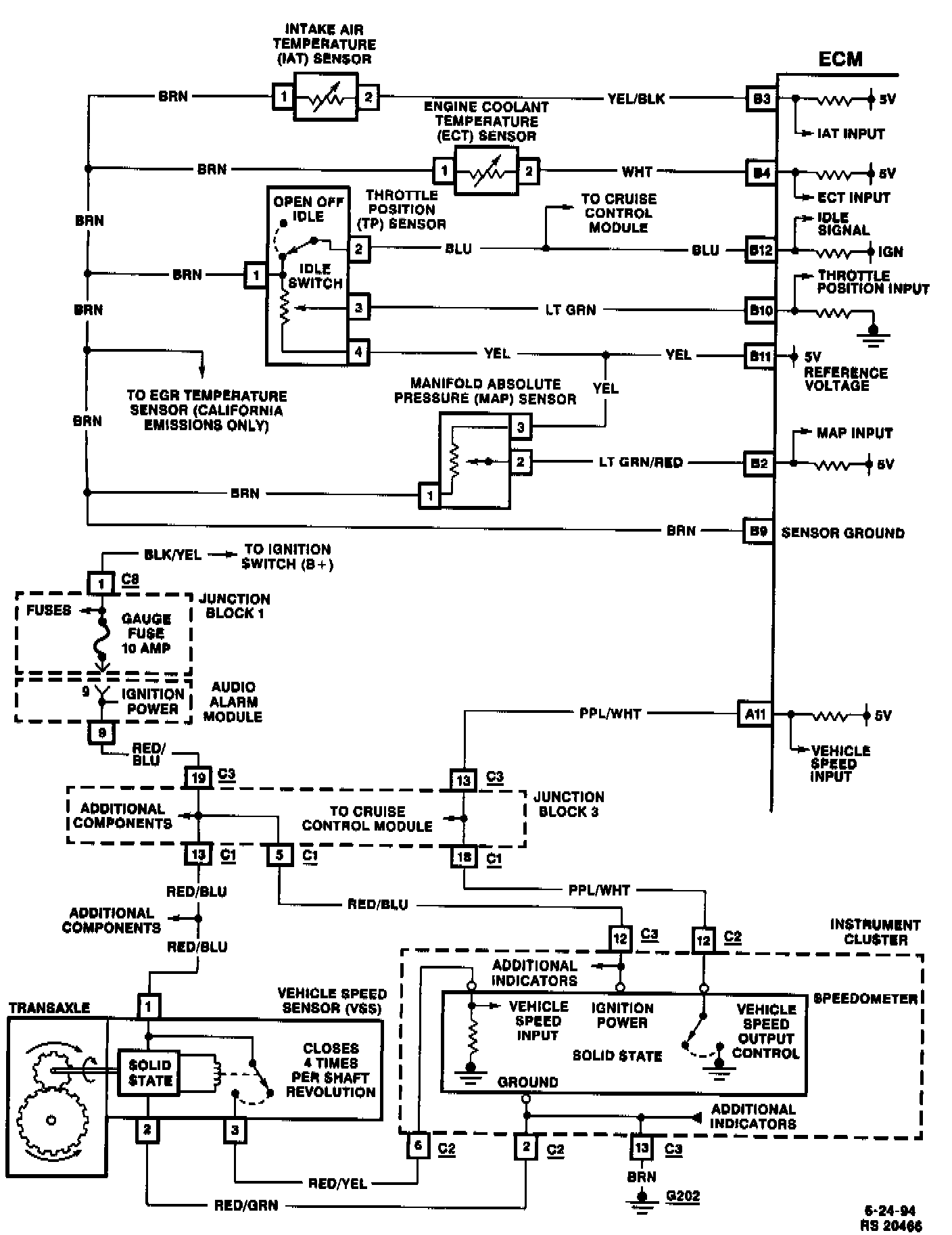

Electrical Schematic - Part 8 of 8:
CONNECTOR CIRCUIT
A11 Vehicle Speed Input
B2 MAP Input
B3 IAT Input
B4 ECT Input
B9 Sensor Ground
B10 Throttle Position Input
B11 5V Reference Voltage
B12 Idle Signal
