1995
>>
Prizm L4-097 1.6L DOHC VIN 6 MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition Controls
Ignition Controls

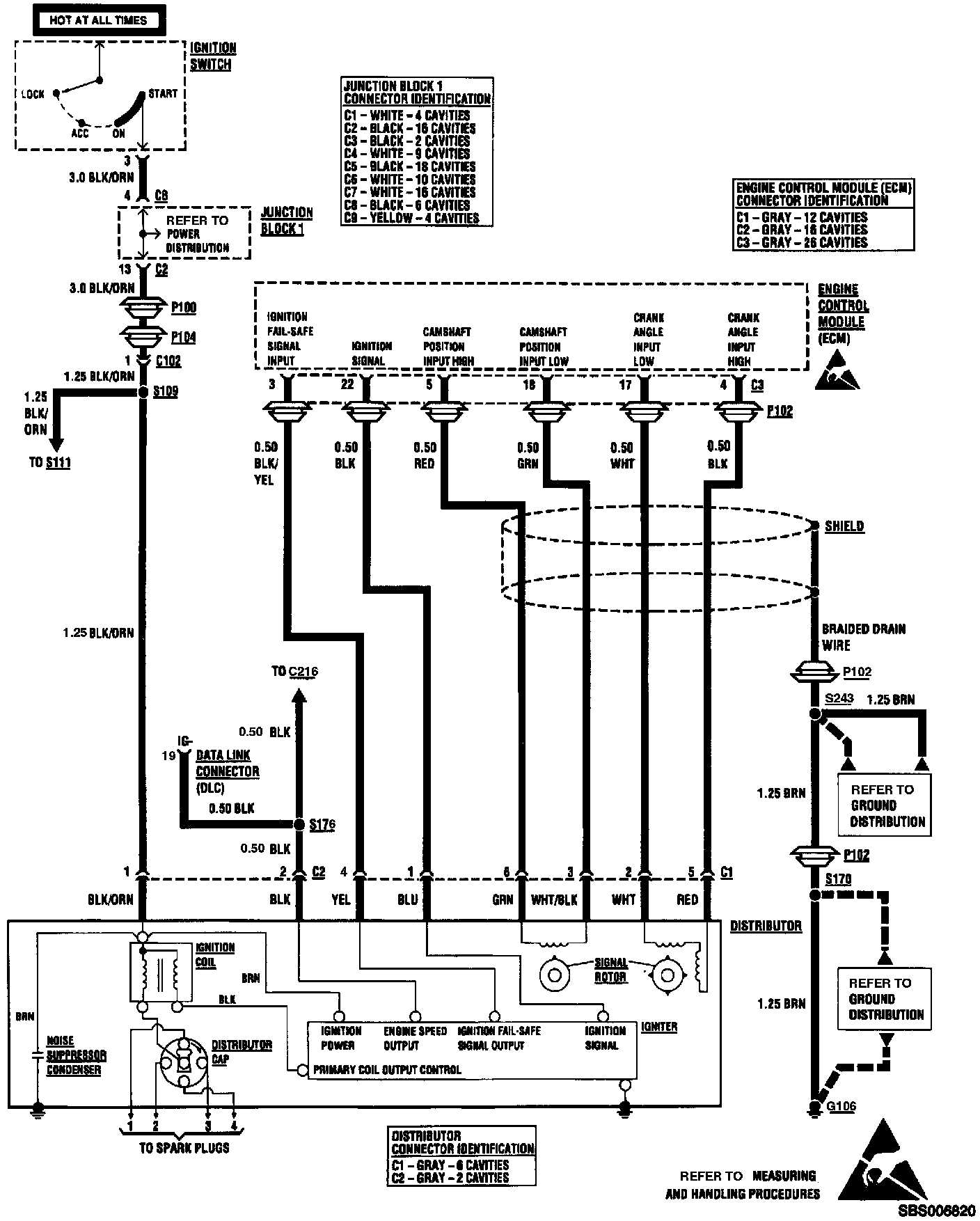

Ignition (Part 1 Of 2):

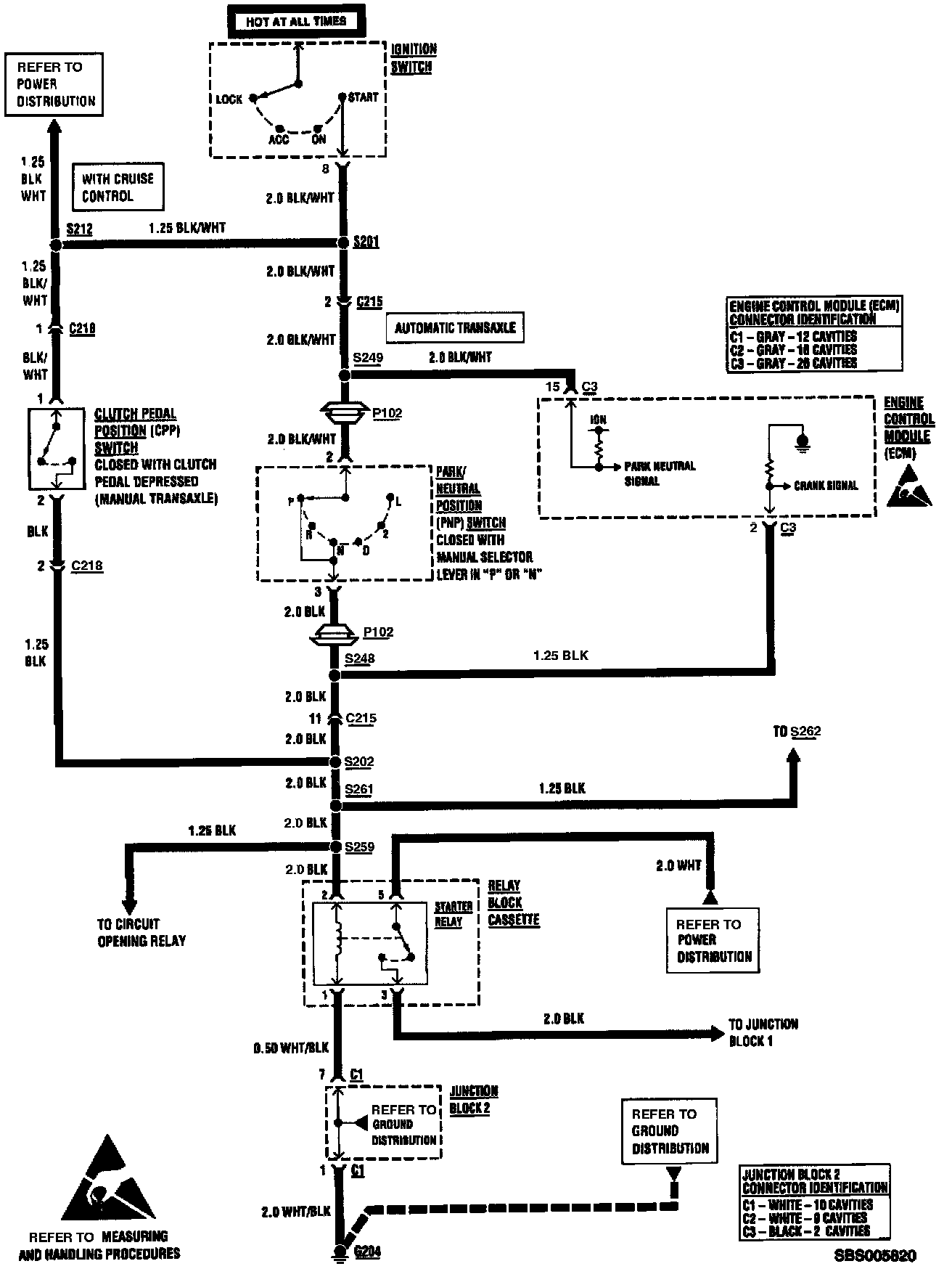

Ignition (Part 2 Of 2):
Distributor Ignition System:
