Code 9B-5B Cruise Control Cancel Switch

Code 9B-5B Cruise Control Cancel Switch part 1 and 2

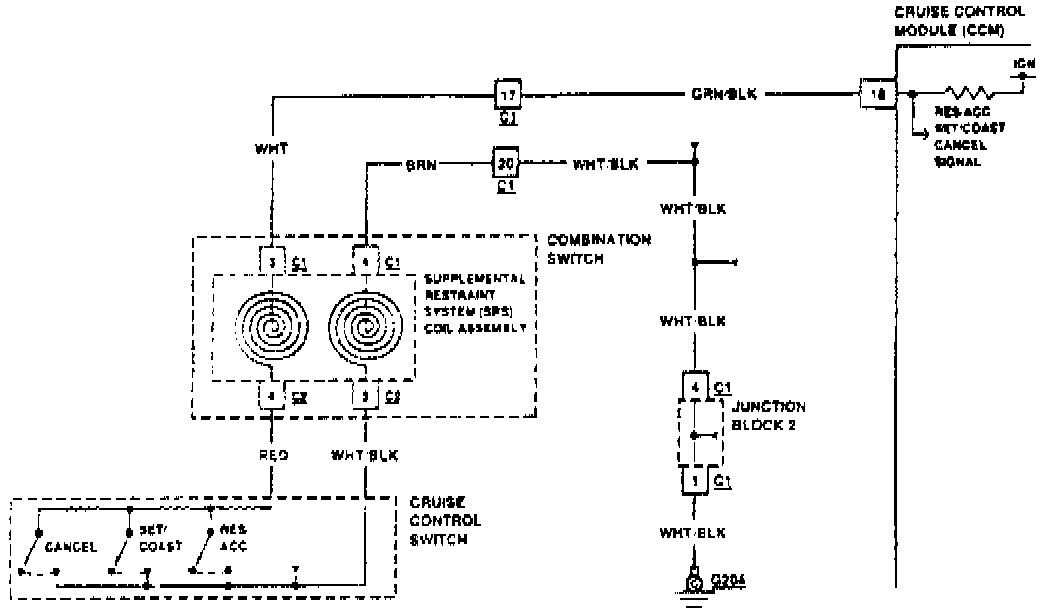

Fig. 12 Code 9B-5B: Cruise Control Cancel Switch Circuit (Part 1 Of 2).:




Fig. 12 Code 9B-5B: Cruise Control Cancel Switch Circuit (Part 2 Of 2).:
