Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
>>
Knock Sensor
Knock Sensor

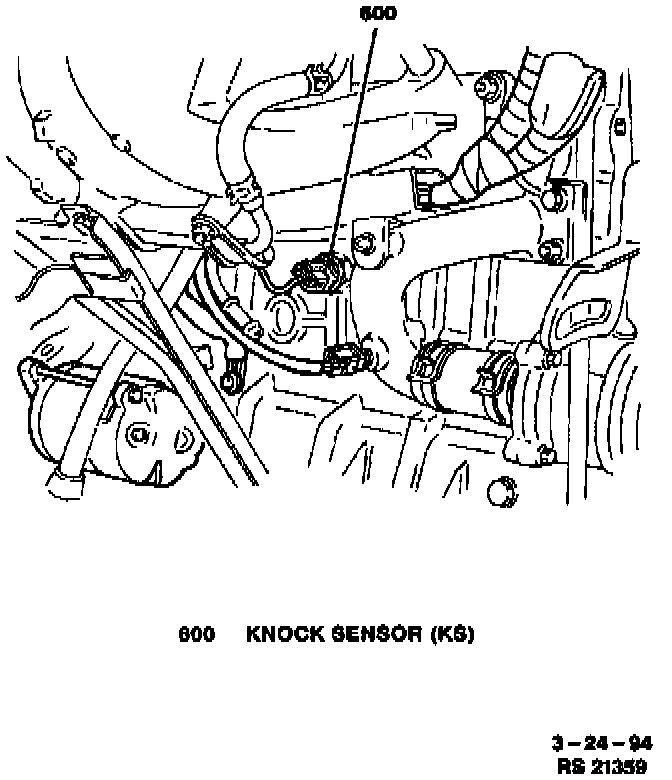

RH Rear Of Engine:

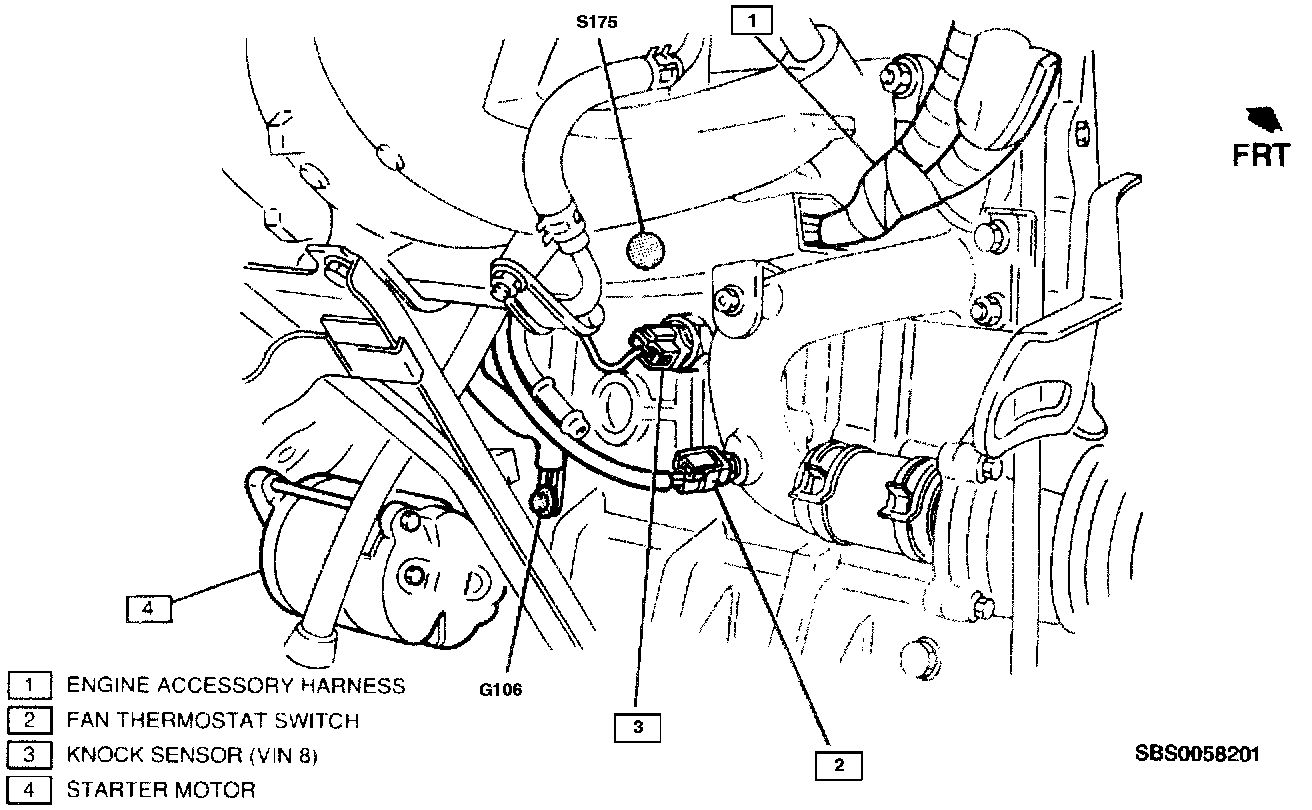

Knock Sensor:
