Engine Controls Diagrams

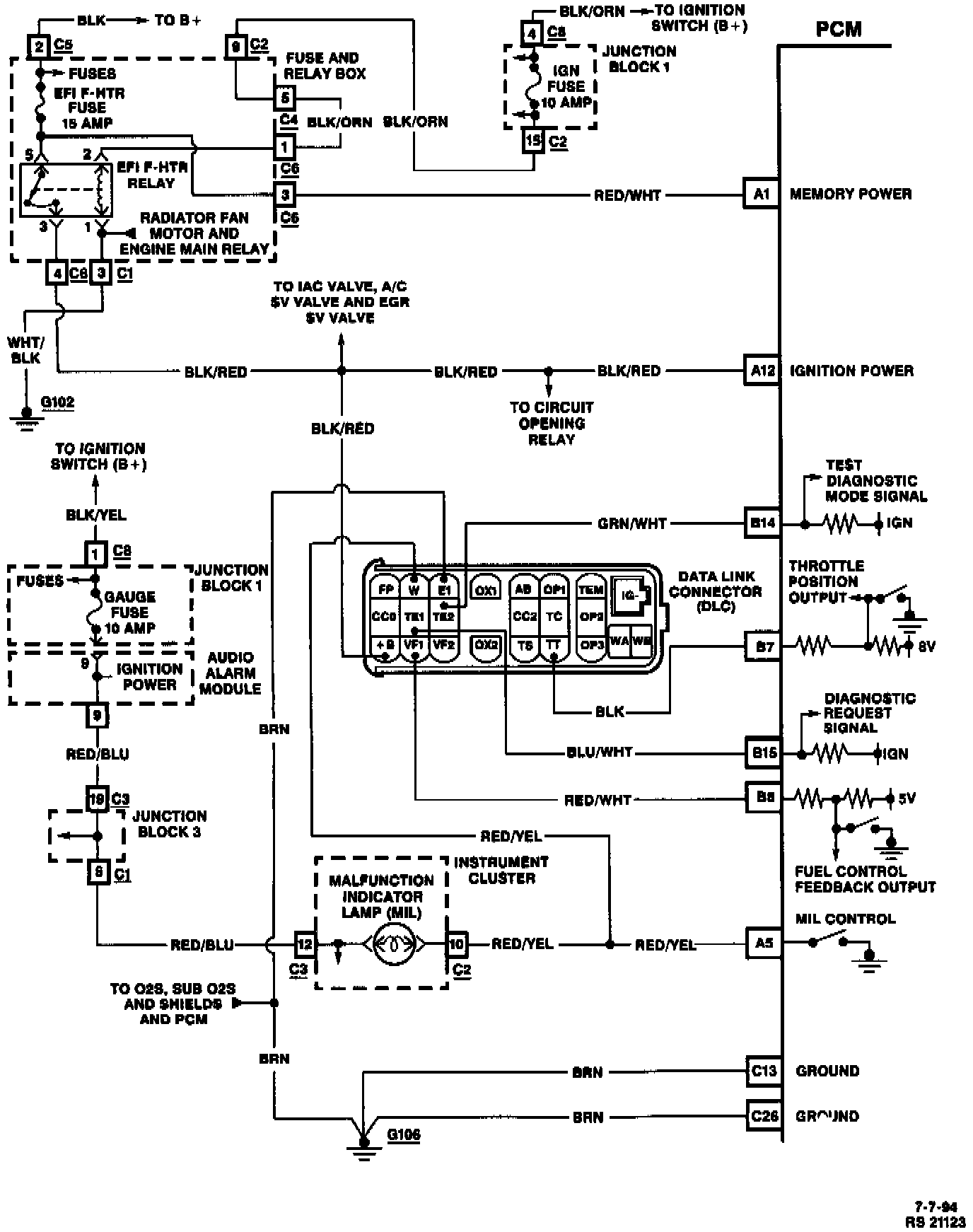

Electrical Schematic (1 of 9):
CONNECTOR CIRCUIT
A1 Memory Power
A5 MIL Control
A12 Ignition Power
B7 Throttle Position Output
B8 Fuel Control Feedback Output
B14 Test Diagnostic Mode Signal
B15 Diagnostic Request Signal
C13 Ground
C26 Ground

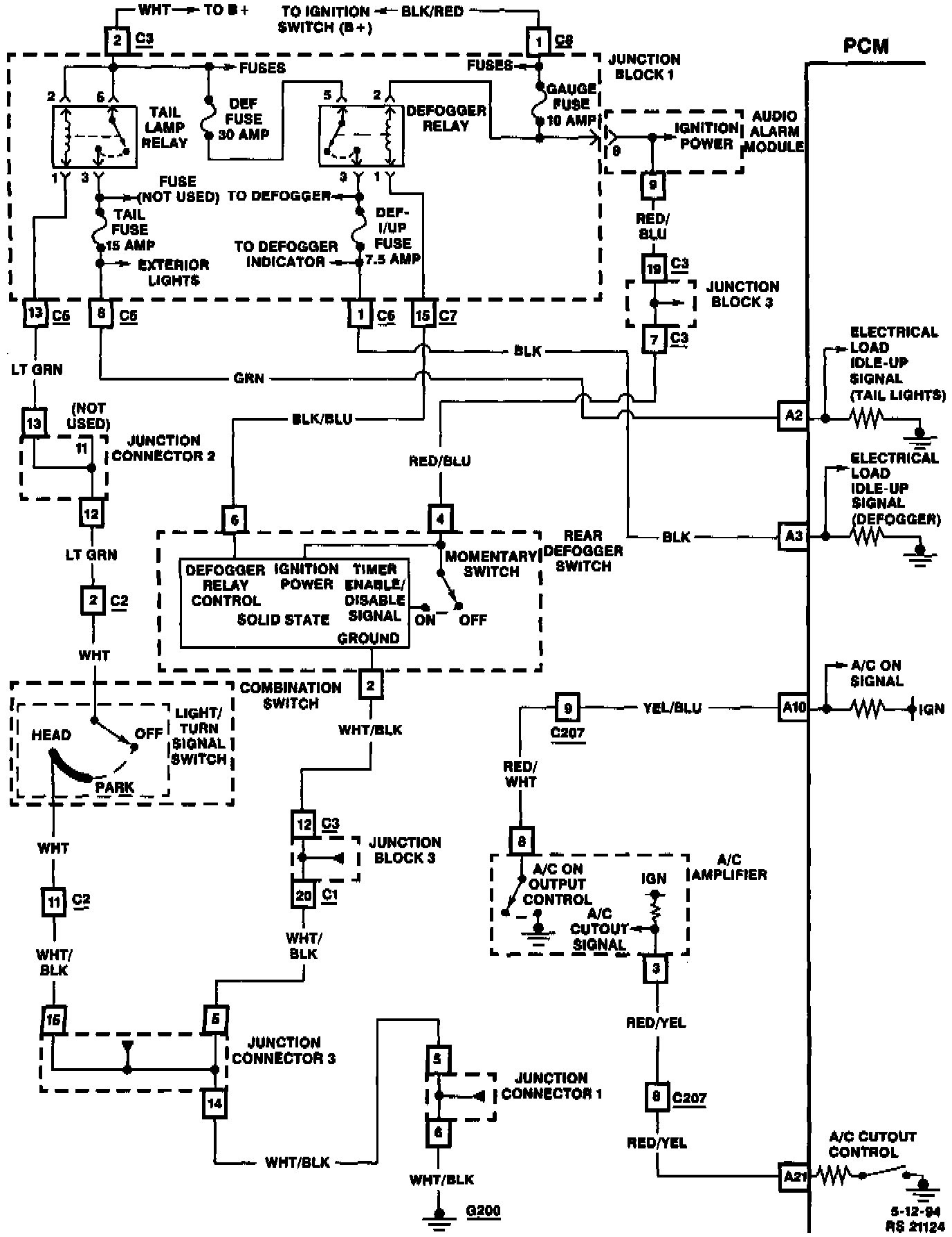

Electrical Schematic (2 of 9):
CONNECTOR CIRCUIT
A2 Electrical Load Idle-Up Signal (Tail Lights)
A3 Electrical Load Idle-Up Signal (Defogger)
A10 A/C On Signal
A21 A/C Cutout Control
Electrical Schematic (3 of 9):
CONNECTOR CIRCUIT
C9 IAC Valve Close Control
C10 IAC Valve Open Control
C21 A/C SV Valve Control

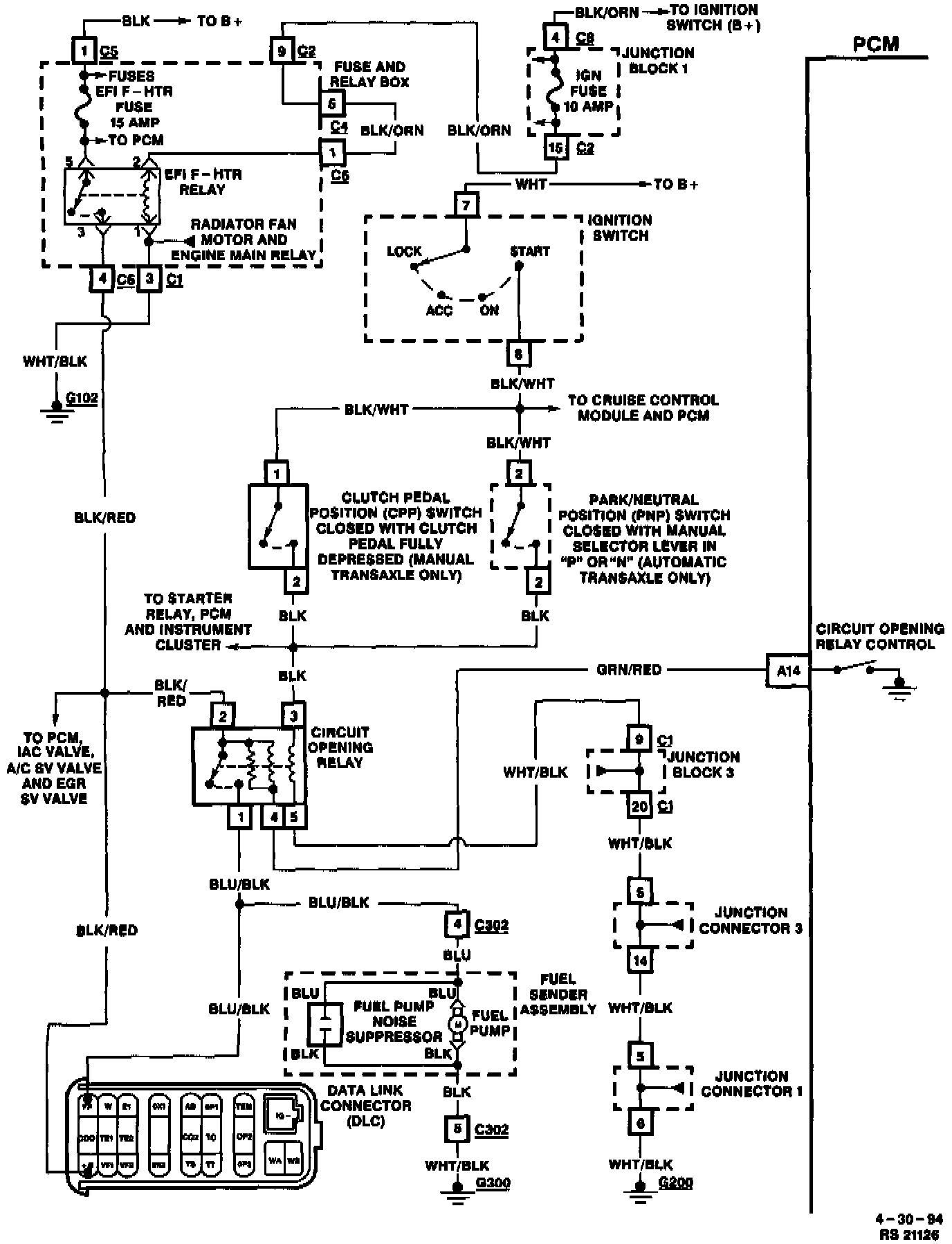

Electrical Schematic (4 of 9):
CONNECTOR CIRCUIT
A14 Circuit Opening Relay Control

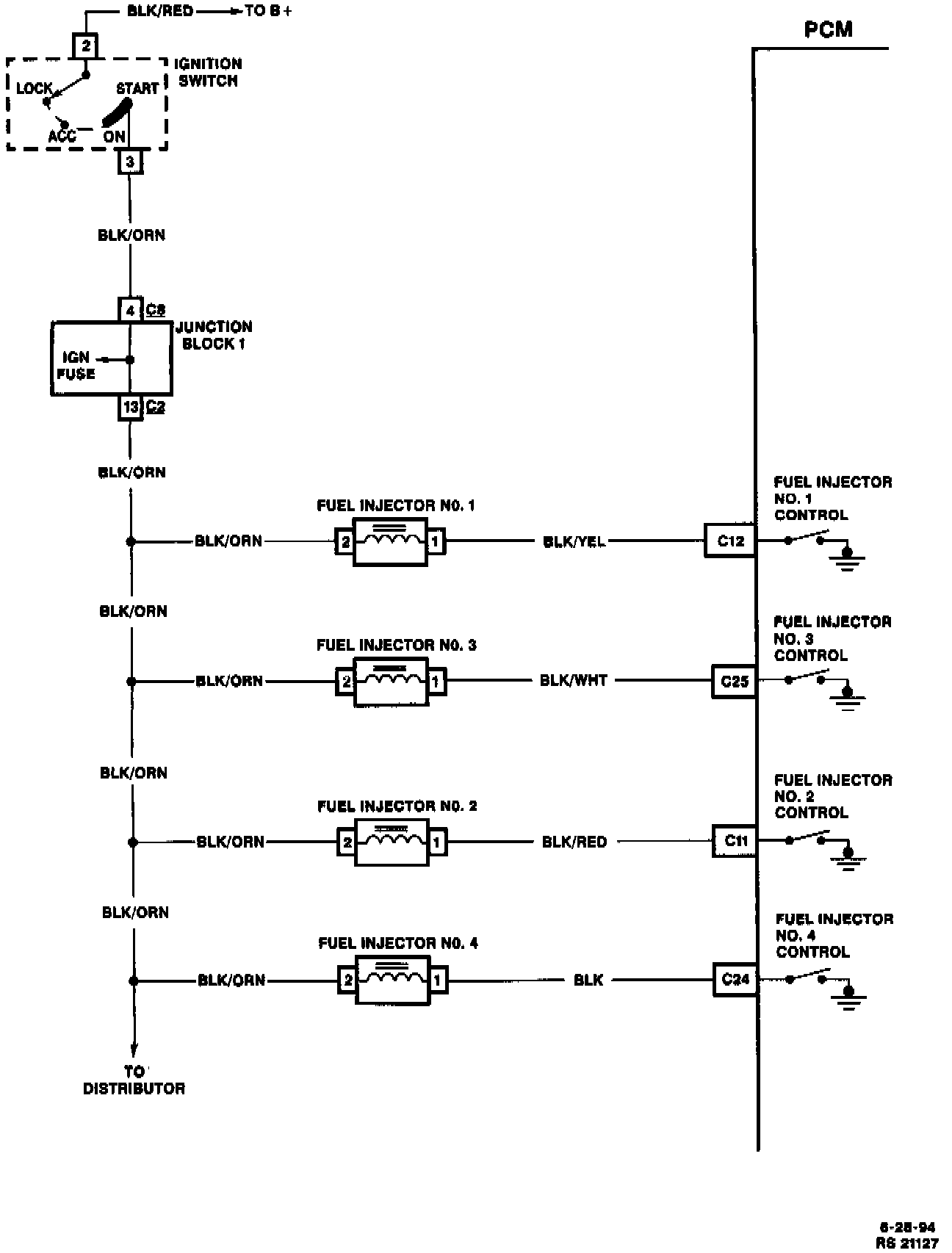

Electrical Schematic (5 of 9):
CONNECTOR CIRCUIT
C11 Fuel Injector No. 2 Control
C12 Fuel Injector No. 1 Control
C24 Fuel Injector No. 4 Control
C25 Fuel Injector No. 3 Control
Electrical Schematic (6 of 9):
CONNECTOR CIRCUIT
A11 Crank Signal
A22 Park/Neutral Signal
C3 Ignition Fail-Safe Signal Input
C4 Crank Angle Input
C5 Camshaft Position Input
C17 Crank Angle
C20 Ignition Signal
Electrical Schematic (7 of 9):
CONNECTOR CIRCUIT
B5 Exhaust Oxygen Concentration Secondary Input
B6 Exhaust Oxygen Concentration Input
B9 Sensor Ground
B10 EGR Temperature Input
C7 Sub HO2S Heater Control
C14 O2S Ground
C23 EGR SV Valve Control

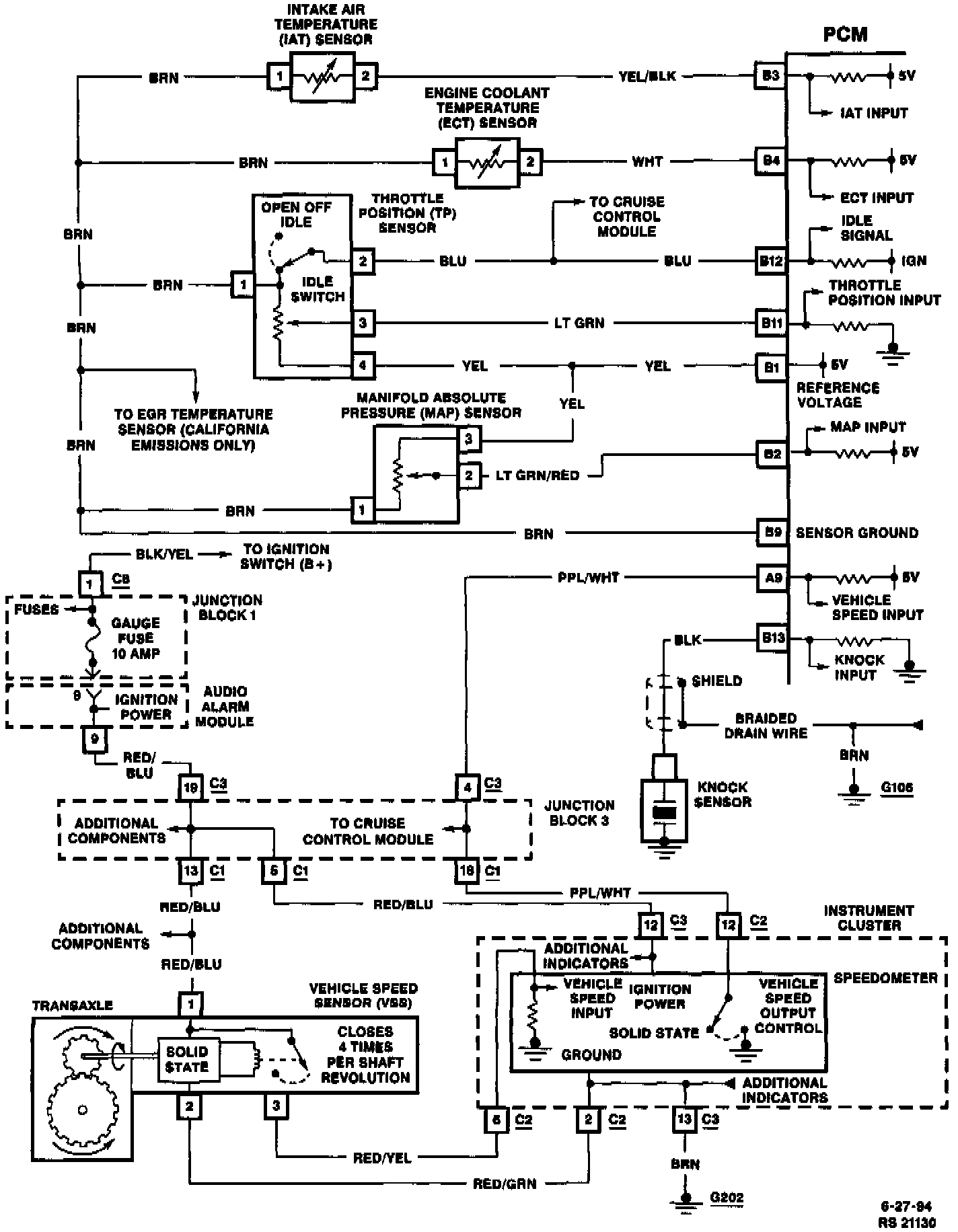

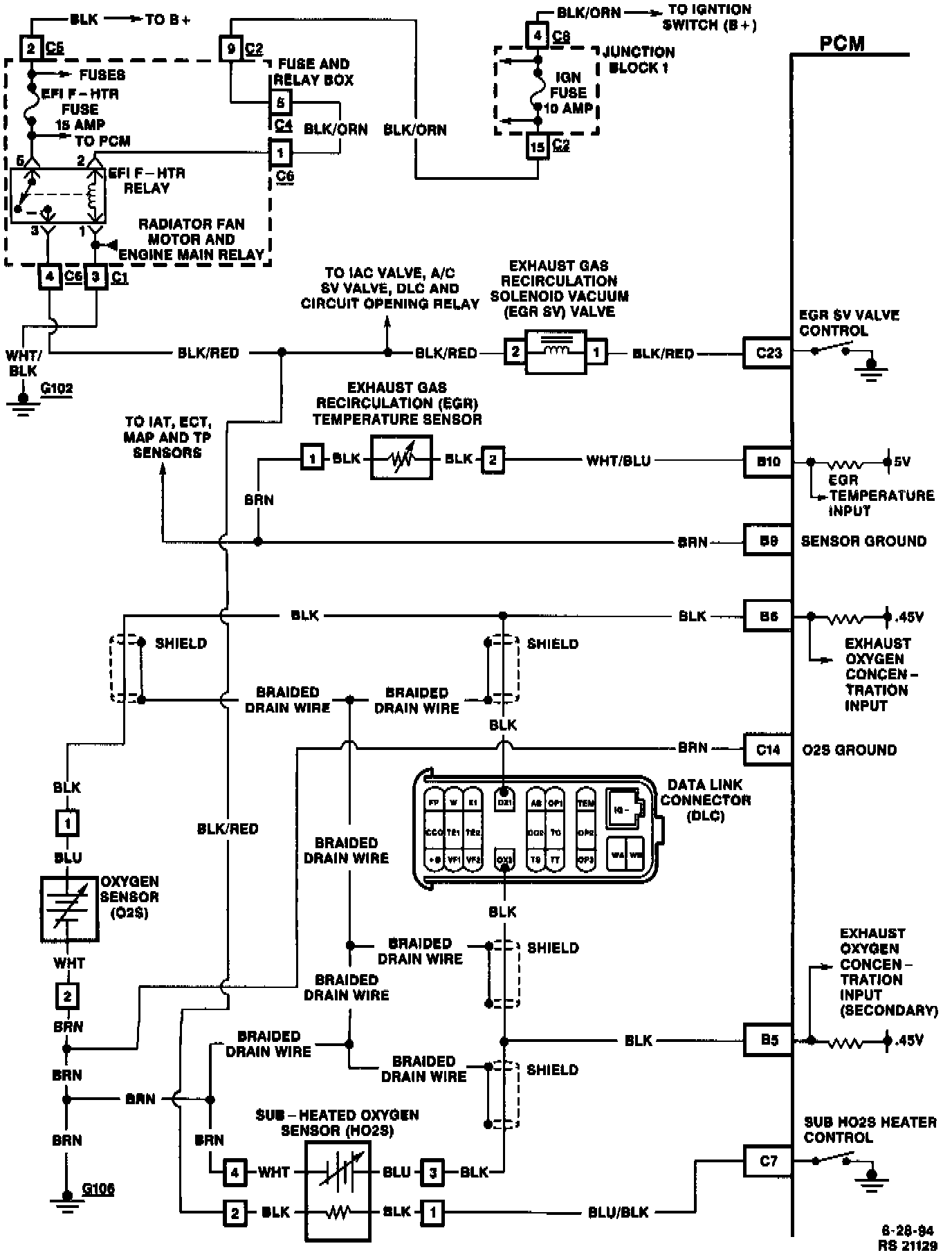

Electrical Schematic (8 of 9):
CONNECTOR CIRCUIT
A9 Vehicle Speed Input
B1 5V Reference Voltage
B2 MAP Input
B3 IAT Input
B4 ECT Input
B9 Sensor Ground
B11 Throttle Position Input
B12 Idle Input
B13 Knock Input

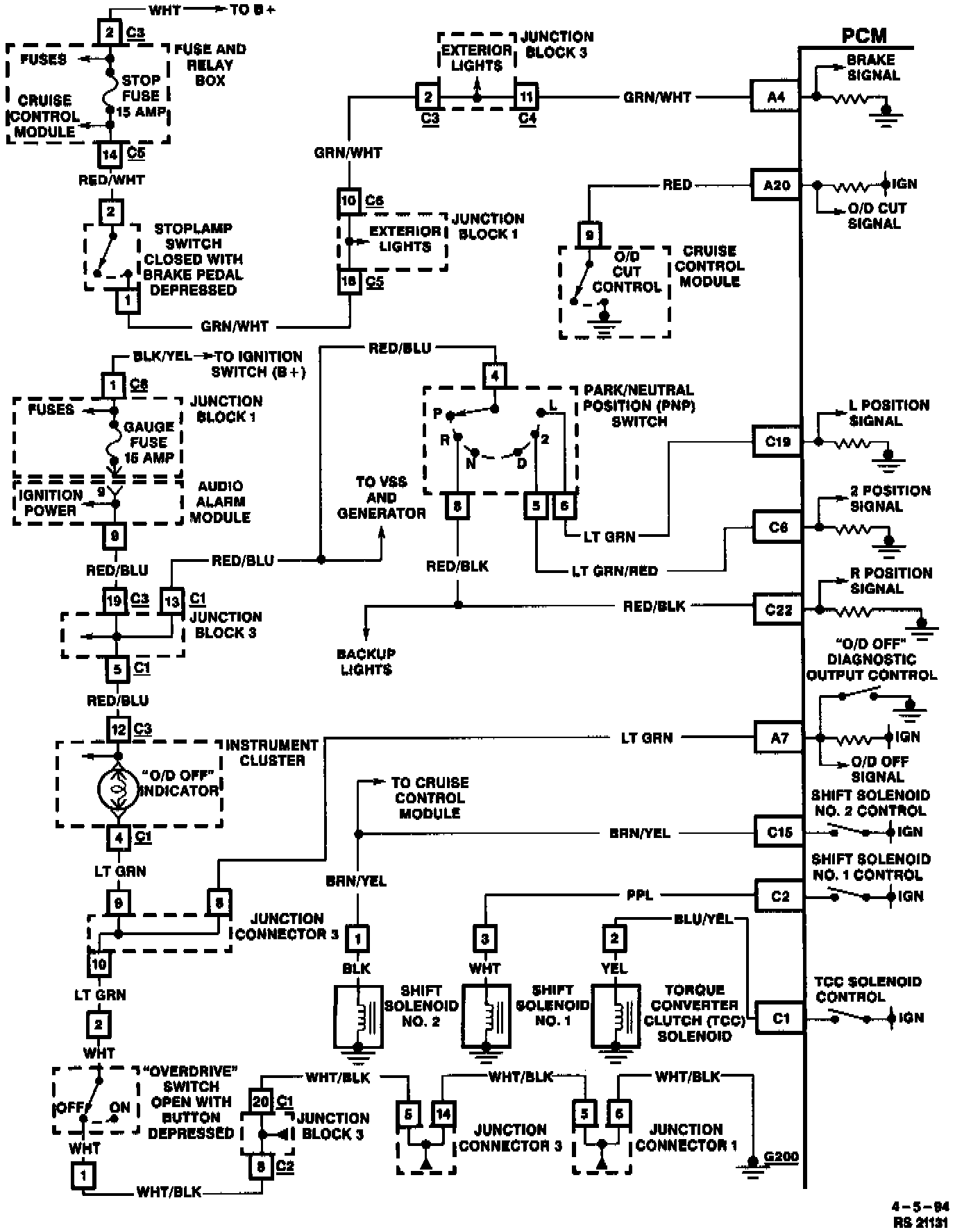

Electrical Schematic (9 of 9):
CONNECTOR CIRCUIT
A4 Brake Signal
A7 O/D Off Diagnostic Output Control
A20 O/D Signal
C1 TCC Solenoid Control
C2 Shift Solenoid No. 1 Control
C6 2 Position Signal
C15 Shift Solenoid No. 2 Control
C19 L Position Signal
C22 R Position Signal
