Electrical Diagrams

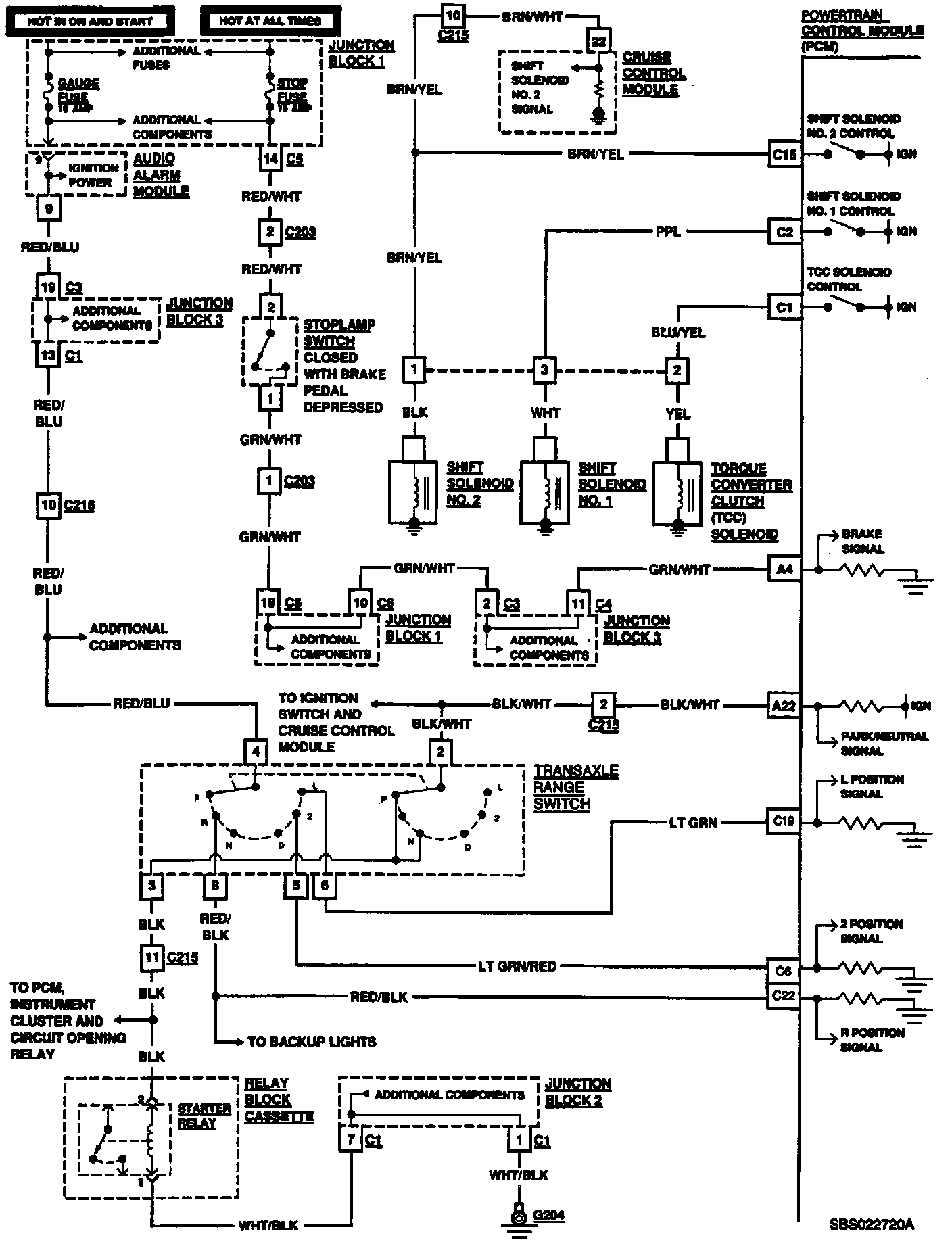

Automatic Transaxle Controls (Part 1 Of 2):

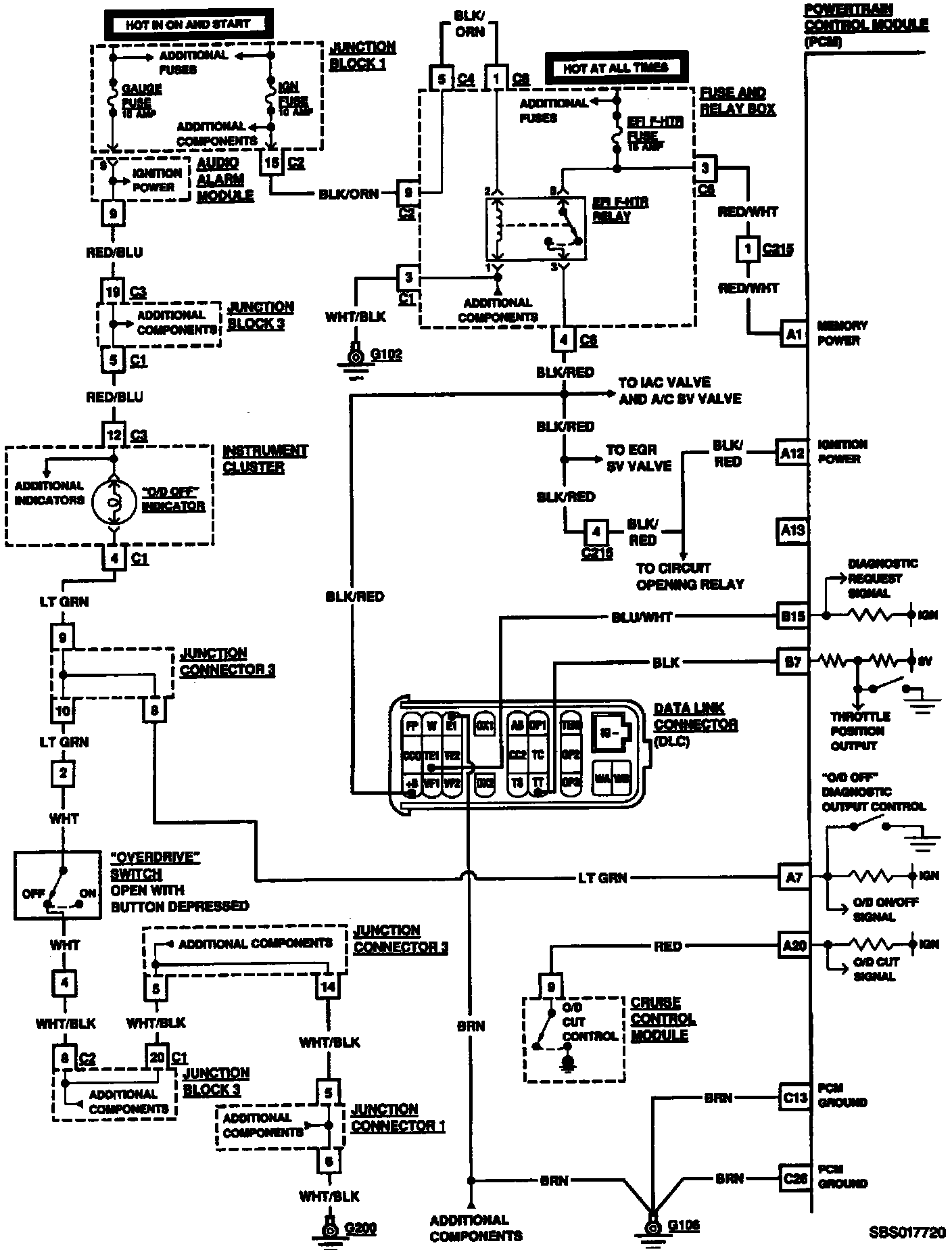

Automatic Transaxle Controls (Part 2 Of 2):

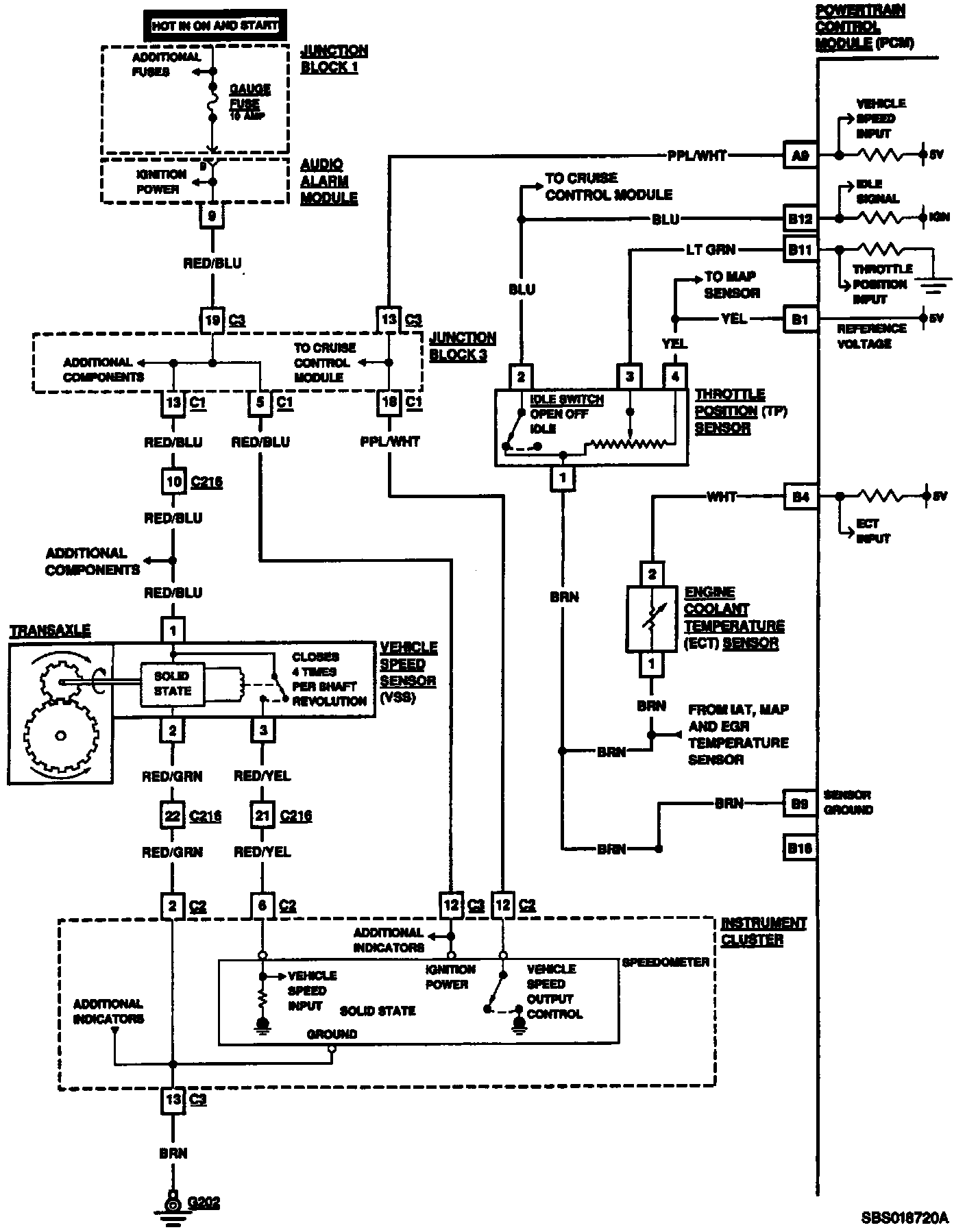

Part (1of 3):



Part (2 Of 3):



Part (3 Of 3):
