Clutch: Service and Repair

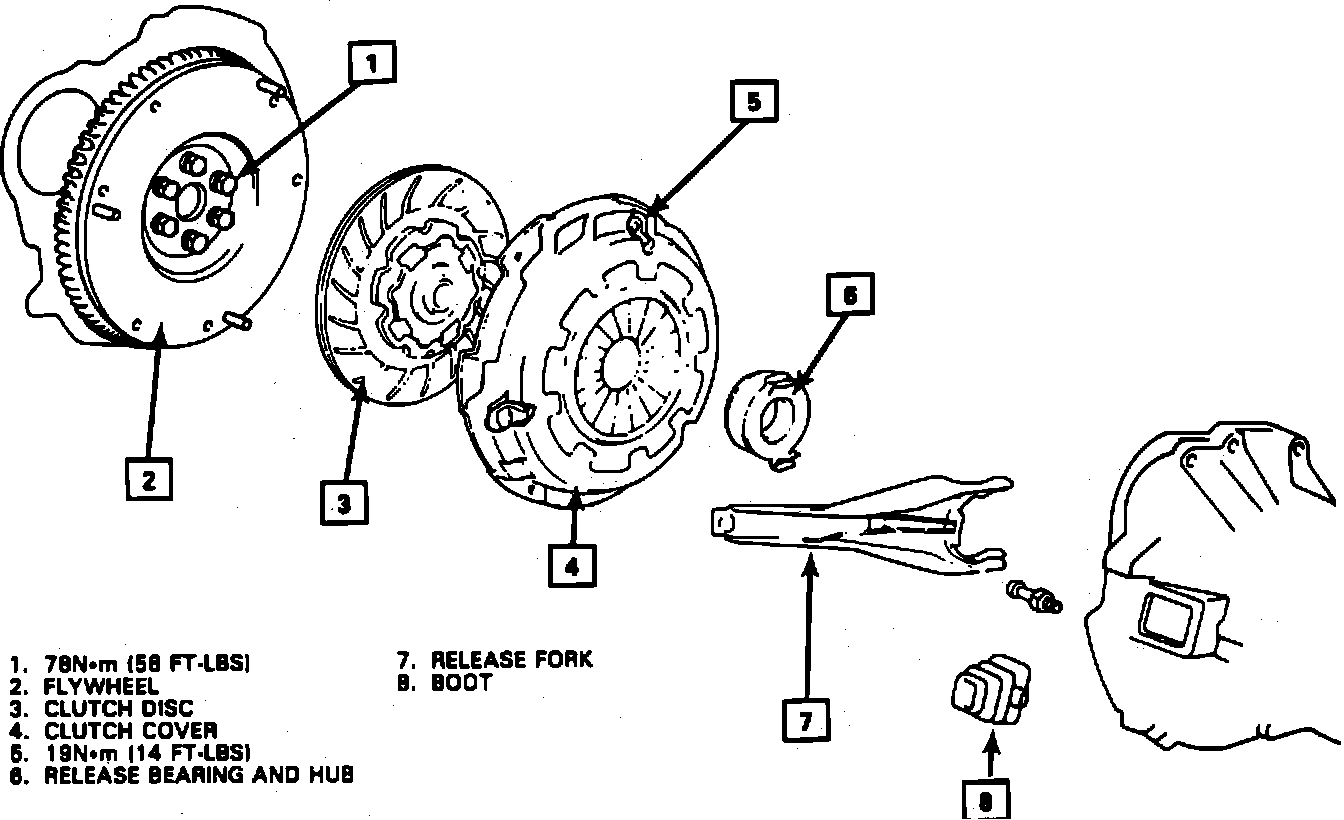

Fig. 2 Clutch Assembly:

1. Remove transaxle assembly from vehicle.
2. Loosen each set bolt one turn at a time until spring tension is released.
3. Remove attaching bolts and pull off clutch assembly, Fig. 2.
4. Remove release bearing fork and boot from the transaxle.
5. Reverse procedure to install. Torque bolts to specifications.
