Home >> Geo >> 1997 >> Metro L4-079 1.3L VIN 9 TBI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Component >> Junction Block C3

Junction Block C3

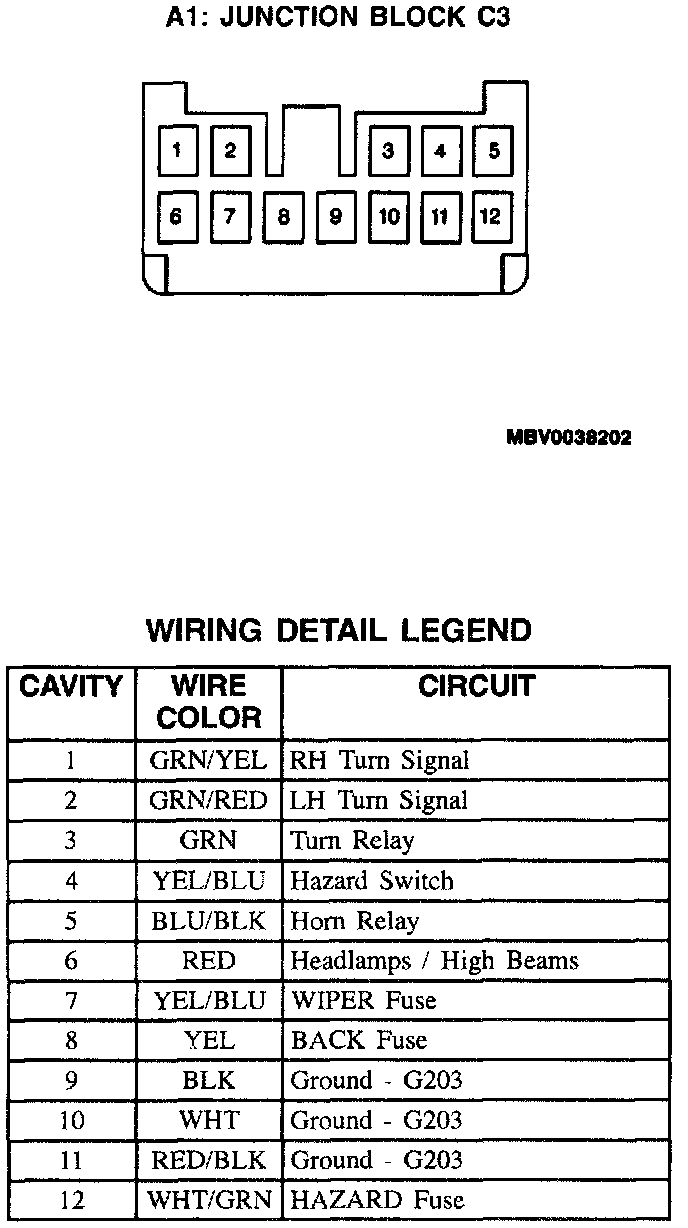

A1: Junction Block C3:
