1997
>>
Metro L4-079 1.3L VIN 9 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Component
>>
Junction Block C6
Junction Block C6

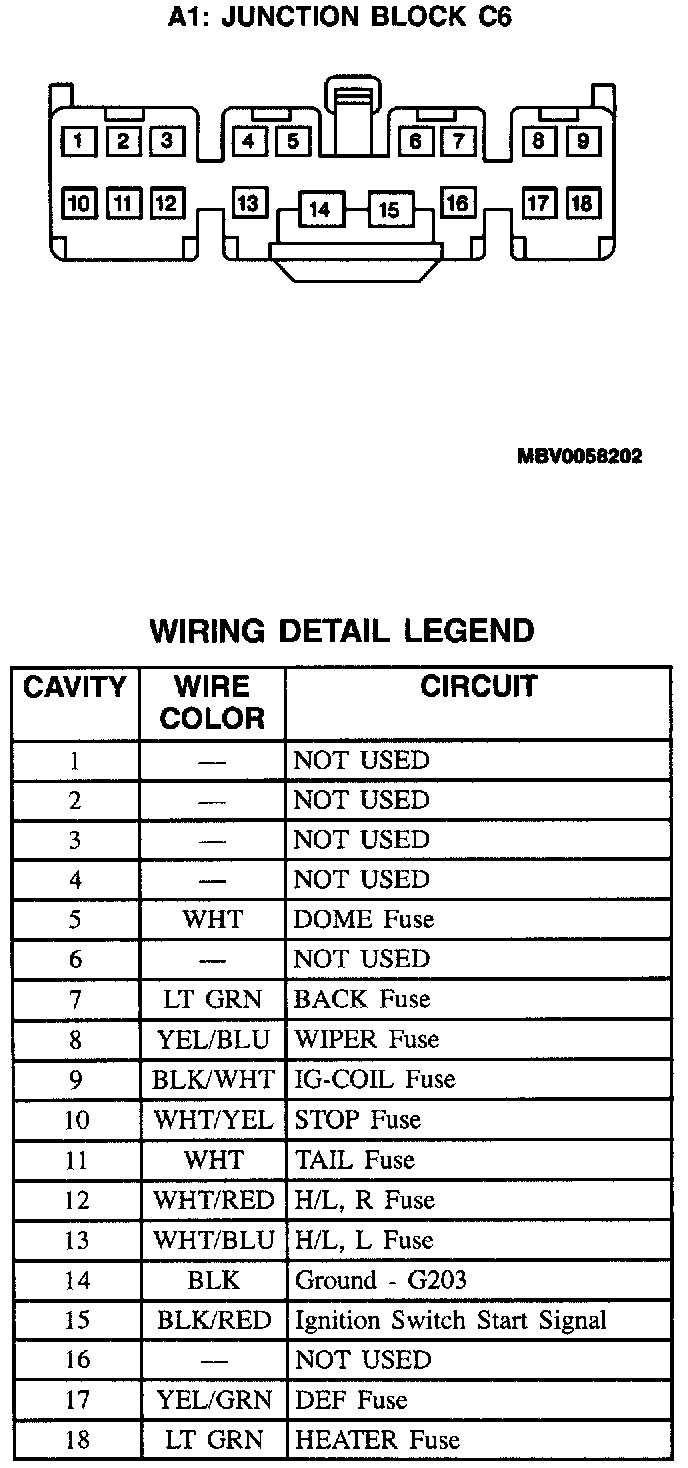

A1: Junction Block C6:
