Home >> Geo >> 1997 >> Metro L4-079 1.3L VIN 9 TBI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Starter Motor >> Starter Motor Assembly-Auto Transaxle Equipped Vehicles

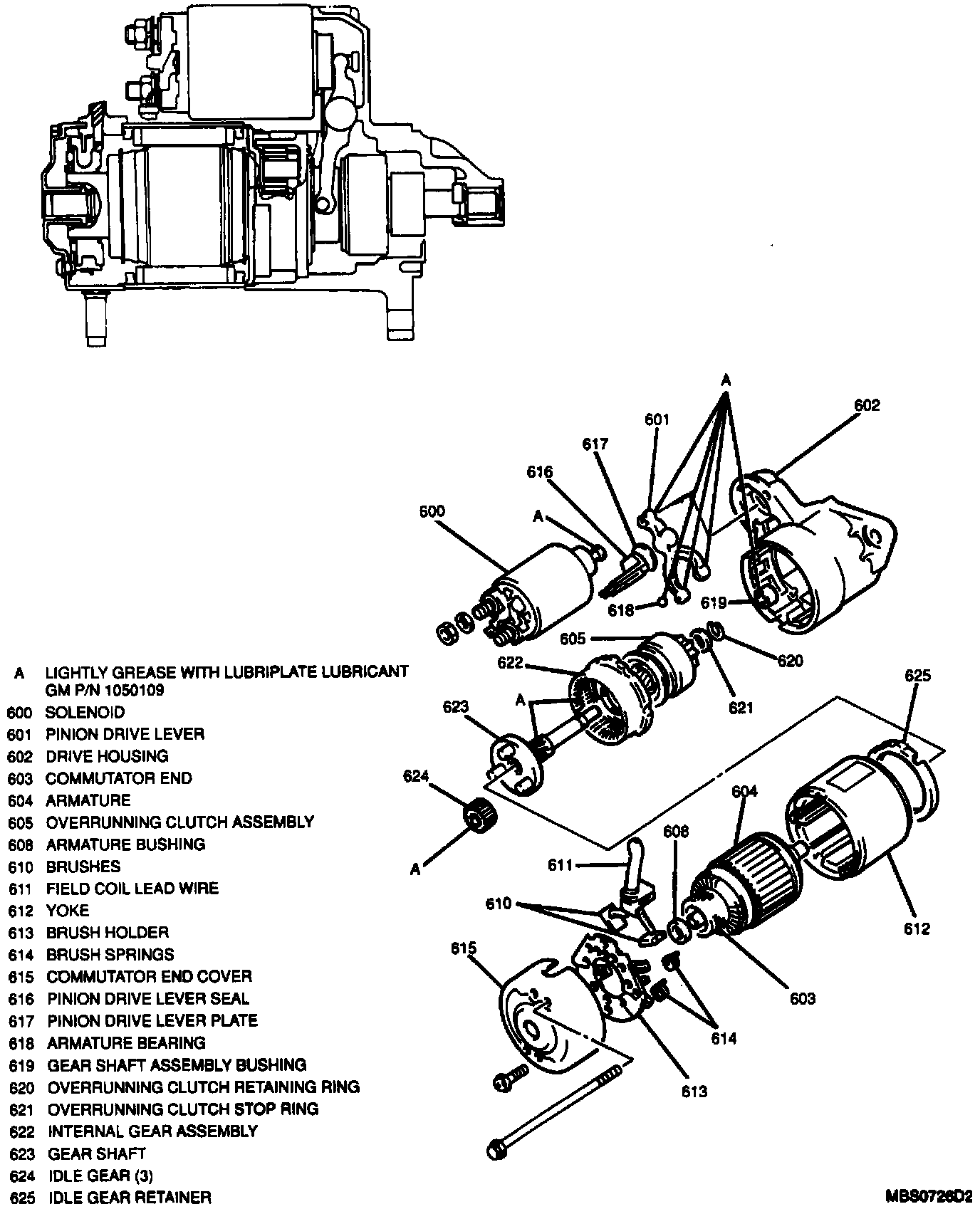

Starter Motor Assembly-Auto Transaxle Equipped Vehicles

Starter Motor Assembly-Automatic Trasaxle Equipped Vehicles:
