Compressor Drive Belt Inspection & Adjustment

Compressor Drive Belt Alignment:

Checking Drive Belt Tension:

Compressor Drive Belt Adjustment:

Routine Inspection of the compressor drive belt may reveal small cracks in the belt ribs. The technician must decide whether or not these cracks are serious enough to impair belt performance, requiring belt replacement. If any sections of the belt are missing, the belt should be replaced immediately.

1. Inspect the belt for proper alignment on the compressor and the crankshaft drive pulley.

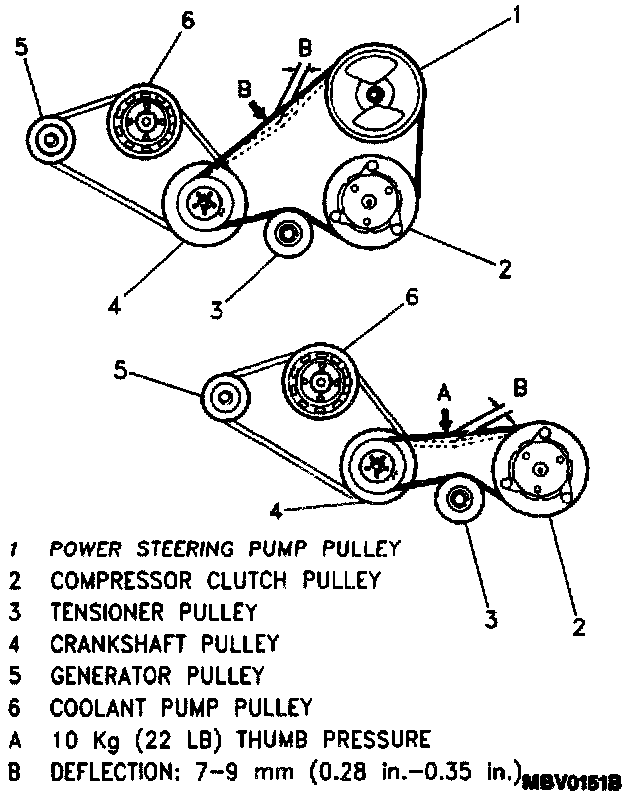

2. Check the compressor drive belt tension using thumb pressure and adjust if necessary to specification.
3. To adjust belt tension, loosen the idler pulley locknut, turn the idle pulley adjusting bolt.
4. Secure idle pulley locknut.

Tighten

^ Idler pulley locknut to 44.1-49 N.m. (32.4-36 lb. ft.).
