Home >> Geo >> 1997 >> Metro L4-079 1.3L VIN 9 TBI >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lamps

Interior Lamps

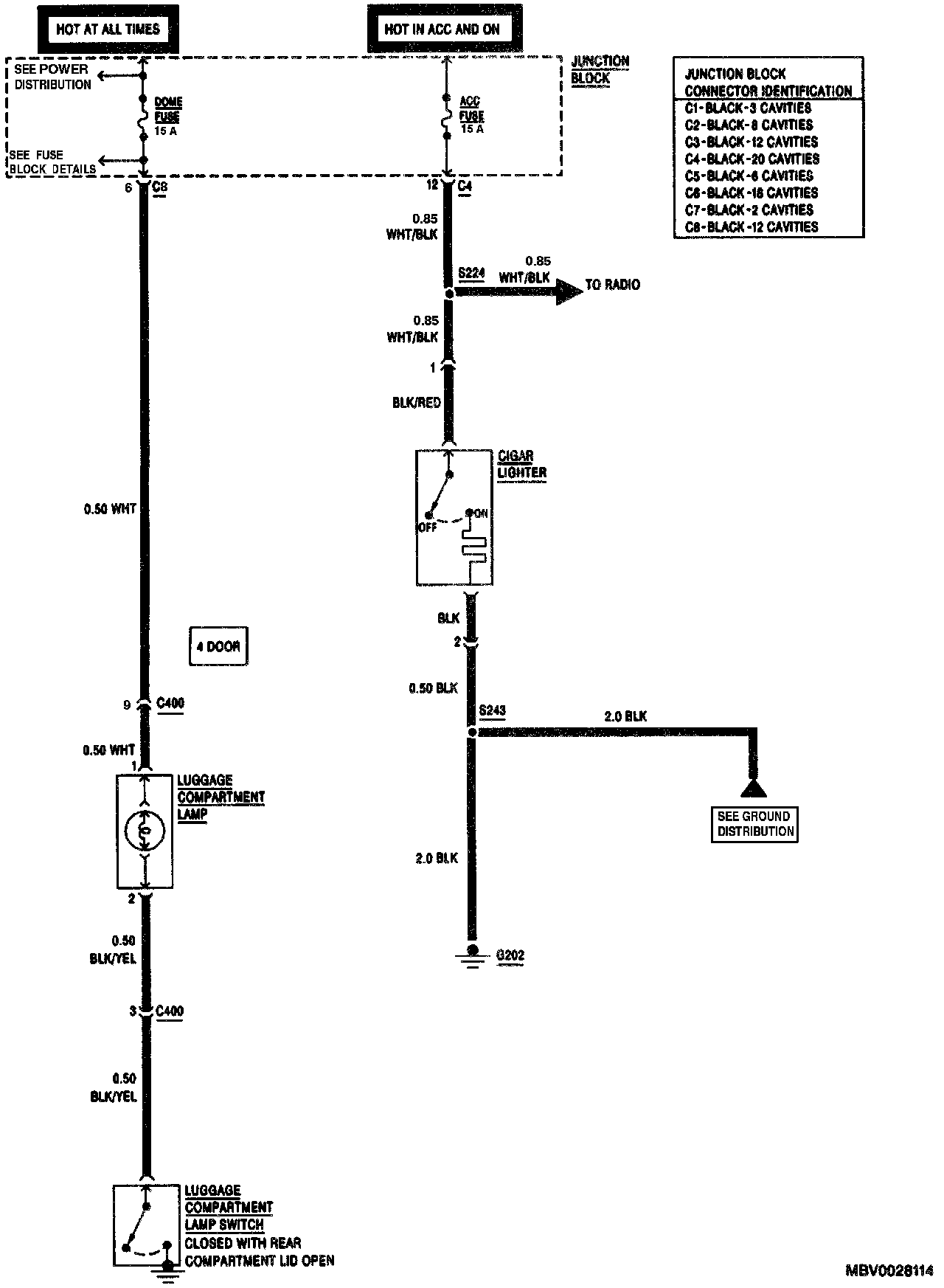

Interior Lights (Part 1 Of 2):



Interior Lights (Part 2 Of 2):
